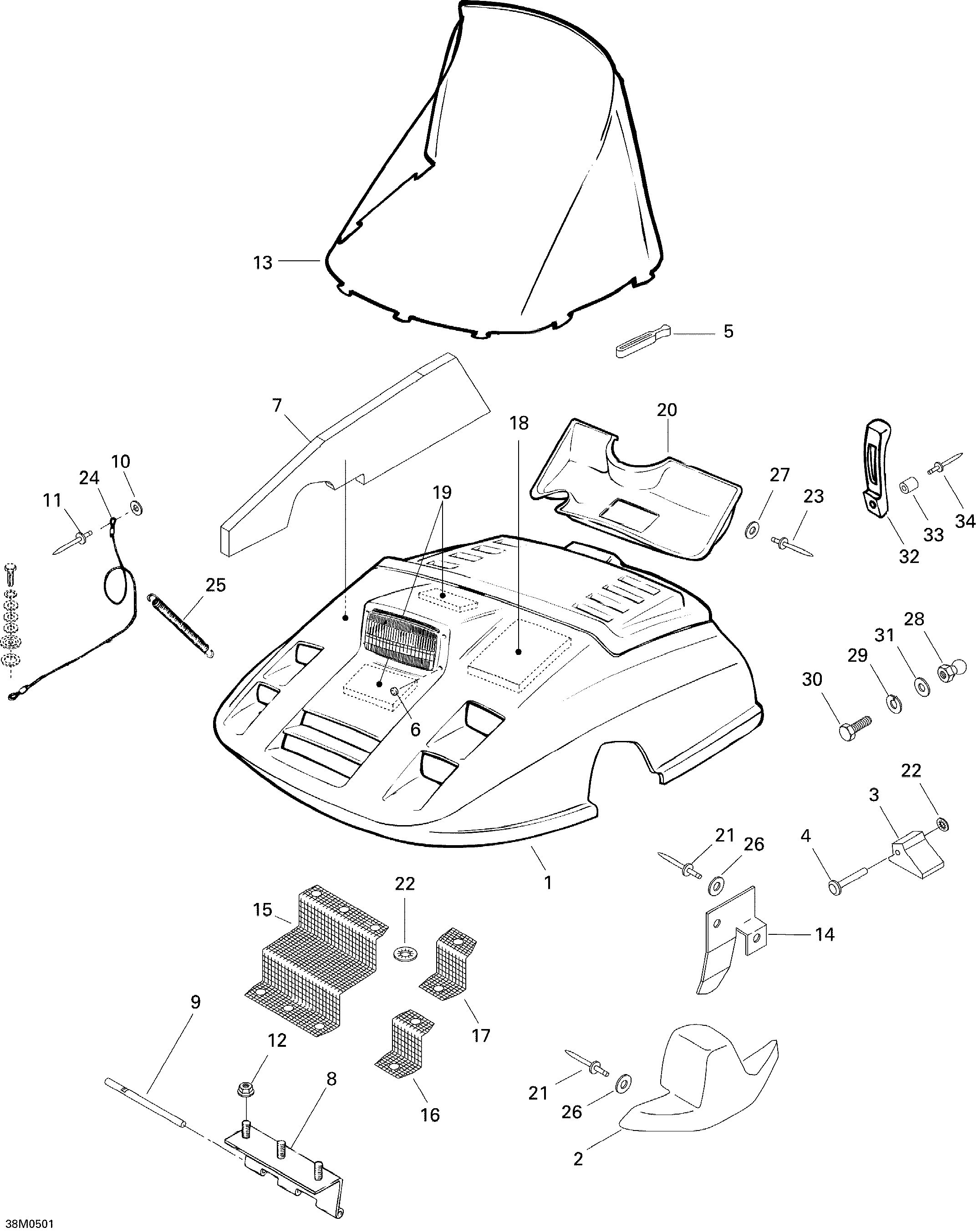

09- Hood для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1517302725 Black Hood. CB-160Black Hood. CB-160
-
1572048102 Yellow Hood. CB-190Yellow Hood. CB-190
-
2572038800 LH Hood MouldingLH Hood Moulding
-
2572038900 RH Hood MouldingRH Hood Moulding
-
3570038700 Hood GuideHood Guide
-
4390907000 Steel RivetSteel Rivet
-
5570023800 Windshield Latch. TROUSSEWindshield Latch. TROUSSE
-
6414436900 Snap Cap (Black). CB-160Snap Cap (Black). CB-160
-
6414768500 Snap Cap (Yellow). CB-190Snap Cap (Yellow). CB-190
-
7517302204 RH FoamRH Foam
-
7414867100 LH FoamLH Foam
-
8517182200 Welded HingeWelded Hinge
-
9517279800 Pivot PinPivot Pin
-
10517124300 WasherWasher
-
11390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13414829400 WindshieldWindshield
-
14517261300 RH Hood GuideRH Hood Guide
-
14517251500 LH Hood GuideLH Hood Guide
-
15517251700 Paint Central Front GrillPaint Central Front Grill
-
16517251800 Front GrillFront Grill
-
17517270600 RH Up Side GrillRH Up Side Grill
-
17517270700 LH Up Side GrillLH Up Side Grill
-
18414829600 Side FoamSide Foam
-
19414829800 Front FoamFront Foam
-
20414804000 Air DuctAir Duct
-
21390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22389804300 Push NutPush Nut
-
23293150121 Pop Rivet 3/16'' (Black). CB-160Pop Rivet 3/16'' (Black). CB-160
-
23390400400 Pop Rivet 3/16'' (Yellow). CB-190Pop Rivet 3/16'' (Yellow). CB-190
-
24414581400 Retainer CableRetainer Cable
-
25414763300 SpringSpring
-
26517225900 Flat WasherFlat Washer
-
27517225900 Flat WasherFlat Washer
-
28517245800 KnobKnob
-
29234151401 Lock Washer 5 mmLock Washer 5 mm
-
30207151444 Hex Screw M5 X 14Hex Screw M5 X 14
-
31391301700 Flat WasherFlat Washer
-
32570025900 Black LatchBlack Latch
-
33517245900 BushingBushing
-
34293150108 Pop Rivet 3/16''Pop Rivet 3/16''
