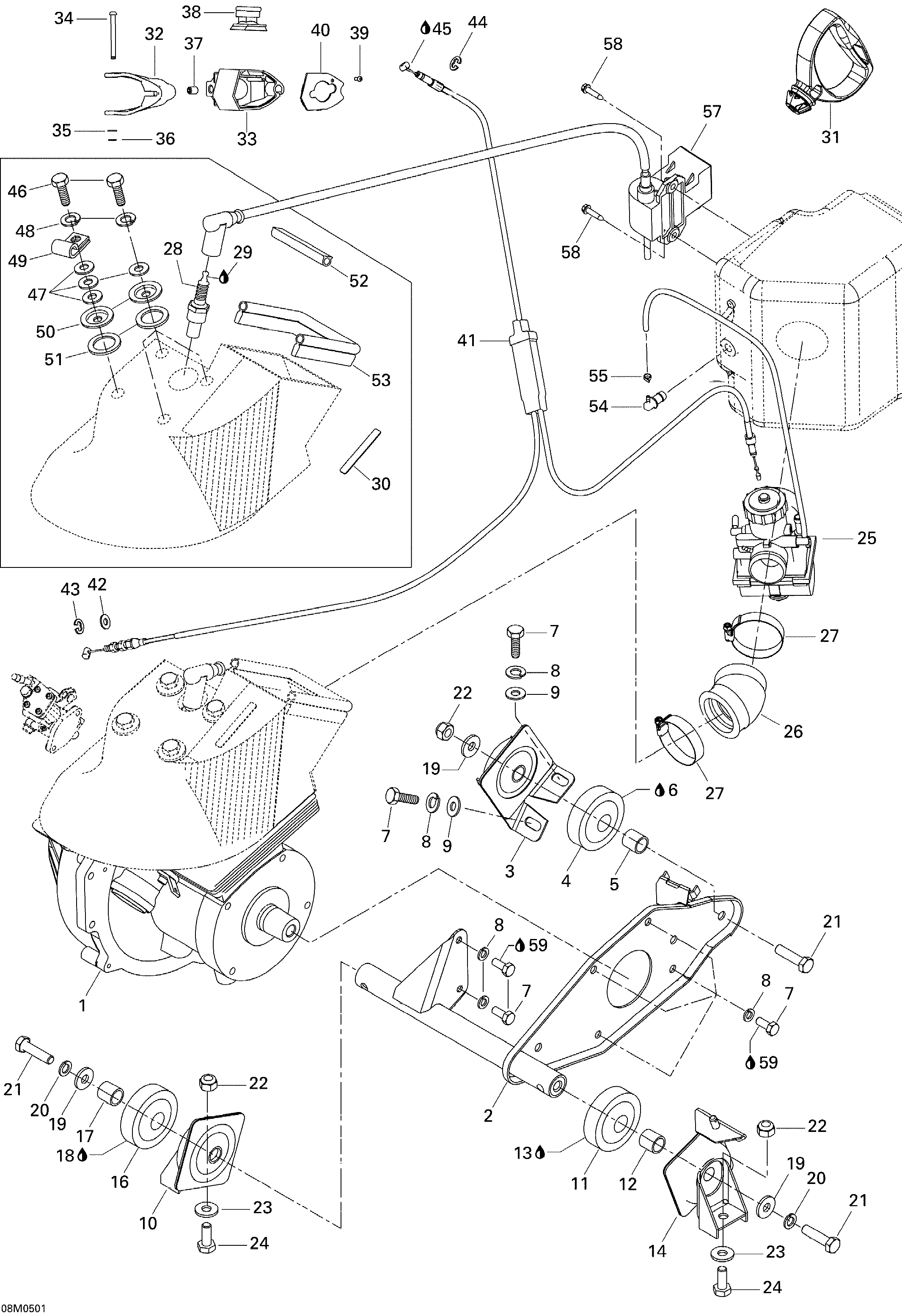

01- Engine And Engine Support для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1400206003 Engine 277Engine 277
-
2512059034 Engine Support PaintEngine Support Paint
-
3512050400 Welded SupportWelded Support
-
4570126800 Rubber Mount. Includes item 4 and 5Rubber Mount. Includes item 4 and 5
-
5517167100 BushingBushing
-
6293550030 GreaseGrease
-
7207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
8234181401 Lock Washer M8Lock Washer M8
-
9224081201 Flat WasherFlat Washer
-
10512048300 R.h. Welded SupportR.h. Welded Support
-
11570126800 Rubber Mount. Includes item 11 and 12Rubber Mount. Includes item 11 and 12
-
12517167100 BushingBushing
-
13293550030 GreaseGrease
-
14512048400 L.h. SupportL.h. Support
-
15414822300 Clevis PinClevis Pin
-
16570126800 Rubber Mount. Includes item 16 and 17Rubber Mount. Includes item 16 and 17
-
17517167100 BushingBushing
-
18293550030 GreaseGrease
-
19506063100 WasherWasher
-
20234101402 Lock Washer M10Lock Washer M10
-
21207104044 Hex. Cap Screw M10 X 40Hex. Cap Screw M10 X 40
-
22233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23732900051 Flat WasherFlat Washer
-
24207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
25403138753 Carburetor Vm-34Carburetor Vm-34
-
26570025400 Rubber FlangedRubber Flanged
-
27408801900 Tridon ClampTridon Clamp
-
28414961100 Spark Plug (NGK Br9Es)Spark Plug (NGK Br9Es)
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30516000986 Spark Plug DecalSpark Plug Decal
-
31572084400 Starter GripStarter Grip
-
32512059623 Heat Throttle Handle 34 mmHeat Throttle Handle 34 mm
-
33512059334 Throttle Handle HousingThrottle Handle Housing
-
34414438700 Lever PinLever Pin
-
35234051600 Flat Washer M5Flat Washer M5
-
36414439000 CirclipCirclip
-
37414440800 Set Screw M8 X 10Set Screw M8 X 10
-
38515175410 Kill SwitchKill Switch
-
39250000022 Phillips ScrewPhillips Screw
-
40512059507 PlatePlate
-
41512059614 Throttle CableThrottle Cable
-
42234081100 Flat Washer 8 mmFlat Washer 8 mm
-
43414753500 CirclipCirclip
-
44293370020 CirclipCirclip
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
47234081410 Flat Washer 8 mmFlat Washer 8 mm
-
48420945752 Lock Washer 8 mmLock Washer 8 mm
-
49414176000 Clip (Cable)Clip (Cable)
-
50420827140 Cowl CoverCowl Cover
-
51420960860 Rubber WasherRubber Washer
-
52293250047 Neoprene SealNeoprene Seal
-
53293200093 Neoprene SealNeoprene Seal
-
54414814100 Male ConnectorMale Connector
-
55293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
56413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
57515175459 Calibrated ModuleCalibrated Module
-
58365901400 Screw-hex.taping 12Screw-hex.taping 12
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
