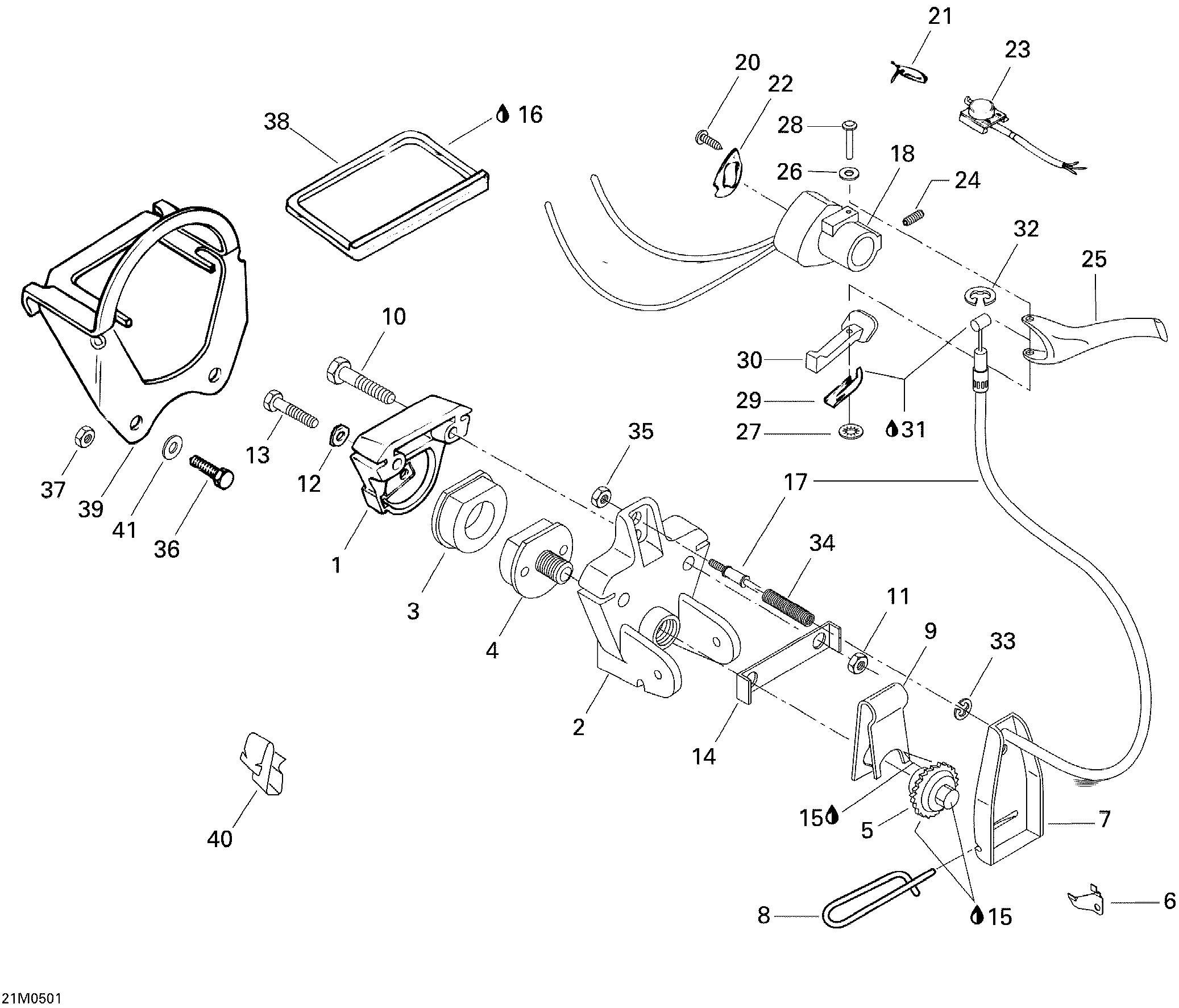

06- Brake для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1414466800 AnvilAnvil
-
2507026600 Caliper MachinedCaliper Machined
-
3860700100 Brake PadBrake Pad
-
4860700700 Brake Pad KitBrake Pad Kit
-
5507032310 Welded Ratchet WheelWelded Ratchet Wheel
-
6507009400 Ratchet SpringRatchet Spring
-
7507021500 LeverLever
-
8507032306 Hair PinHair Pin
-
9507020200 Release SpringRelease Spring
-
10207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12507023600 Tab LockTab Lock
-
13207151444 Hex Screw M5 X 14Hex Screw M5 X 14
-
14507020400 Lock-TabLock-Tab
-
15293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
17507032347 Brake CableBrake Cable
-
18507032313 Brake Housing Ass'Y. Included Items 18 to 24Brake Housing Ass'Y. Included Items 18 to 24
-
19572086500 Brake HousingBrake Housing
-
20211000098 ScrewScrew
-
21507032318 Brake SwitchBrake Switch
-
22507032328 PlatePlate
-
23507032314 Dimmer SwitchDimmer Switch
-
24414440800 Set Screw M8 X 10Set Screw M8 X 10
-
25572025700 Brake HandleBrake Handle
-
26414729400 Wave Spring Washer MetalcraftWave Spring Washer Metalcraft
-
27389804300 Push NutPush Nut
-
28517229400 PinPin
-
29507032317 SpringSpring
-
30572025200 Brake LeverBrake Lever
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32414274500 CirclipCirclip
-
33371901300 CirclipCirclip
-
34414460600 SpringSpring
-
35232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
36207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38572013500 SliderSlider
-
39507032201 Welded Caliper SupportWelded Caliper Support
-
40414227300 ClipClip
-
41234061410 Flat Washer 6 mmFlat Washer 6 mm
