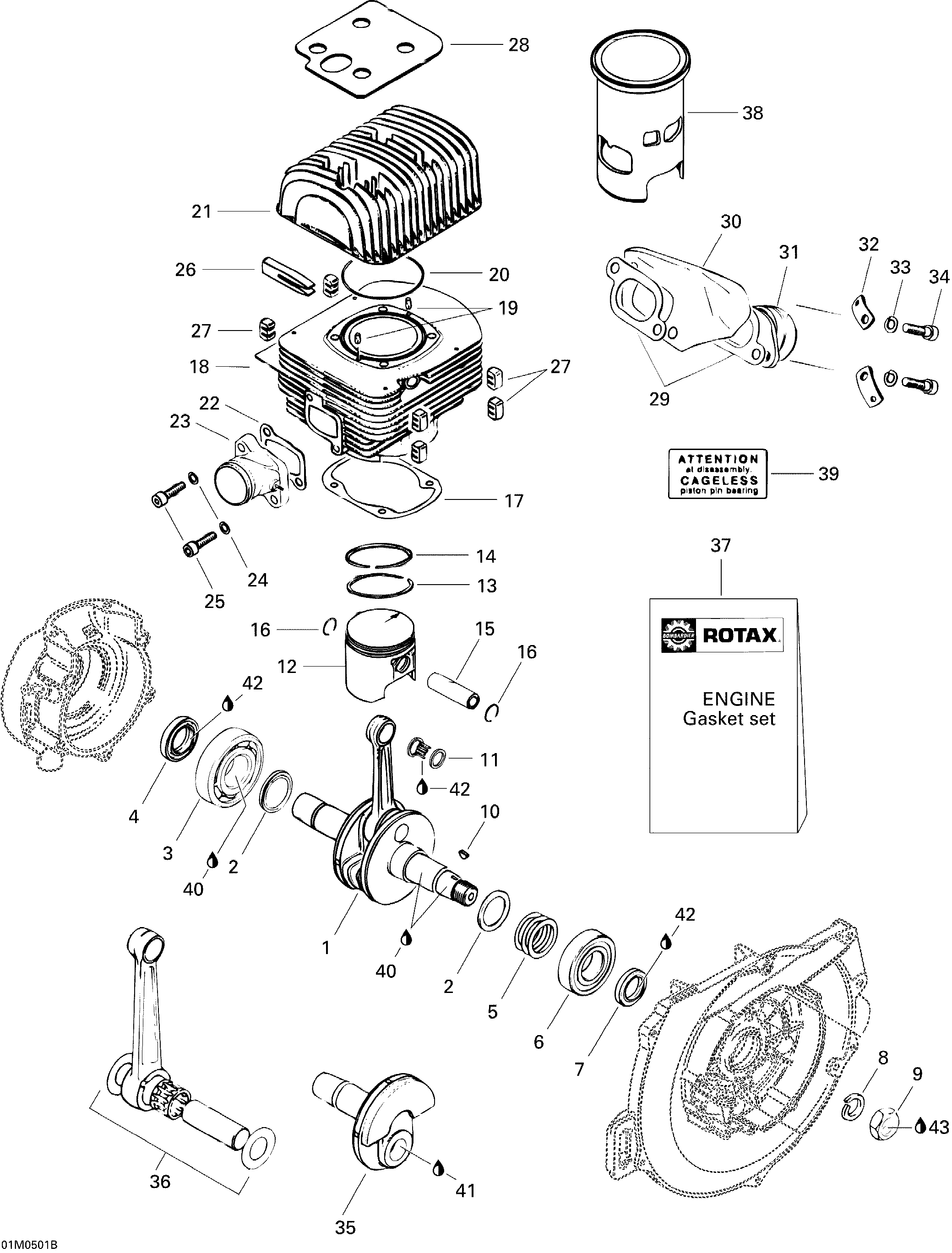

01- Crankshaft And pistons для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1420995301 CrankshaftCrankshaft
-
2420827440 Distance RingDistance Ring
-
3420932571 Ball BearingBall Bearing
-
4420850050 Oil SealOil Seal
-
5420944582 ShimShim
-
5420944583 ShimShim
-
5420944584 ShimShim
-
5420944586 ShimShim
-
6420932581 Ball BearingBall Bearing
-
7420230425 Oil SealOil Seal
-
8420945759 Lock Washer M22Lock Washer M22
-
9420842234 Hex Nut M22Hex Nut M22
-
10420246055 Woodruff KeyWoodruff Key
-
11420832320 Needle BearingNeedle Bearing
-
12420888175 Piston Ass'Y 71.92 mmPiston Ass'Y 71.92 mm
-
13420915850 Rectangular Ring 72 mmRectangular Ring 72 mm
-
14420815200 Semi-Trapez Ring 72.0 mmSemi-Trapez Ring 72.0 mm
-
12420888176 Oversize Piston Ass'Y 72.17mmOversize Piston Ass'Y 72.17mm
-
13420915851 Rectangular Ring 72.25 mmRectangular Ring 72.25 mm
-
14420815201 Semi-Trapez Ring 72.25 mmSemi-Trapez Ring 72.25 mm
-
12420888177 Oversize Piston Ass'Y 72.42 mmOversize Piston Ass'Y 72.42 mm
-
13420915852 Rectangular Ring 72.5 mmRectangular Ring 72.5 mm
-
14420815202 Semi-Trapez Ring 72.5 mmSemi-Trapez Ring 72.5 mm
-
15420916186 Gudgeon PinGudgeon Pin
-
16420945735 Piston CirclipPiston Circlip
-
17420831858 Gasket 0.4 mmGasket 0.4 mm
-
18420913219 Cylinder With SleeveCylinder With Sleeve
-
19420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
20293300026 O-RingO-Ring
-
21420823788 Cylinder HeadCylinder Head
-
22420831861 Intake GasketIntake Gasket
-
23420867408 Intake Socket Ass'YIntake Socket Ass'Y
-
24420945752 Lock Washer 8 mmLock Washer 8 mm
-
25205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
26420860100 Rubber FinRubber Fin
-
27420860097 Noise DamperNoise Damper
-
28420960130 Silent BlockSilent Block
-
29420831847 Gasket 1mmGasket 1mm
-
30420975720 Air DeflectorAir Deflector
-
31420978836 Exhaust SocketExhaust Socket
-
32420953170 Spring BracketSpring Bracket
-
33420945752 Lock Washer 8 mmLock Washer 8 mm
-
34205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
35420919951 PTO CrankshaftPTO Crankshaft
-
37420992068 Gasket KitGasket Kit
-
39420897280 Cageless LabelCageless Label
-
40293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
41413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42413707000 Molykote 111, 150 GMolykote 111, 150 G
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
