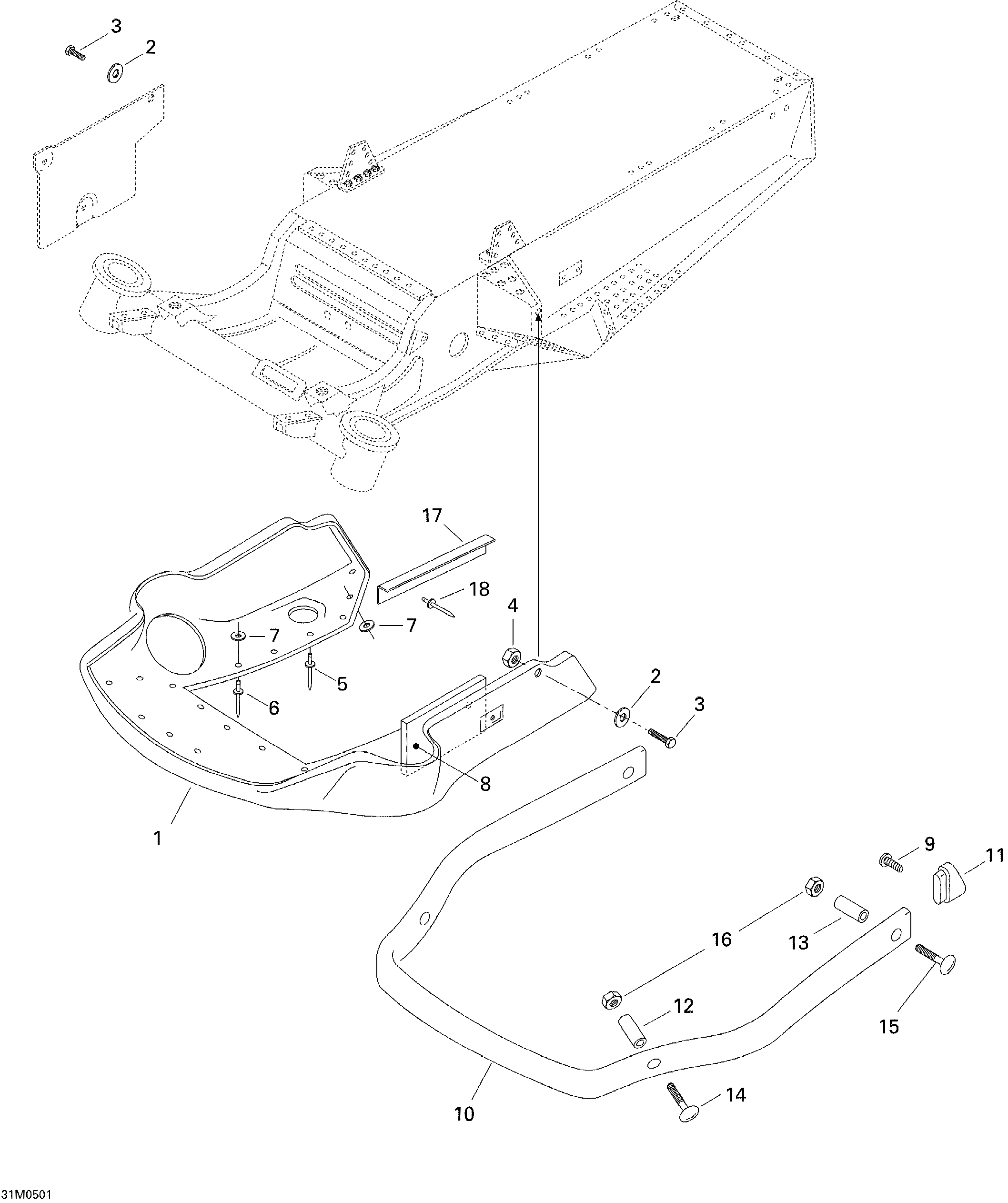

09- Bottom Pan для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1502006587 Bottom PanBottom Pan
-
2224061121 Flat WasherFlat Washer
-
3207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
8502006541 Side FoamSide Foam
-
9209640940 Tapping Screw M4.2x9.5Tapping Screw M4.2x9.5
-
10517248800 Paint BumperPaint Bumper
-
11572039300 Bumper CapBumper Cap
-
12517250600 Bushing. TROUSSEBushing. TROUSSE
-
13517250700 Bushing. TROUSSEBushing. TROUSSE
-
14207787541 Carriage Bolt M8 X 75Carriage Bolt M8 X 75
-
15207785541 Carriage Bolt M8 X 55Carriage Bolt M8 X 55
-
16232581414 Elastic Stop Nut M8. TROUSSEElastic Stop Nut M8. TROUSSE
-
17517259200 Paint ReinforcementPaint Reinforcement
-
18293150102 Rivet 3/16Rivet 3/16
