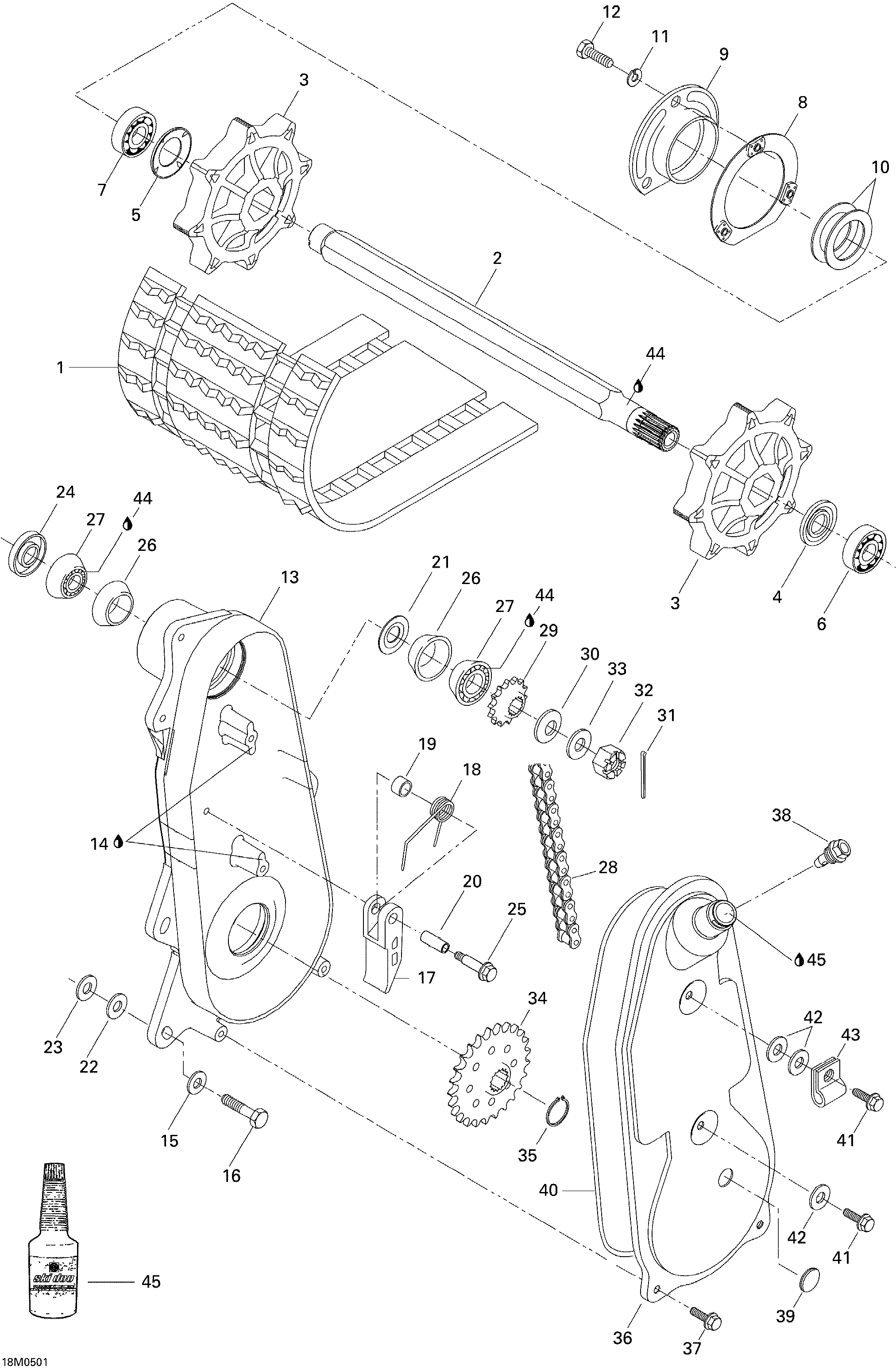

05- Transmission для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1504151833 Track Ass'y 15''x139''x0,7Track Ass'y 15''x139''x0,7
-
2504151800 Drive AxleDrive Axle
-
3504151817 Sprocket 8 ToothSprocket 8 Tooth
-
4504152076 Seal Oil Ass'YSeal Oil Ass'Y
-
5501017400 Bearing ProtectorBearing Protector
-
6504152006 Ball BearingBall Bearing
-
7503190795 Ball BearingBall Bearing
-
8501015200 Welded Retaining RingWelded Retaining Ring
-
9501019500 Bearing HousingBearing Housing
-
10501020500 WasherWasher
-
11234161471 Lock Washer 6 mmLock Washer 6 mm
-
12207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
13504088000 Machined Chain CaseMachined Chain Case
-
14293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
15506151245 WasherWasher
-
16207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
17572041600 Chain TensionerChain Tensioner
-
18414130600 SpringSpring
-
19504018200 SpacerSpacer
-
20504051600 SpacerSpacer
-
21504005800 Oil DeflectorOil Deflector
-
22504073700 WasherWasher
-
23250200001 Flat Washer 7/16Flat Washer 7/16
-
24406300600 Oil SealOil Seal
-
25210264080 Hex. Forming Screw M6x40Hex. Forming Screw M6x40
-
26405000300 Cup BearingCup Bearing
-
27405000400 Cone BearingCone Bearing
-
28412106300 Driving ChainDriving Chain
-
29504088500 Sprocket 14 ToothSprocket 14 Tooth
-
30414823700 WasherWasher
-
31371800800 Cotter PinCotter Pin
-
32232220413 Hex Castle Nut M12Hex Castle Nut M12
-
33504049500 Special WasherSpecial Washer
-
34504088600 Sprocket 25 ToothSprocket 25 Tooth
-
35371904900 External CirclipExternal Circlip
-
36504088100 Paint Chaincase CoverPaint Chaincase Cover
-
37210261680 Hex Forming Screw M6 X 16Hex Forming Screw M6 X 16
-
38572040600 BreatherBreather
-
39570040600 PlugPlug
-
40570045900 SealSeal
-
41210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
42234062410 Flat Washer 6 mmFlat Washer 6 mm
-
43414351600 Open ClampOpen Clamp
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
45413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
