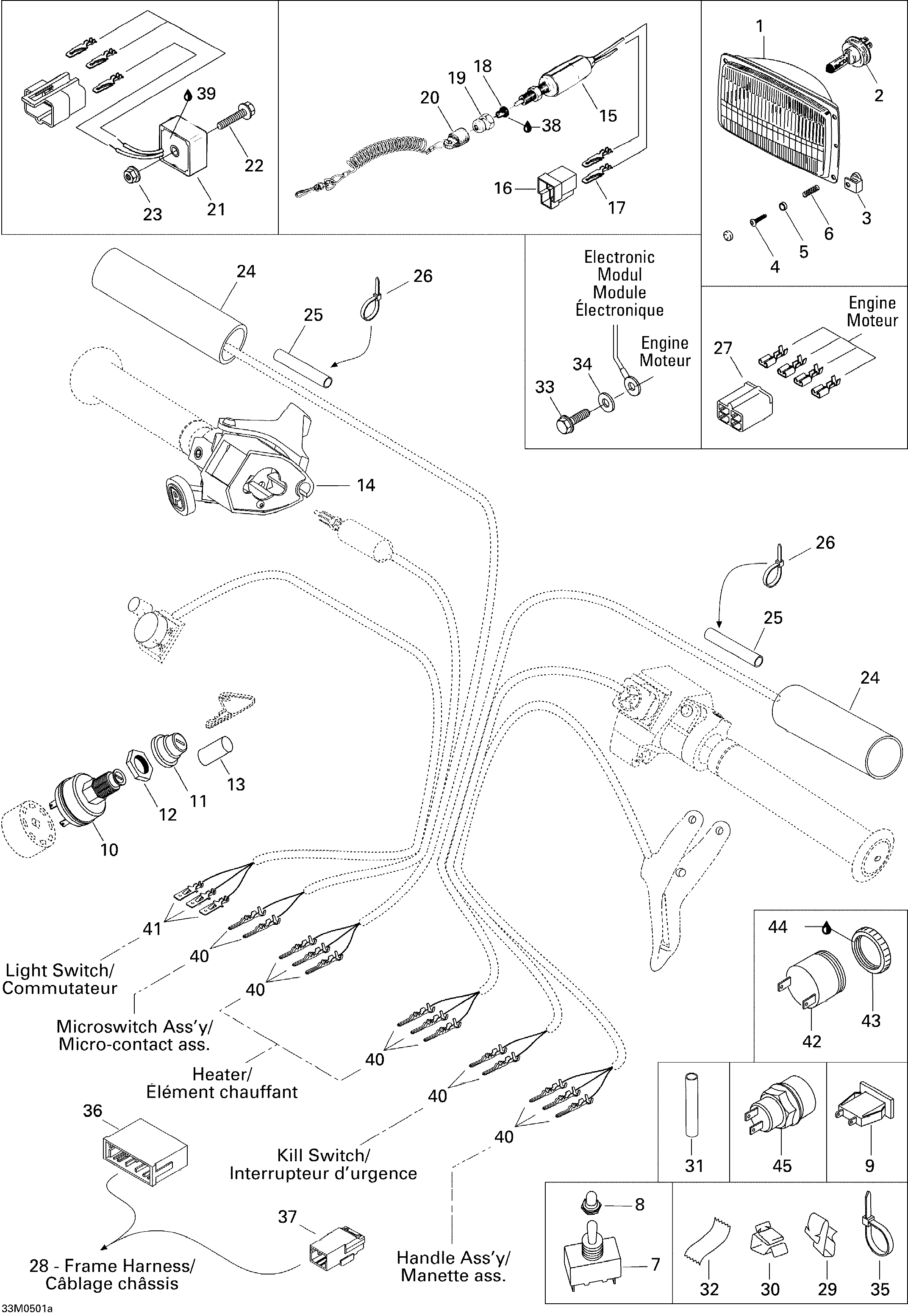

10- Electrical System для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1410606800 Halogene Headlamp Ass'yHalogene Headlamp Ass'y
-
2410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
3572378700 Protector NutProtector Nut
-
4243244040 Plastite Phillips Screw M4 X 40Plastite Phillips Screw M4 X 40
-
5414436800 Retainer CapRetainer Cap
-
6517166000 SpringSpring
-
7410107300 Switch (Heating Grip)Switch (Heating Grip)
-
8515175281 Switch CoverSwitch Cover
-
9410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
10410113601 Ignition SwitchIgnition Switch
-
12410112100 Face NutFace Nut
-
11570013700 Switch BootSwitch Boot
-
13415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
15515175571 Switch BrakeSwitch Brake
-
16409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
17409210000 Male TerminalMale Terminal
-
18570151100 Plunger CapPlunger Cap
-
19515145900 Switch NutSwitch Nut
-
20515151500 Cap Ass'YCap Ass'Y
-
21515163800 Voltage Redulator Ass'y. See 33M0501BVoltage Redulator Ass'y. See 33M0501B
-
22207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
23233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24515175657 Heating ElementHeating Element
-
25515175332 Low Temperature Tubing (vinyl)Low Temperature Tubing (vinyl)
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27409204900 Female HousingFemale Housing
-
28515175835 Frame Harness Ass'y. See 33M0501BFrame Harness Ass'y. See 33M0501B
-
29414095100 ClipClip
-
30414227300 ClipClip
-
31515175442 Tubing (6 mm)Tubing (6 mm)
-
32293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
33420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
34391301700 Flat WasherFlat Washer
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
37515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
40515175232 Male TerminalMale Terminal
-
41515175273 Male TerminalMale Terminal
-
42515175931 HornHorn
-
43414805101 Plastic NutPlastic Nut
-
44296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
45415101200 Reverse KnobReverse Knob
