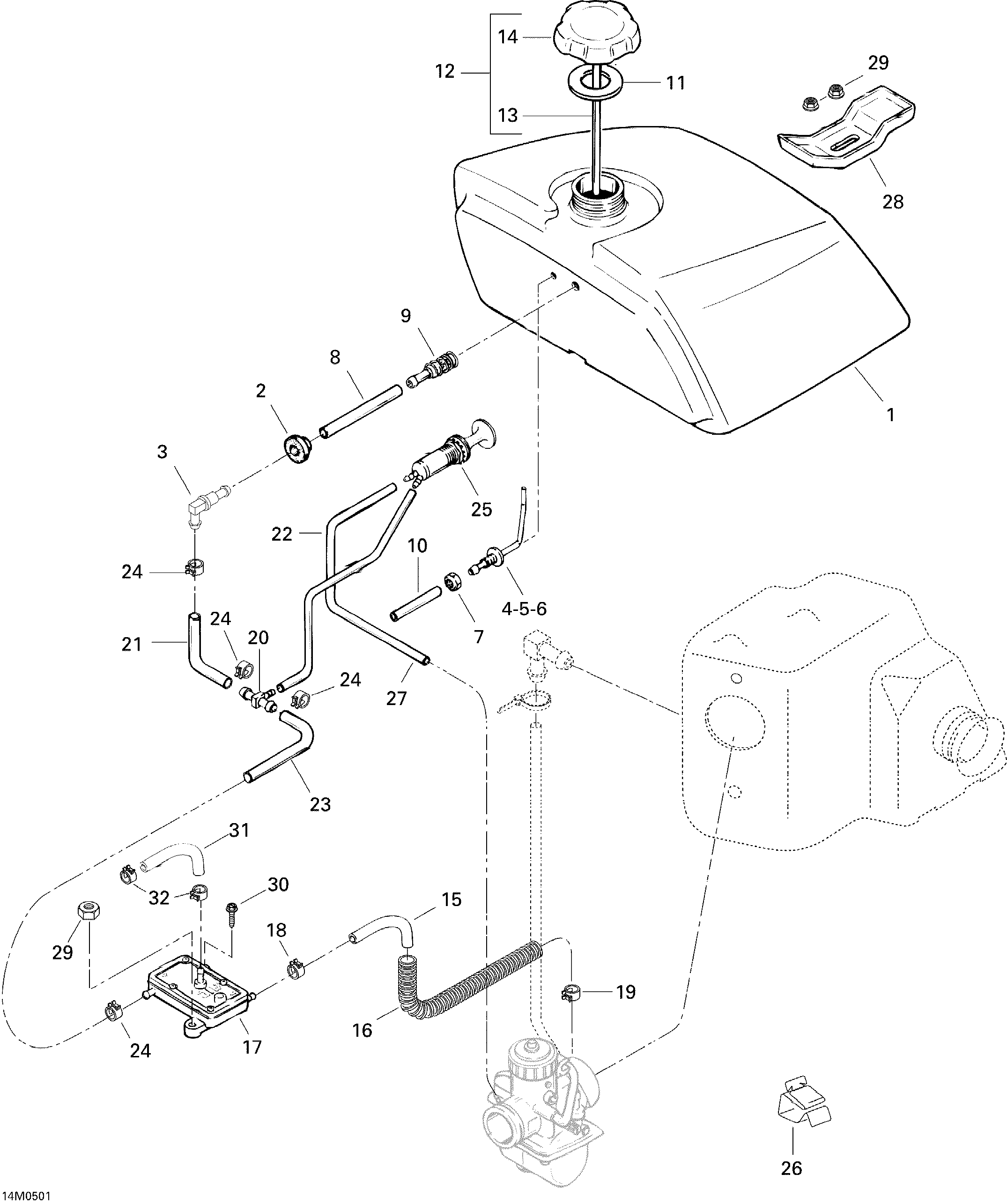

02- Fuel System для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1513033097 Fuel TankFuel Tank
-
2570135100 GrommetGrommet
-
3414580600 Elbow Male ConnectorElbow Male Connector
-
4513031100 Vent Fitting. Includes Items 4 to 6Vent Fitting. Includes Items 4 to 6
-
5513031701 FittingFitting
-
7396302200 Hex. Nut 5/16-18 YicHex. Nut 5/16-18 Yic
-
8415110000 Hose 3/16Hose 3/16
-
9414865700 Fuel FilterFuel Filter
-
10415080100 Primer LinePrimer Line
-
11570134800 SealSeal
-
12572138300 Fuel Tank Cap. Includes Items 12 to 14Fuel Tank Cap. Includes Items 12 to 14
-
14580259400 Fuel Tank CapFuel Tank Cap
-
15415079800 Rubber HoseRubber Hose
-
16409901800 Tubing (13 mm)Tubing (13 mm)
-
17403800800 Fuel Pump Df44-226AFuel Pump Df44-226A
-
18414415200 Spring ClampSpring Clamp
-
19513033014 Spring ClampSpring Clamp
-
20414222500 T-fittingT-fitting
-
21415079800 Rubber HoseRubber Hose
-
22415080100 Primer LinePrimer Line
-
23415079800 Rubber HoseRubber Hose
-
24414415200 Spring ClampSpring Clamp
-
25415060500 PrimerPrimer
-
26414227300 ClipClip
-
27415080100 Primer LinePrimer Line
-
28517159500 Bracket Seat-tankBracket Seat-tank
-
29233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30365901100 Hex Tapping Screw 12Hex Tapping Screw 12
-
31415079800 Rubber HoseRubber Hose
-
32414415200 Spring ClampSpring Clamp
