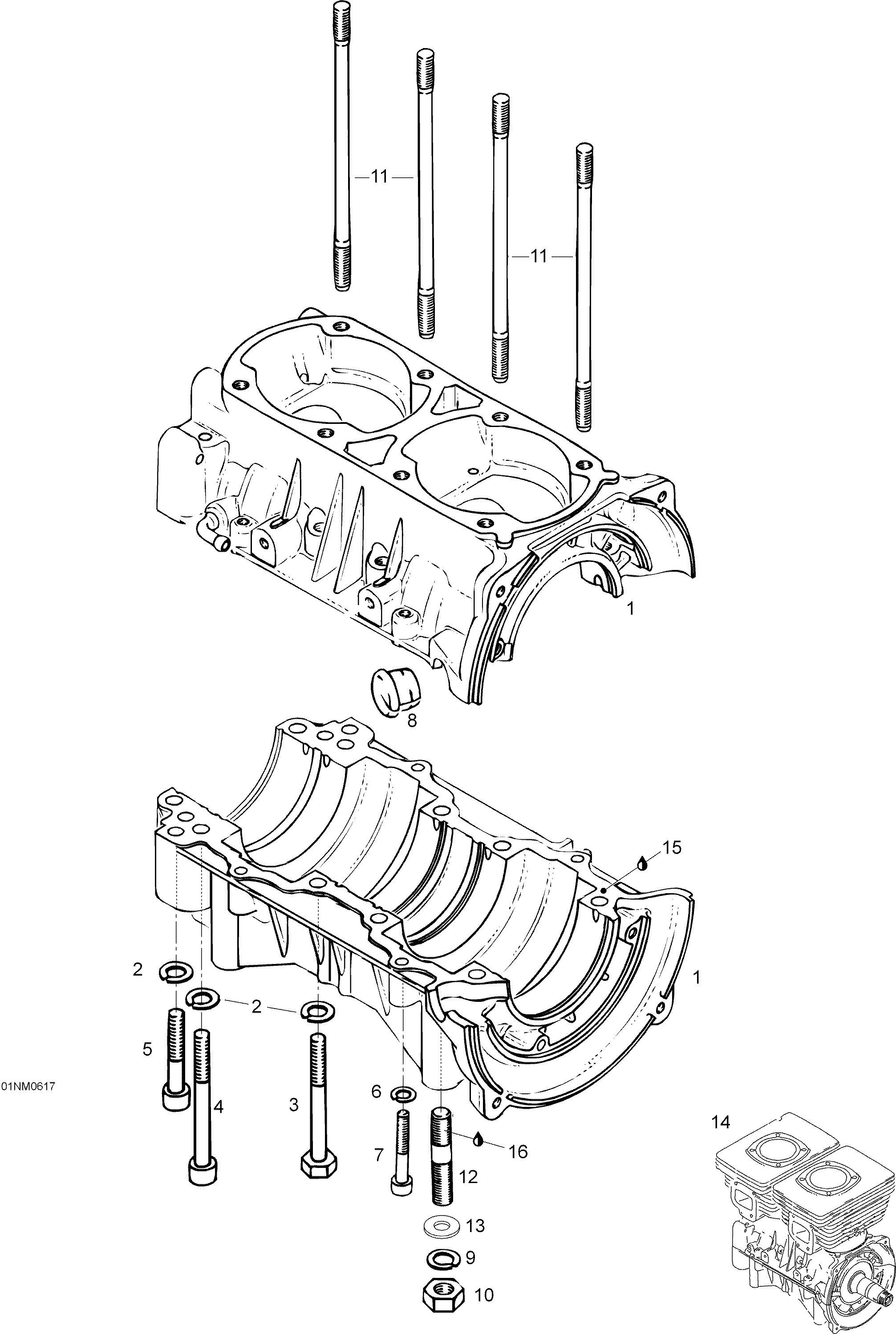

01- Crankcase для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1420888481 Crankcase Ass'Y. Includes 1 to 7Crankcase Ass'Y. Includes 1 to 7
-
2420945752 Lock Washer 8 mmLock Washer 8 mm
-
3420841201 Hex Screw M8 X 70Hex Screw M8 X 70
-
4420841831 Allen Screw M8 X 75Allen Screw M8 X 75
-
5420841566 Allen Screw M8 X 50Allen Screw M8 X 50
-
6420945751 Lock Washer 6 mmLock Washer 6 mm
-
7420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
8420860962 Cable GrommetCable Grommet
-
9M20047 Lock WasherLock Washer
-
10232006414 Hex Nut M10Hex Nut M10
-
11420841149 Stud M8 X 167Stud M8 X 167
-
12420940190 Stud M10 X 29/20Stud M10 X 29/20
-
13234001410 Flat Washer 10 mmFlat Washer 10 mm
-
14420044301 Block-short 443Block-short 443
-
15420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
