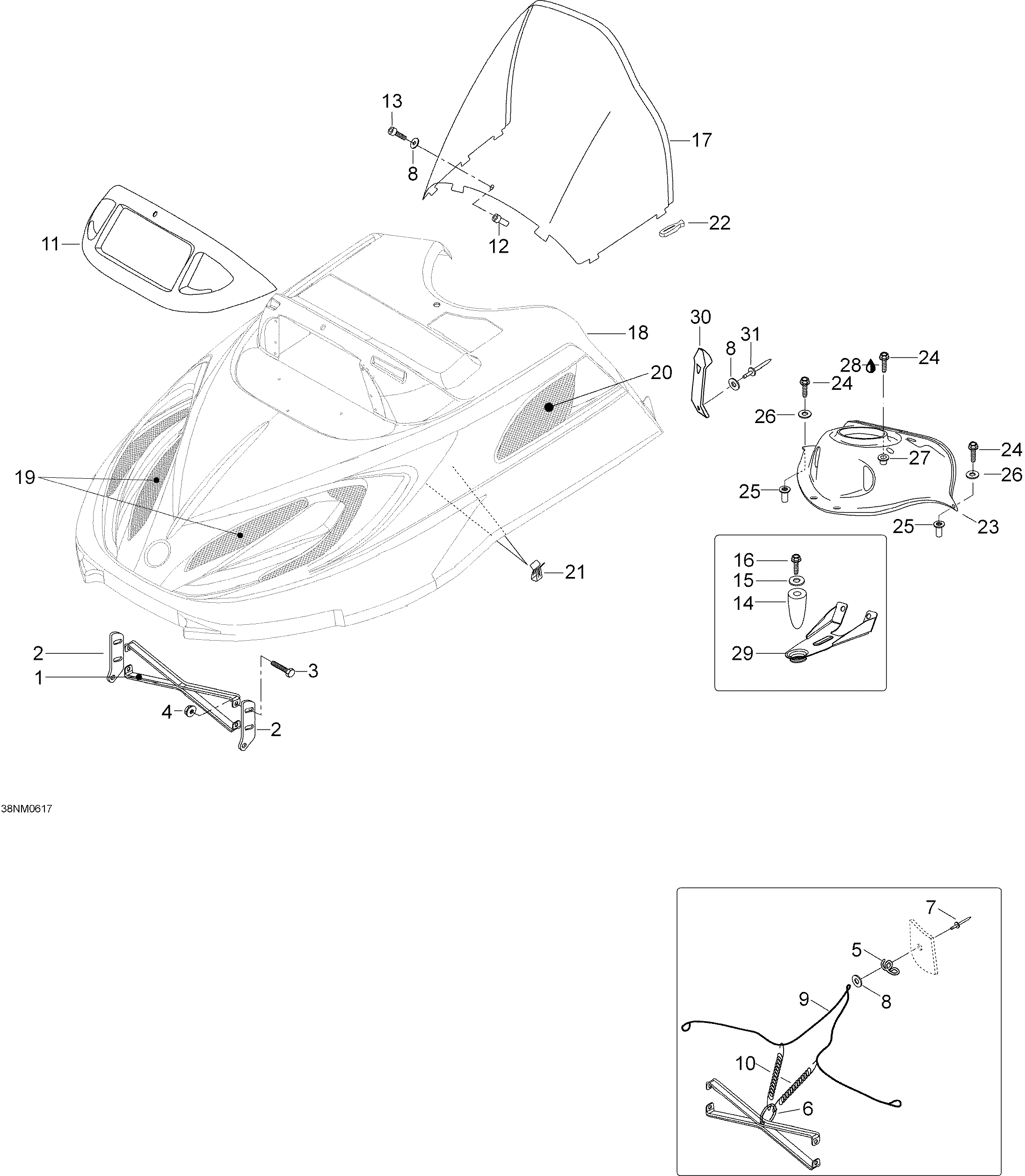

09- Hood для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1M5246862 Hood ReinforcementHood Reinforcement
-
2517261100 Uppper HingeUppper Hinge
-
3M40366 Screw M5X16Screw M5X16
-
4M33062 Nut M5Nut M5
-
5M5442870 Cable KeeperCable Keeper
-
6415058300 RingRing
-
7M36005 RivetRivet
-
8M20008 Washer 5 mmWasher 5 mm
-
9605351372 Retainer CableRetainer Cable
-
10M5442675 SpringSpring
-
11572079200 Lamp MouldingLamp Moulding
-
12M28050 Welded NutWelded Nut
-
13M40358 Screw M5 X 30Screw M5 X 30
-
14M5446857 Guide PinGuide Pin
-
15M20038 WasherWasher
-
16M40375 ScrewScrew
-
17M5147892 WindshieldWindshield
-
18605148660 Yellow Hood. Includes 18 to 21Yellow Hood. Includes 18 to 21
-
19M5246261 RH Front GrillRH Front Grill
-
19M5246262 LH Front GrillLH Front Grill
-
20M5346263 LH Side GrillLH Side Grill
-
20M5347250 RH Side GrillRH Side Grill
-
21414227300 ClipClip
-
22570023800 Windshield LatchWindshield Latch
-
23605350277 DashDash
-
24732600030 ScrewScrew
-
25M28055 Welded NutWelded Nut
-
26M20117 WasherWasher
-
27M547539 Rubber DamperRubber Damper
-
28293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
29605350221 Guide PlateGuide Plate
-
30570025900 Black LatchBlack Latch
-
31M36009 RivetRivet
