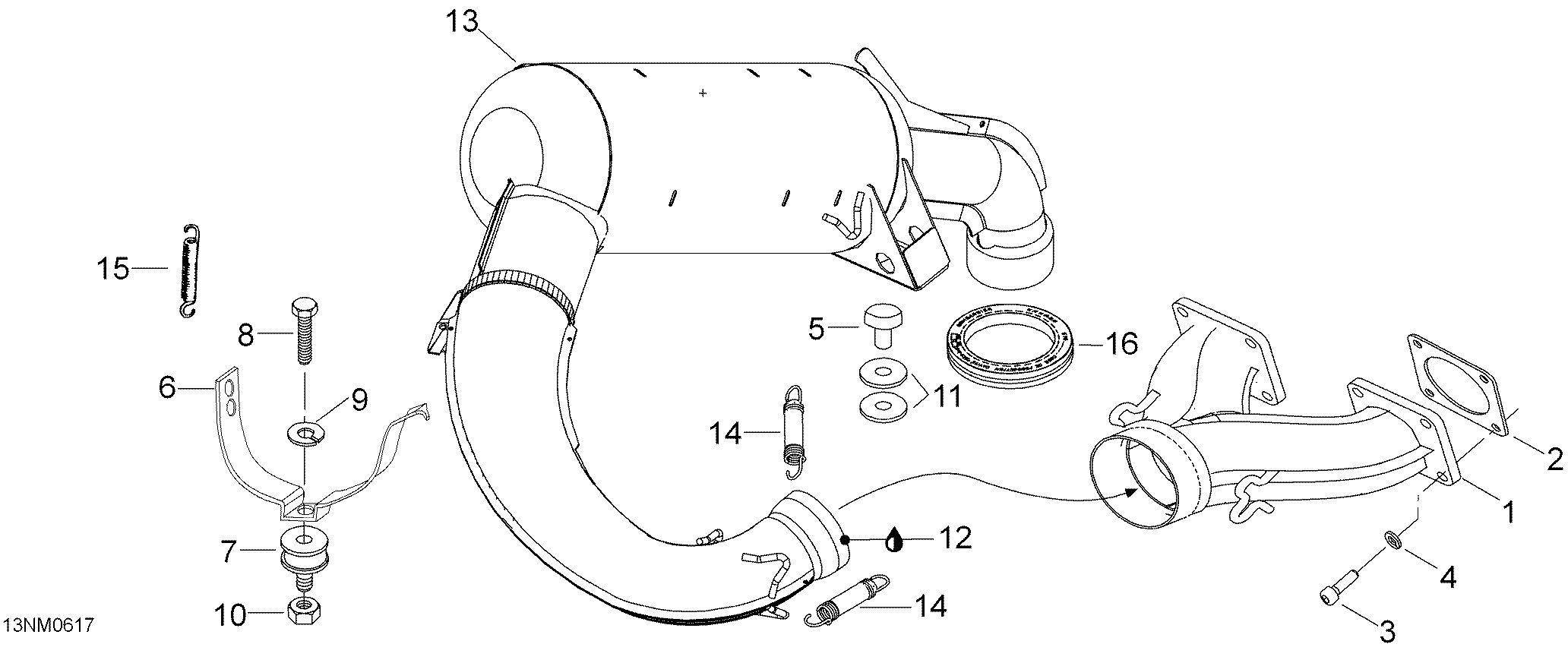

01- Exhaust System для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1420879459 Exhaust ManifoldExhaust Manifold
-
2420850114 GasketGasket
-
3M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4234181401 Lock Washer M8Lock Washer M8
-
5570044700 Rubber PumperRubber Pumper
-
6M535108 SupportSupport
-
7M28245 Rubber BumperRubber Bumper
-
8M40034 ScrewScrew
-
9234181401 Lock Washer M8Lock Washer M8
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11M20077 WasherWasher
-
12293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
13420979823 MufflerMuffler
-
14420938795 SpringSpring
-
15M543225 SpringSpring
-
16570039000 Exhaust GrommetExhaust Grommet
