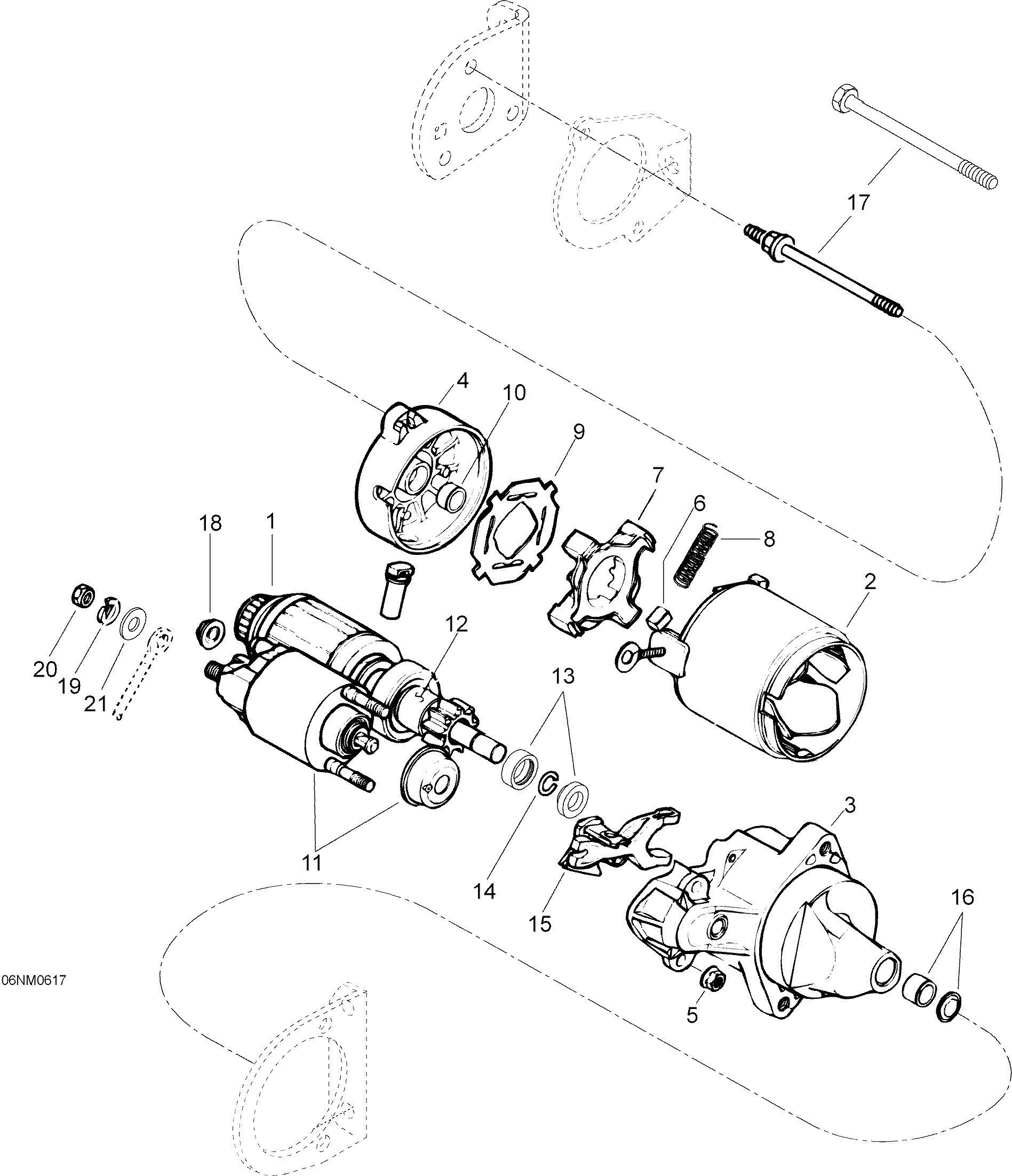

04- Electric Starter для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
-410212400 Electric Starter Ass'Y. Sisaltaa osat 1 to 18Electric Starter Ass'Y. Sisaltaa osat 1 to 18
-
1410210200 Armature Assy.Armature Assy.
-
2410209500 Housing StarterHousing Starter
-
3410210800 HousingHousing
-
4410210000 HousingHousing
-
5410211200 NutNut
-
6410209600 BrushBrush
-
7410209700 Brush HolderBrush Holder
-
8410209800 Brush SpringBrush Spring
-
9410209900 InsulatorInsulator
-
10410210100 Bushing-Brass BushingBushing-Brass Bushing
-
11410210300 Switch Assy.Switch Assy.
-
12410210400 Starter ClutchStarter Clutch
-
13410212500 NutNut
-
14410212600 CirclipCirclip
-
15410210700 LeverLever
-
16410210900 Brass BushingBrass Bushing
-
17410212000 BoltBolt
-
18410211100 NutNut
-
19234181401 Lock Washer M8Lock Washer M8
-
20M33003 NutNut
-
21M20004 WasherWasher
