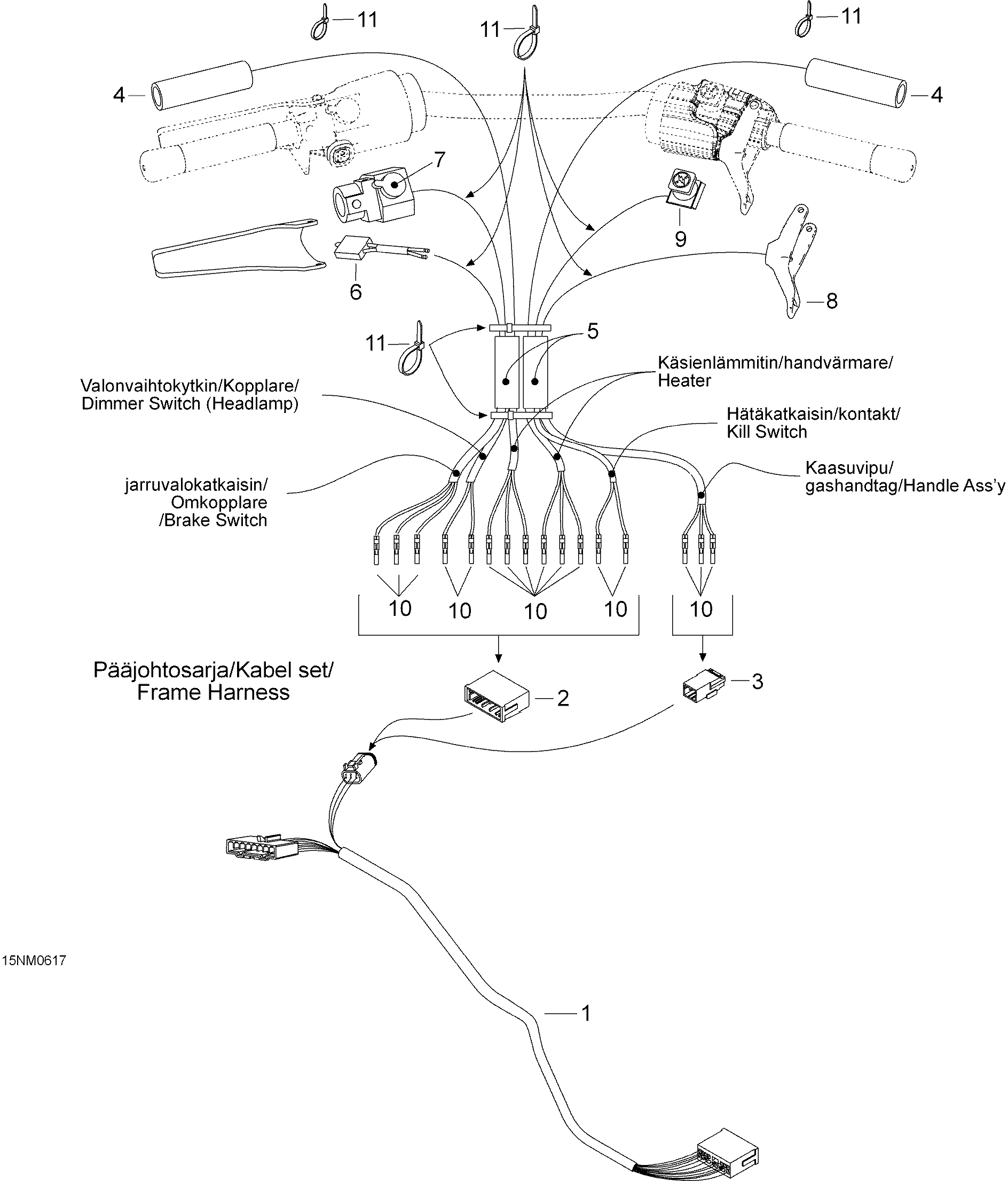

10- Steering Wiring Harness для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1605150620 Main HarnessMain Harness
-
2M42617 Male Connector HousMale Connector Hous
-
3M42271 Male Connector HousingMale Connector Housing
-
4515175573 Heating GripHeating Grip
-
5M39023 HousingHousing
-
6415085700 Brake SwitchBrake Switch
-
7415085800 Dimmer SwitchDimmer Switch
-
8512059767 Handle Ass'YHandle Ass'Y
-
9515175410 Kill SwitchKill Switch
-
10M42603 Male TerminalMale Terminal
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
