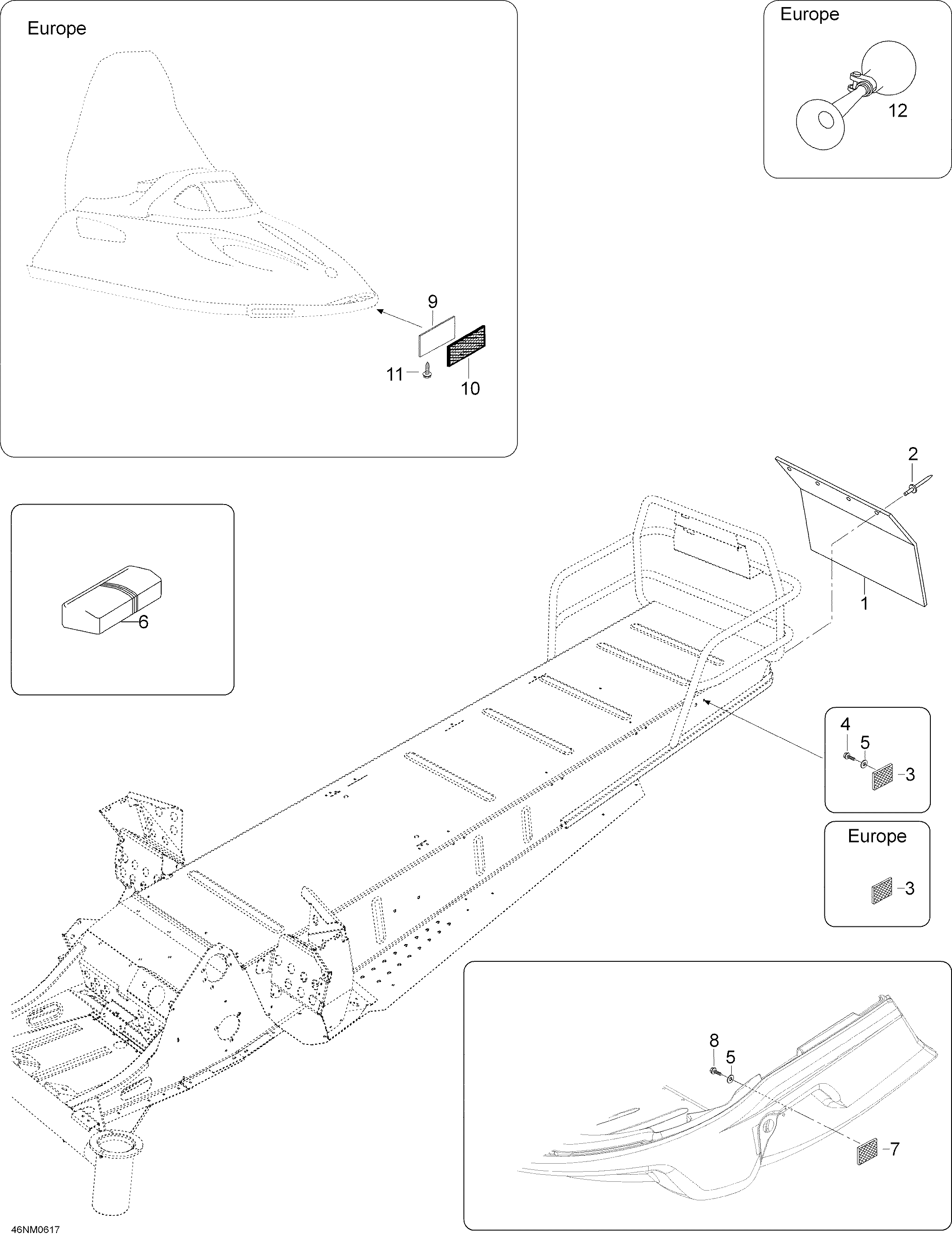

09- Utilities для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1572013800 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3414510100 Reflector (Red). Canada / U.S.A.Reflector (Red). Canada / U.S.A.
-
321121 Reflector (Yellow). EuropeReflector (Yellow). Europe
-
4M40070 ScrewScrew
-
5234451418 Washer M5Washer M5
-
6605350525 Tool KitTool Kit
-
7414510200 Reflector (Amber)Reflector (Amber)
-
8M40063 Screw M5x12Screw M5x12
-
95446916 Bracket. EuropeBracket. Europe
-
1021118 Reflector (Bright). EuropeReflector (Bright). Europe
-
1140888 Screw 4,2 x 19. EuropeScrew 4,2 x 19. Europe
-
1221003 Horn. EuropeHorn. Europe
