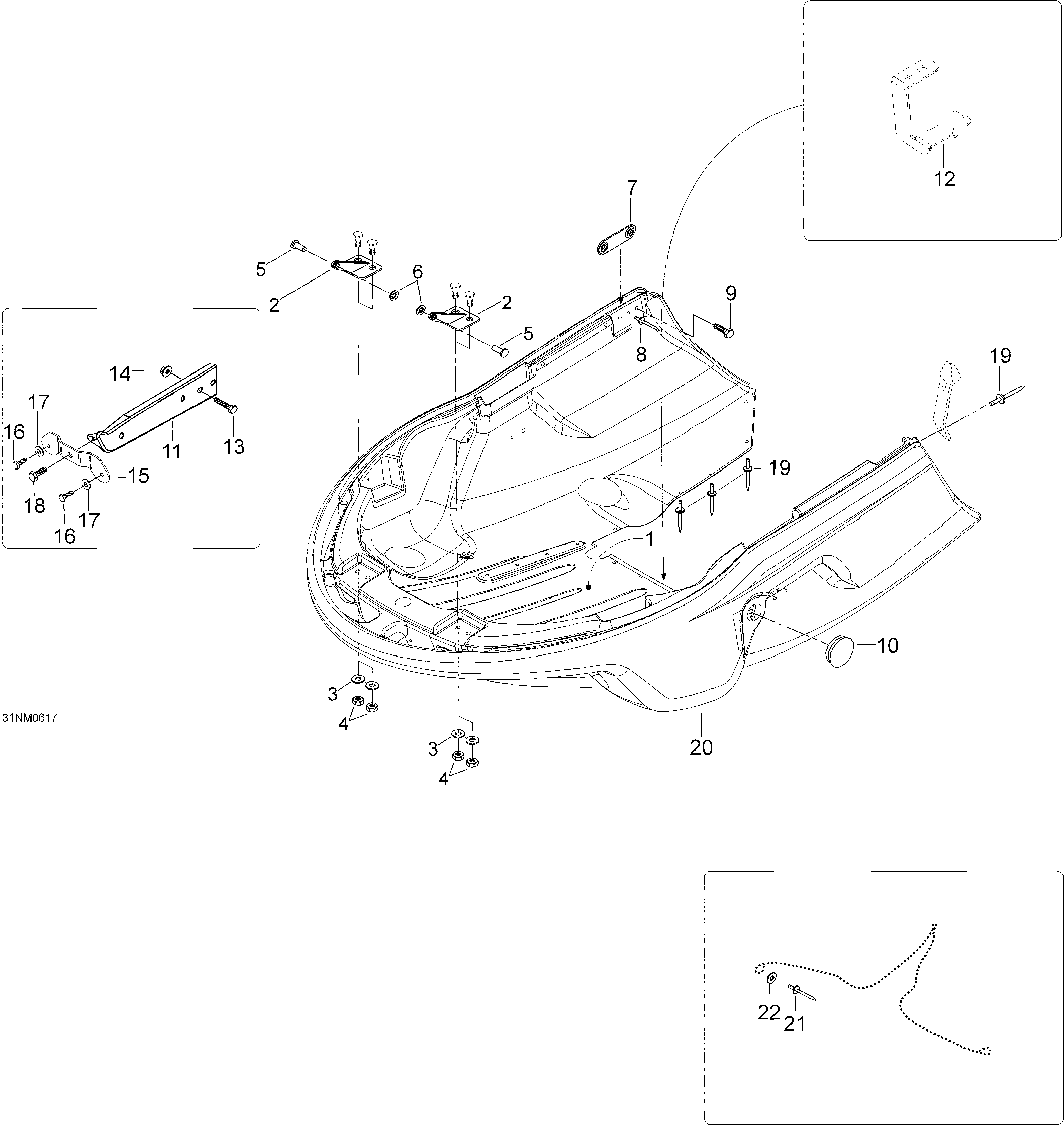

09- Bottom Pan для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1M5444437 Sheet-reflectorSheet-reflector
-
2517289900 Welded Lower HingeWelded Lower Hinge
-
3M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
6389804300 Push NutPush Nut
-
7M5446213 Side BracketSide Bracket
-
8M36009 RivetRivet
-
9M40377 ScrewScrew
-
10570277300 Bottom Pan CapBottom Pan Cap
-
11M5246183 Front SupportFront Support
-
12605351521 L.h. BracketL.h. Bracket
-
12605351520 Rh.bracketRh.bracket
-
13M40336 Screw M8 X 20Screw M8 X 20
-
14M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
15605352393 Bottom Pan FrontBottom Pan Front
-
16732600030 ScrewScrew
-
17M20117 WasherWasher
-
18M40377 ScrewScrew
-
19M36036 Rivet-BlackRivet-Black
-
20605153168 Bottom PanBottom Pan
-
21M36009 RivetRivet
-
22M20008 Washer 5 mmWasher 5 mm
