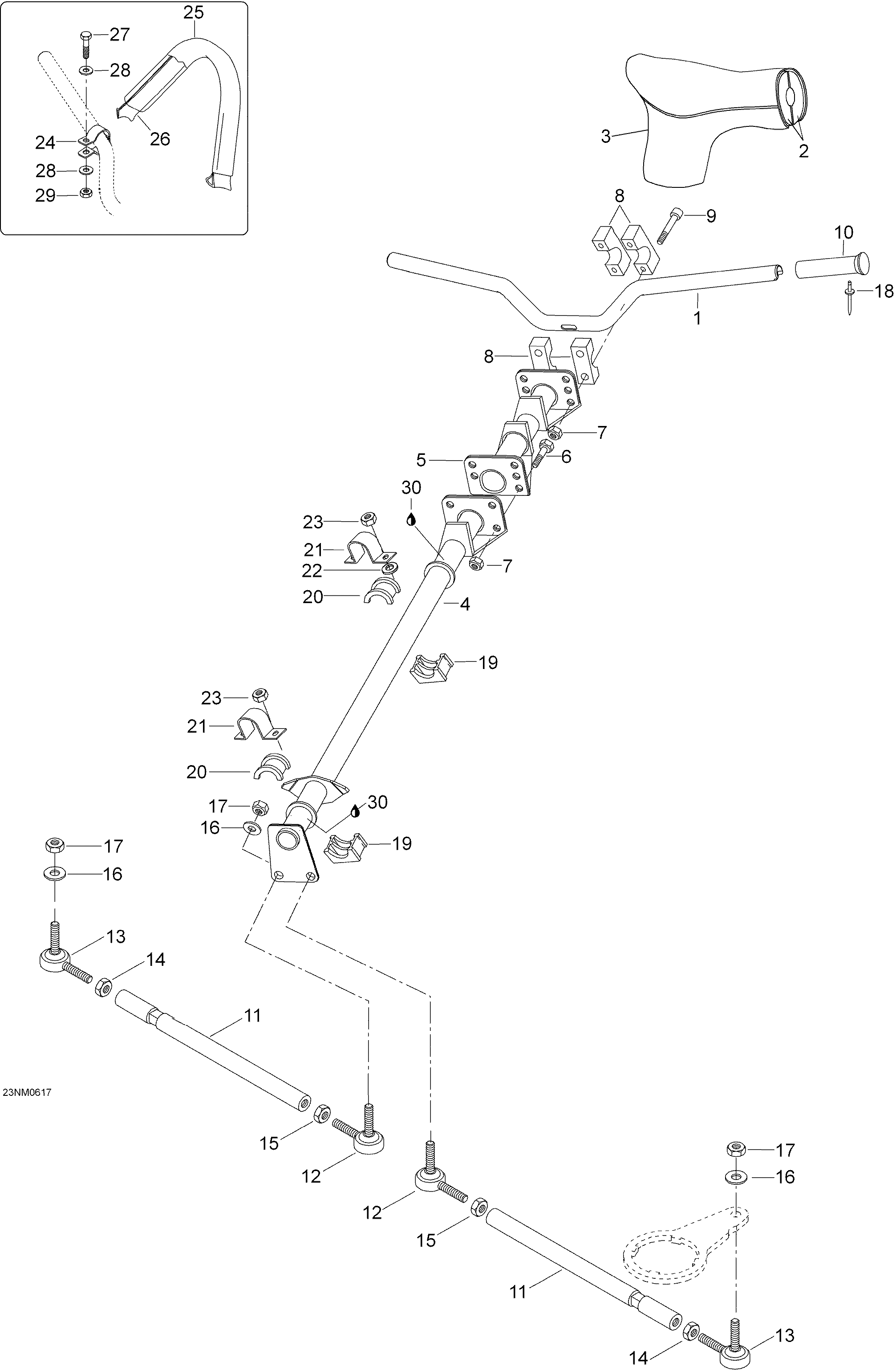

07- Steering System для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1605249033 Handle BarHandle Bar
-
2605250305 Front Padding SteeringFront Padding Steering
-
2605250306 Rear Padding SteeringRear Padding Steering
-
3605252513 Steering CoverSteering Cover
-
4M5245963 Main TubeMain Tube
-
5605250820 Extension WeldExtension Weld
-
6207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
7232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
8M548448 Steering ClampSteering Clamp
-
9M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
10M5340464 Grip HandleGrip Handle
-
11M548983 RH Tie RodRH Tie Rod
-
12506151495 LH Ball JointLH Ball Joint
-
13506151492 RH Ball JointRH Ball Joint
-
14M33019 RH NutRH Nut
-
15M33017 LH NutLH Nut
-
16M20047 Lock WasherLock Washer
-
17M33023 NutNut
-
18M36005 RivetRivet
-
19572064400 BushingBushing
-
20572064500 BushingBushing
-
21M5343381 Retaining SupportRetaining Support
-
22M31081 Lock WasherLock Washer
-
23M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
24506151792 Support Plate, BlackSupport Plate, Black
-
25415090200 GripGrip
-
26415095500 Tie-DownTie-Down
-
27207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
28234061410 Flat Washer M6Flat Washer M6
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
