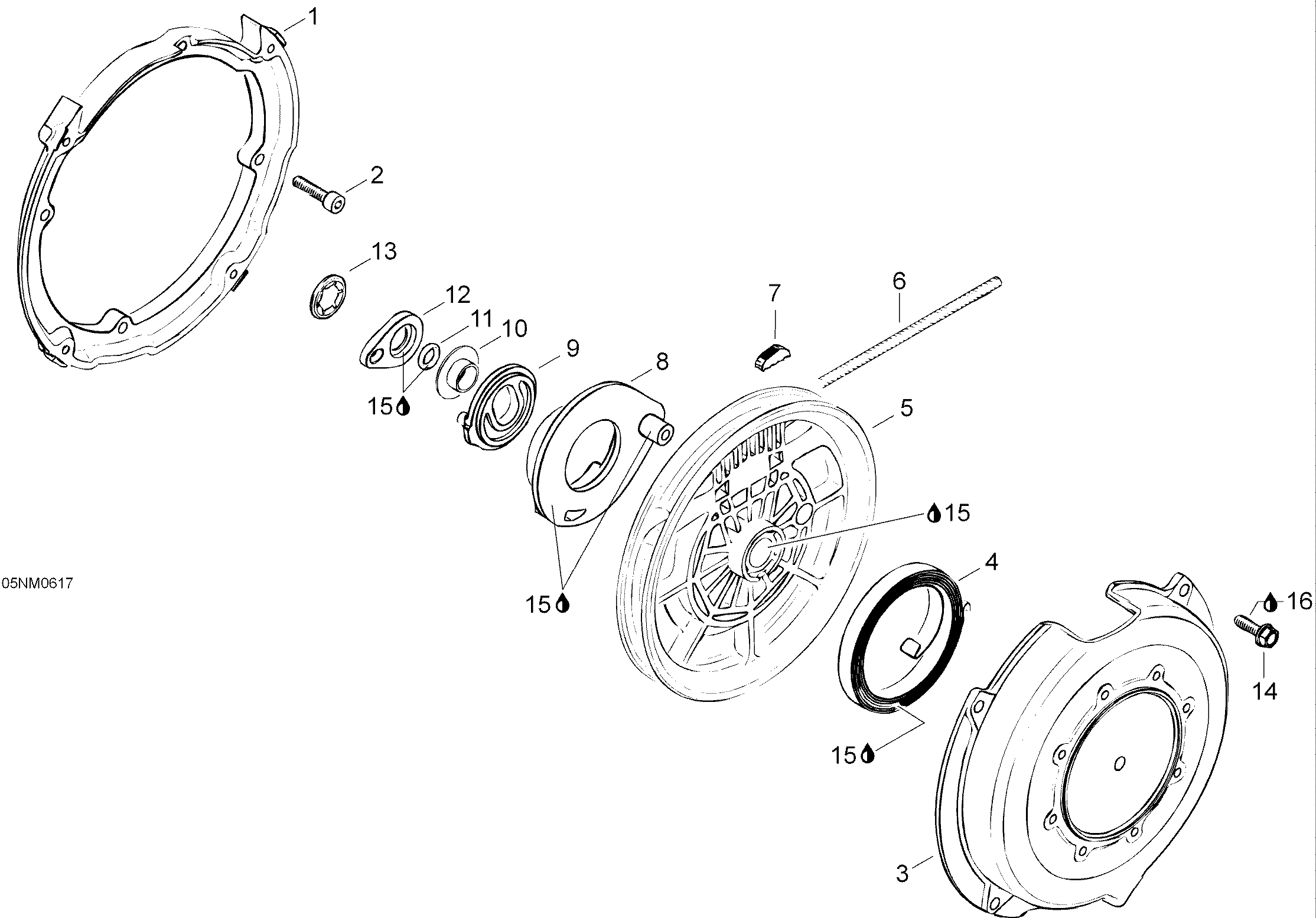

04- Rewind Starter для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1420810952 Flange ConnectorFlange Connector
-
2420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
-420888219 Rewind Starter Ass'y. Includes 3 to 13Rewind Starter Ass'y. Includes 3 to 13
-
3420811346 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter RopeStarter Rope
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852305 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
