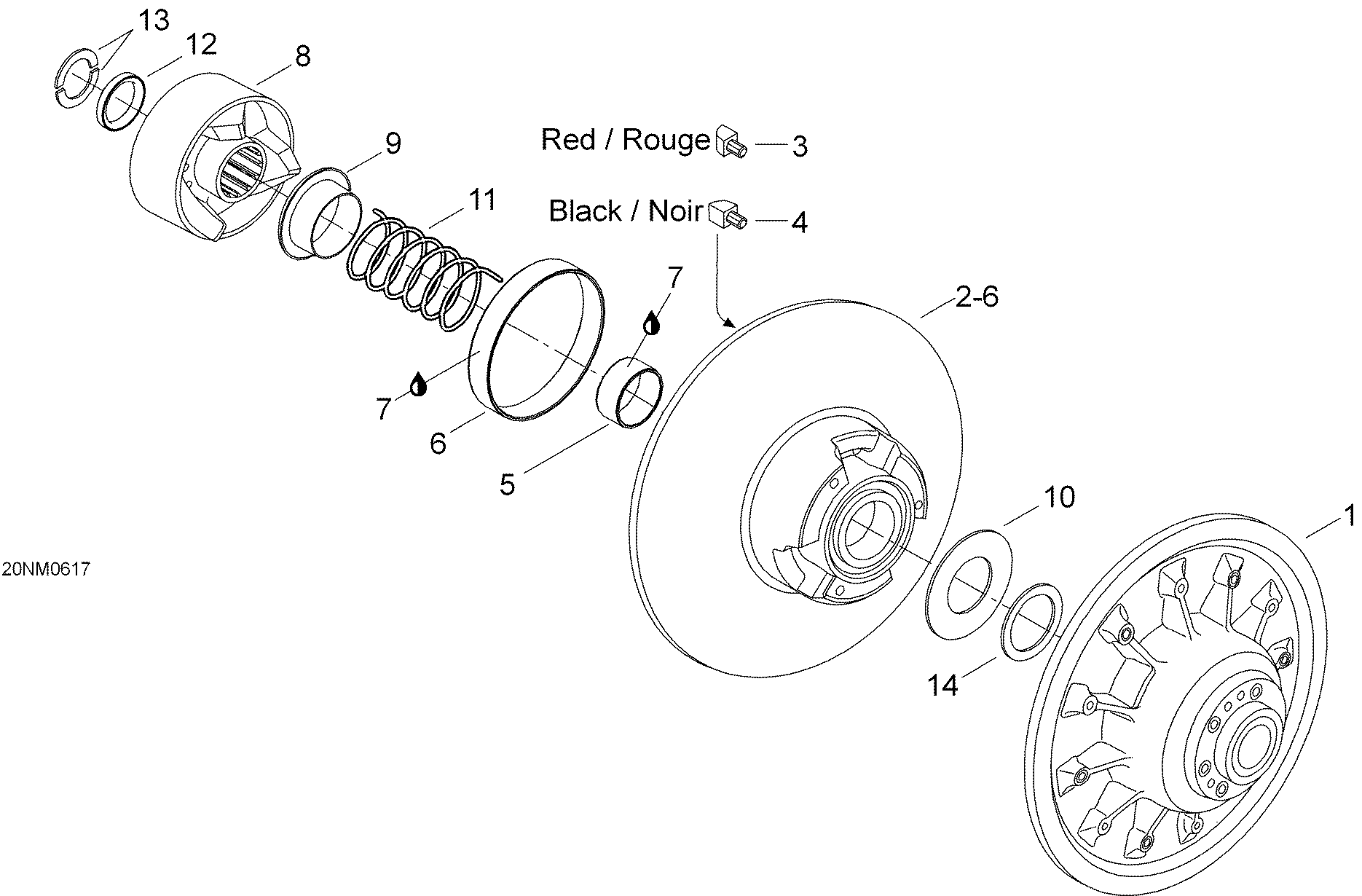

05- Driven Pulley для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1417126401 Fixed Flange Ass'YFixed Flange Ass'Y
-
2417126403 Sliding Flange Ass'Y. Includes 2 to 6Sliding Flange Ass'Y. Includes 2 to 6
-
3417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
4417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
5415092600 BushingBushing
-
6415092700 BushingBushing
-
7413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
8417126457 Cam Ass'YCam Ass'Y
-
9415006000 GuardGuard
-
10504099600 Stopper WasherStopper Washer
-
11415092800 Yellow SpringYellow Spring
-
12417126368 SpacerSpacer
-
13371911000 Half KeyHalf Key
-
14504112300 ShimShim
