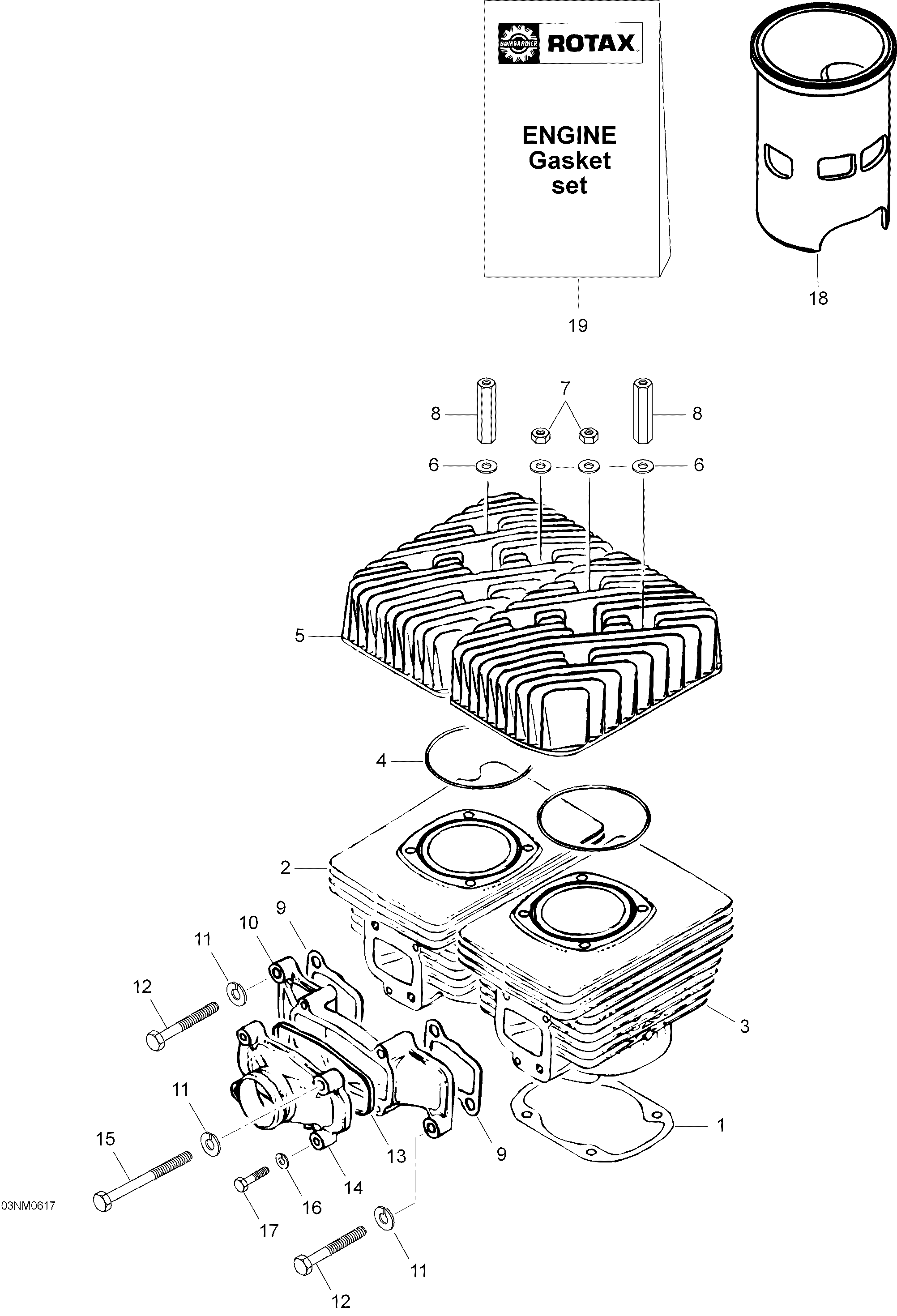

01- Cylinder and Cylinder Head для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1420430351 Gasket-0,4Gasket-0,4
-
2420923791 Cylinder With Sleeve PTO SideCylinder With Sleeve PTO Side
-
3420923796 Cylinder Whit Sleeve Mag SideCylinder Whit Sleeve Mag Side
-
4420931380 O-ringO-ring
-
5420923377 Cylinder HeadCylinder Head
-
6M20004 WasherWasher
-
7232081414 Hex Nut M8Hex Nut M8
-
8420842208 Distance Nut M8 X 51Distance Nut M8 X 51
-
9420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
10420867435 Intake ManifoldIntake Manifold
-
11234181401 Lock Washer M8Lock Washer M8
-
12207083544 Hex Screw M8 X 35Hex Screw M8 X 35
-
13420850190 Rubber RingRubber Ring
-
14420867442 Intake Cover-IntakeIntake Cover-Intake
-
15420841201 Hex Screw M8 X 70Hex Screw M8 X 70
-
16420945751 Lock Washer 6 mmLock Washer 6 mm
-
17207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
18420923533 Sleeve-cylindeSleeve-cylinde
-
19420994232 Gasket Set, EngineGasket Set, Engine
