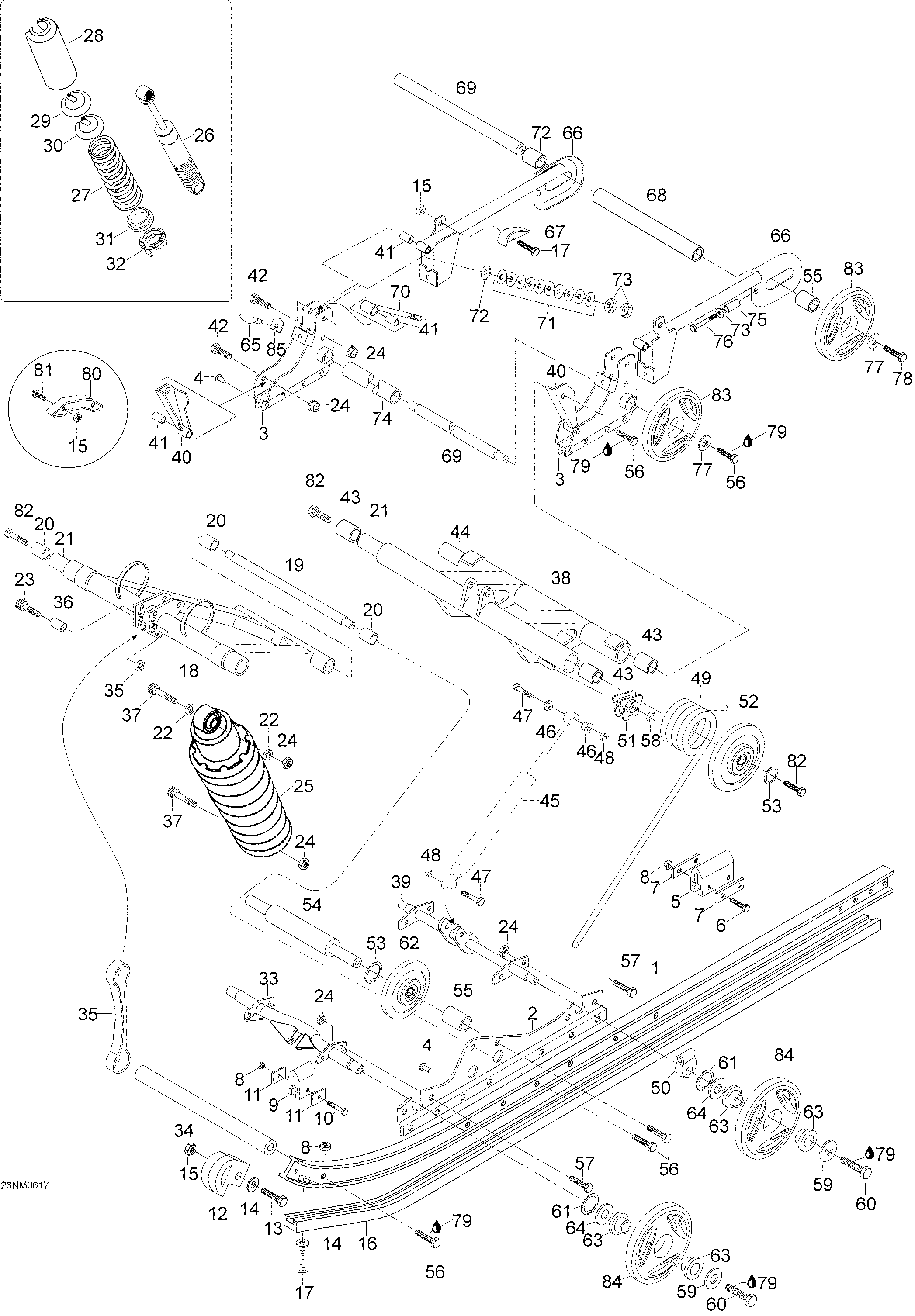

08- Rear Suspension для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1M5142864 RunnerRunner
-
2605350393 Plate R.h.Plate R.h.
-
2605350392 Plate L.h.Plate L.h.
-
3M539673 RH SupportRH Support
-
3M539672 LH SupportLH Support
-
4M544212 RivetRivet
-
5570023100 Rubber StopperRubber Stopper
-
6207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
7M548387 WasherWasher
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9M5442328 Rubber StopperRubber Stopper
-
10207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
11M548470 PlatePlate
-
12605348954 Runner ProtectorRunner Protector
-
13207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
14234061410 Flat Washer M6Flat Washer M6
-
15M33200 Nut M6Nut M6
-
16M549582 Runner ShoeRunner Shoe
-
17207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
18605350283 Front Arm WeldingFront Arm Welding
-
19M548944 AxleAxle
-
20M31023 CushionCushion
-
21M538945 Rear Cross ShaftRear Cross Shaft
-
22605450783 BushingBushing
-
23M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26M23218 Shock CentralShock Central
-
27M25068 SpringSpring
-
28503188930 ProtectorProtector
-
29503140600 Spring StopperSpring Stopper
-
30503141600 CapCap
-
31M23177001 Spring GuideSpring Guide
-
32M23176001 CamCam
-
33605352269 Front Idler AxeFront Idler Axe
-
34M546599 Cross ShaftCross Shaft
-
35M5445988 Stopper StrapStopper Strap
-
36M546065 SleeveSleeve
-
37207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
38605350729 Rear Arm WeldingRear Arm Welding
-
39605352278 Rear Idler AxelRear Idler Axel
-
40M5440349 LH LeverLH Lever
-
40M5440350 RH LeverRH Lever
-
41M545758 SleeveSleeve
-
42207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
43M31023 CushionCushion
-
44M548946 AxleAxle
-
45M23016 ShockShock
-
46M544417 CushionCushion
-
47207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49M538805 LH SpringLH Spring
-
49M538806 RH SpringRH Spring
-
50M548804 Spring SupportSpring Support
-
51503190022 RH Cam AdjusterRH Cam Adjuster
-
51503190023 LH Cam AdjusterLH Cam Adjuster
-
52503189478 Thin Wheel 165Thin Wheel 165
-
53M31001 CirclipCirclip
-
54M5445985 Support ShaftSupport Shaft
-
55M5444098 Sleeve L=29Sleeve L=29
-
56M40335 ScrewScrew
-
57207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
58M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
59503183100 WasherWasher
-
60M40337 Hex ScrewHex Screw
-
61M31007 CirclipCirclip
-
62503191029 Wheel 135Wheel 135
-
63503189534 CushionCushion
-
64M31091 ShimShim
-
65M535455 Rubber StopperRubber Stopper
-
66605251783 Extension Tube LHExtension Tube LH
-
66605251784 Extension Tube RHExtension Tube RH
-
67M548262 ProtectorProtector
-
68M5346739 SleeveSleeve
-
69M5445986 ShaftShaft
-
70M5440377 Eye Bolt AdjusterEye Bolt Adjuster
-
71M25004 Spring PlateSpring Plate
-
72M20011 WasherWasher
-
73232006414 Hex Nut M10Hex Nut M10
-
74M542105 Sleeve L=176Sleeve L=176
-
75605452332 SpacerSpacer
-
76M40239 ScrewScrew
-
77503183300 WasherWasher
-
78M40050 Hex Screw With Nylon PatchHex Screw With Nylon Patch
-
79293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
80M5343191 ProtectorProtector
-
81M40064 Hex ScrewHex Screw
-
82M40314 Screw M10 X 30Screw M10 X 30
-
83503190785 Wheel 135, YellowWheel 135, Yellow
-
84503190817 Wheel 165 mm YellowWheel 165 mm Yellow
-
85M5440645 Adjusment PlateAdjusment Plate
