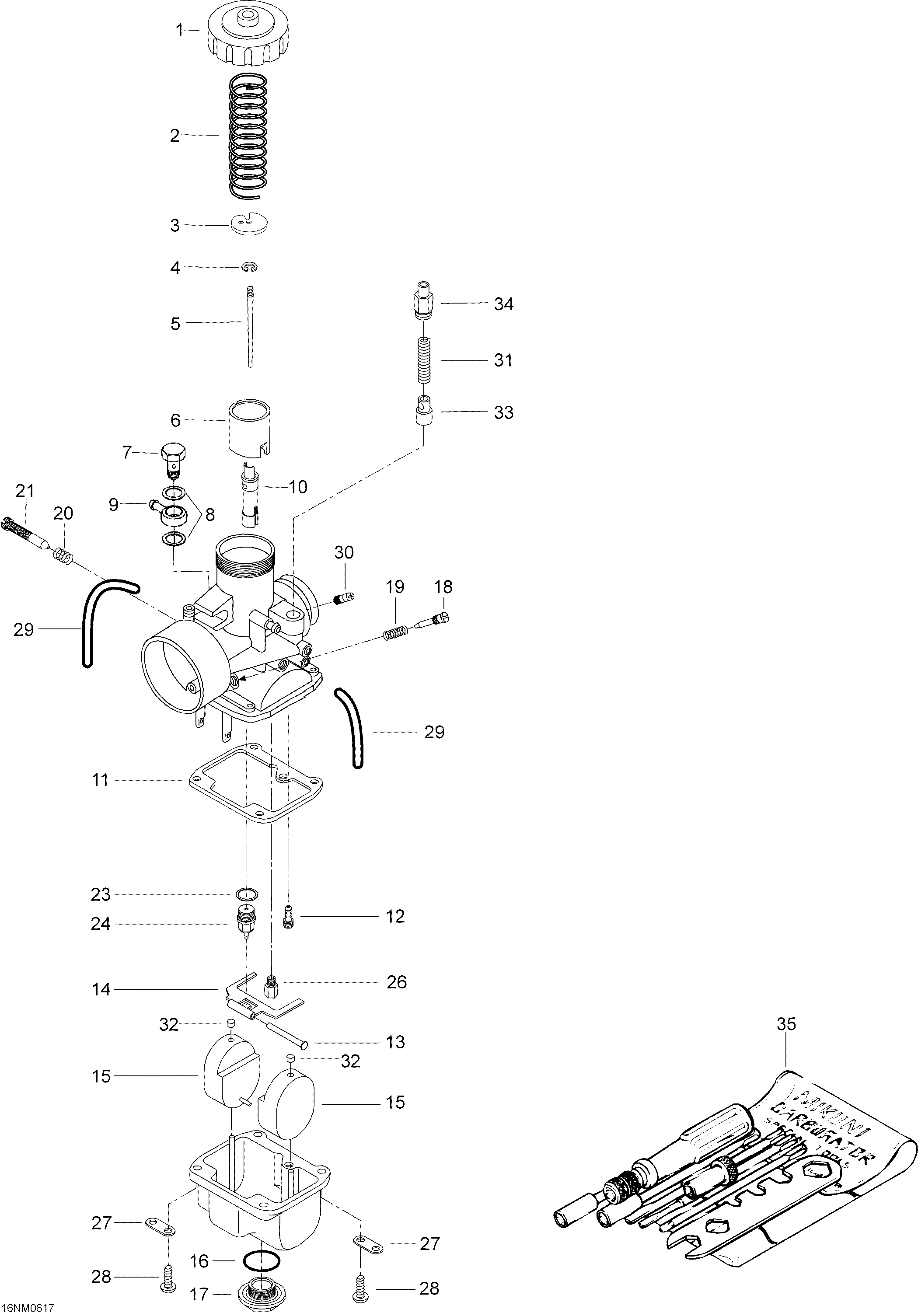

02- Carburetor для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1404103700 CoverCover
-
2404154800 SpringSpring
-
3404103800 PlatePlate
-
4404152400 E-RingE-Ring
-
5404161978 NeedleNeedle
-
6404158400 Valve Piston 3.0Valve Piston 3.0
-
7420963960 ScrewScrew
-
8270500025 WasherWasher
-
9404130000 Banjo FittingBanjo Fitting
-
10404130200 Needle JetNeedle Jet
-
11404104200 GasketGasket
-
12404109500 Pilot Jet 50Pilot Jet 50
-
13404103300 Lever PinLever Pin
-
14404107600 Float LeverFloat Lever
-
15404107100 FloatFloat
-
16404107300 O-RingO-Ring
-
17404107400 Drain Plug ScrewDrain Plug Screw
-
18404149000 Air ScrewAir Screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404125200 Throttle ScrewThrottle Screw
-
23404101600 Seat WasherSeat Washer
-
24605353825 Valve Needle 1.5Valve Needle 1.5
-
26404112200 Main Jet 180Main Jet 180
-
27404103000 PlatePlate
-
28404102000 Screw With Lock WasherScrew With Lock Washer
-
29404161880 HoseHose
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404105800 CapCap
-
33404161000 Plunger Ass'YPlunger Ass'Y
-
34404161100 GuideGuide
-
35404112000 Tool KitTool Kit
