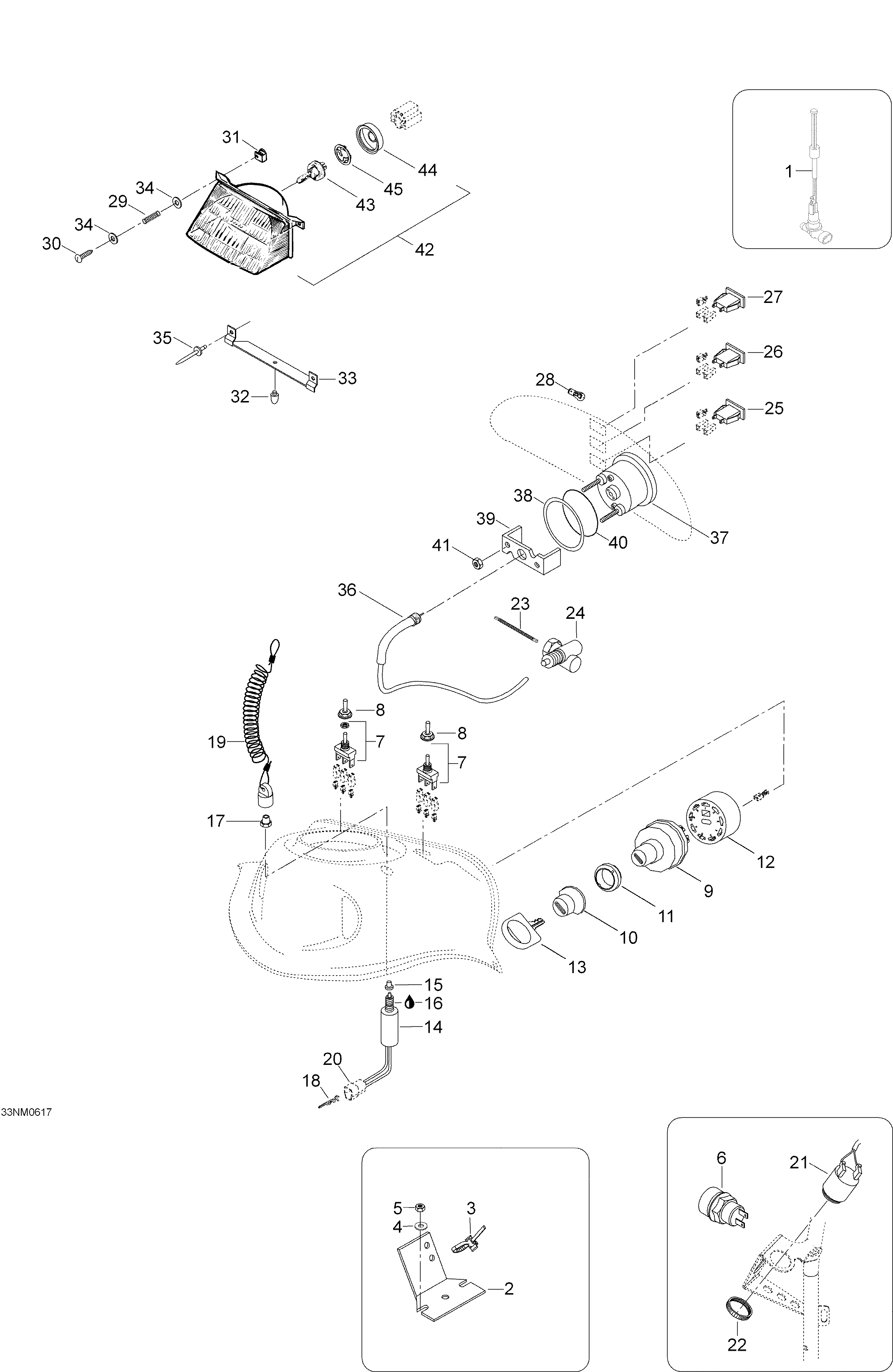

10- Electrical System для BRP Ski-Doo Skandic LT 440F - 2006
-
№АртикулНазвание
-
1605452095 Oil SensorOil Sensor
-
2605350731 Cooling PlateCooling Plate
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6415101200 Reverse KnobReverse Knob
-
7410107300 Switch (Heating Grip)Switch (Heating Grip)
-
8515175281 Switch CoverSwitch Cover
-
9410113602 Ignition SwitchIgnition Switch
-
10570013700 Switch BootSwitch Boot
-
11410112100 Face NutFace Nut
-
12572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
13414991700 Blank KeyBlank Key
-
14515175571 Switch BrakeSwitch Brake
-
15570151100 Plunger CapPlunger Cap
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17515145900 Switch NutSwitch Nut
-
18M42603 Male TerminalMale Terminal
-
19515151500 Cap Ass'YCap Ass'Y
-
20M42268 Male HousingMale Housing
-
21515176035 HornHorn
-
22414805101 Plastic NutPlastic Nut
-
23M45075 Square Pin-SpeedometerSquare Pin-Speedometer
-
24M35021 Drive AngleDrive Angle
-
25410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
26515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
27515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
28410504200 Instrumentation BulbInstrumentation Bulb
-
29517168600 SpringSpring
-
30243244040 Plastite Phillips Screw M4 X 40Plastite Phillips Screw M4 X 40
-
31572078600 Projector NutProjector Nut
-
32410608200 Rubber StopperRubber Stopper
-
33M539864 HolderHolder
-
34234051410 Flat WasherFlat Washer
-
35M36489 RivetRivet
-
36M45006 Speedometer CableSpeedometer Cable
-
37605152889 Speedometer Kmh/mphSpeedometer Kmh/mph
-
38517258500 WasherWasher
-
39414806500 Case HolderCase Holder
-
40414807100 O-RingO-Ring
-
41M33062 Nut M5Nut M5
-
43410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
44410607100 Protector CapProtector Cap
-
45410608300 Bulb HolderBulb Holder
