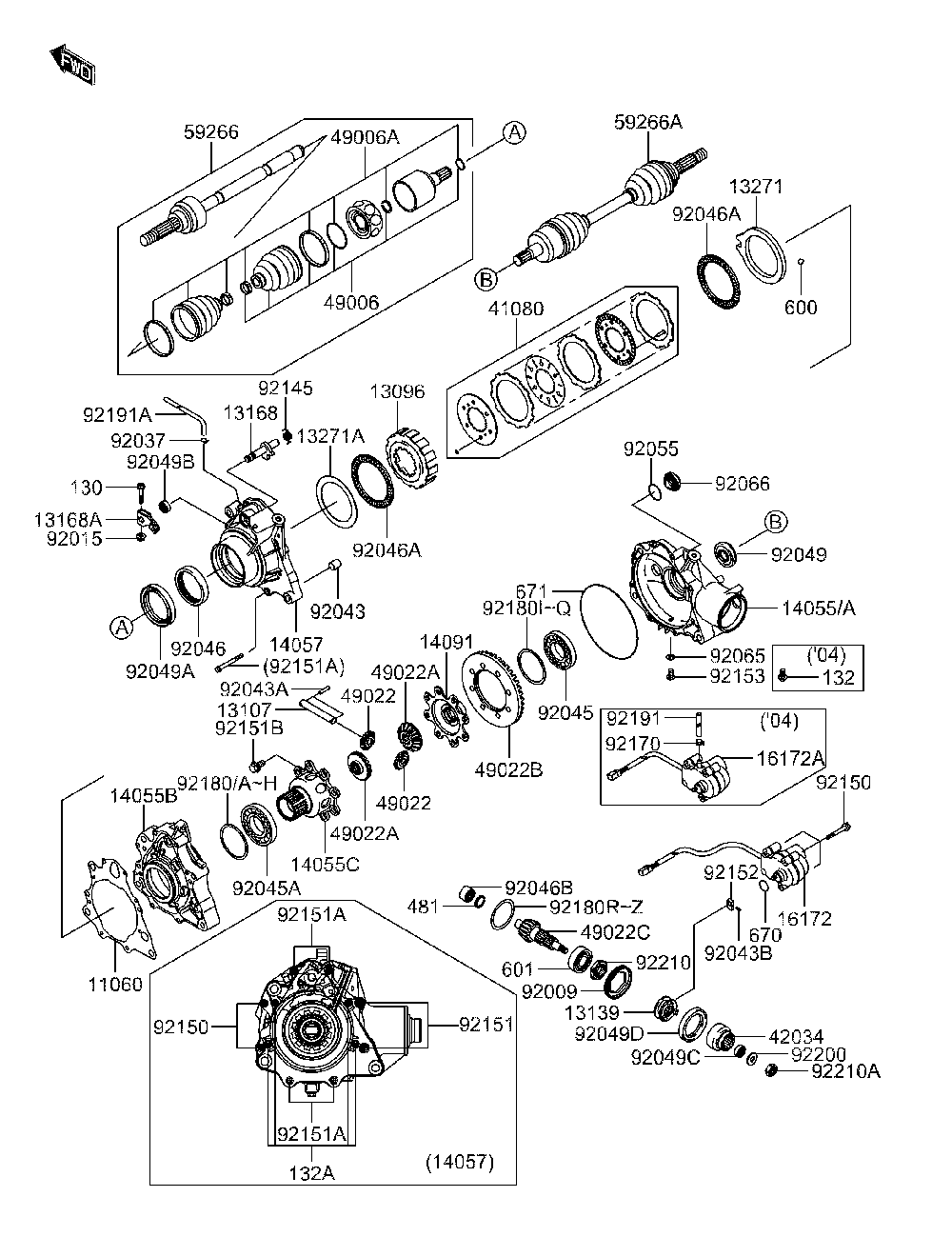

DRIVE SHAFT-FRONT для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11060K1106-01982 GASKET, DIFF CASEGASKET, DIFF CASE
-
13096K1309-61163 HOUSING-CLUTCH, DISCHOUSING-CLUTCH, DISC
-
13107K1310-71447 SHAFT, BEVELSHAFT, BEVEL
-
13139K1313-91097 SHIFTER, DIFFERENTIALSHIFTER, DIFFERENTIAL
-
13168K1316-81724 LEVER, DIFFLEVER, DIFF
-
13168AK1316-81725 LEVER, DIFFERENTIALLEVER, DIFFERENTIAL
-
13271K1327-11497 PLATE, CAMPLATE, CAM
-
13271AK1327-11503 PLATE, DISCPLATE, DISC
-
14055K1405-50014 CASE-GEARCASE-GEAR
-
14055AK1405-51149 CASE-GEAR, DIFFERENTIAL, RIGHT HANDCASE-GEAR, DIFFERENTIAL, RIGHT HAND
-
14055BK1405-51155 CASE-GEAR, CENTERCASE-GEAR, CENTER
-
14055CK1405-51156 CASE-GEAR, BEVEL, LEFT HANDCASE-GEAR, BEVEL, LEFT HAND
-
14057K1405-71004 CASE-COMP-GEAR, DIFF, LEFT HANDCASE-COMP-GEAR, DIFF, LEFT HAND
-
14091K1409-11197 COVER, BEVEL, RIGHT HANDCOVER, BEVEL, RIGHT HAND
-
16172K1617-20004 ACTUATORACTUATOR
-
16172AK1617-21057 ACTUATOR, DIFFERENTIALACTUATOR, DIFFERENTIAL
-
41080K4108-01512 DISC ASSY, DIFFERENTIAL LOCKDISC ASSY, DIFFERENTIAL LOCK
-
42034K4203-41192 COUPLING, BEVELCOUPLING, BEVEL
-
49006K4900-60005 BOOT, DOJBOOT, DOJ
-
49006AK4900-60006 BOOT, BJBOOT, BJ
-
49022K4902-21177 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022AK4902-21178 GEAR-BEVEL, 16TGEAR-BEVEL, 16T
-
49022BK4902-21190 GEAR-BEVEL, 35TGEAR-BEVEL, 35T
-
49022CK4902-21201 GEAR-BEVEL, 8TGEAR-BEVEL, 8T
-
59266K5926-61135 JOINT-BALL, LEFT HANDJOINT-BALL, LEFT HAND
-
59266AK5926-61136 JOINT-BALL, RIGHT HANDJOINT-BALL, RIGHT HAND
-
92009K9200-91914 SCREW, 64MMSCREW, 64MM
-
92015K9201-51339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92037K9203-71104 CLAMP, HOSECLAMP, HOSE
-
92043K9204-31263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043AK9204-31575 PINPIN
-
92043BK9204-31649 PIN, 2X9.8PIN, 2X9.8
-
92045K9204-51393 BEARING-BALL, 60/32BEARING-BALL, 60/32
-
92045AK9204-51394 BEARING-BALL, 6910BEARING-BALL, 6910
-
92046K9204-61282 BEARING-NEEDLE, TA627412ZE02BEARING-NEEDLE, TA627412ZE02
-
92046AK9204-61286 BEARING-NEEDLE, AK1116BEARING-NEEDLE, AK1116
-
92046BK9204-61297 BEARING-NEEDLE, AJ501515WBEARING-NEEDLE, AJ501515W
-
92049K9204-91534 SEAL-OIL, SDD7 22X48X7HSSEAL-OIL, SDD7 22X48X7HS
-
92049AK9204-91536 SEAL-OIL, HTCY 62X81X10.5SEAL-OIL, HTCY 62X81X10.5
-
92049BK9204-91550 SEAL-OIL, TC 12X22X7SEAL-OIL, TC 12X22X7
-
92049CK9204-91572 SEAL-OIL, KB 13X19X13SEAL-OIL, KB 13X19X13
-
92049DK9204-91573 SEAL-OIL, TCY 48X65X8SEAL-OIL, TCY 48X65X8
-
92055K9205-51136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92065KK920-65023 GASKETGASKET
-
92066K9206-61303 PLUGPLUG
-
92145K9214-51344 SPRING, DIFF RETURNSPRING, DIFF RETURN
-
92150K9215-01884 BOLT, 6X45BOLT, 6X45
-
92151K9215-11794 BOLT, 8X50BOLT, 8X50
-
92151AK9215-11795 BOLT, 6X60BOLT, 6X60
-
92151BK9215-11910 BOLT, 10X19.5BOLT, 10X19.5
-
92152K9215-21349 COLLARCOLLAR
-
92153K9215-30870 BOLT, 8X15BOLT, 8X15
-
92170K9217-02042 CLAMPCLAMP
-
92180K9218-01390 SHIM, 62X71X0.15SHIM, 62X71X0.15
-
92180AK9218-01391 SHIM, 62X71X0.20SHIM, 62X71X0.20
-
92180BK9218-01392 SHIM, 62X71X0.50SHIM, 62X71X0.50
-
92180CK9218-01393 SHIM, 62X71X0.70SHIM, 62X71X0.70
-
92180DK9218-01394 SHIM, 62X71X0.80SHIM, 62X71X0.80
-
92180EK9218-01395 SHIM, 62X71X0.90SHIM, 62X71X0.90
-
92180FK9218-01396 SHIM, 62X71X1.00SHIM, 62X71X1.00
-
92180GK9218-01397 SHIM, 62X71X1.10SHIM, 62X71X1.10
-
92180HK9218-01398 SHIM, 62X71X1.20SHIM, 62X71X1.20
-
92180IK9218-01399 SHIM, 32X42X0.15SHIM, 32X42X0.15
-
92180JK9218-01400 SHIM, 32X42X0.20SHIM, 32X42X0.20
-
92180KK9218-01401 SHIM, 32X42X0.50SHIM, 32X42X0.50
-
92180LK9218-01402 SHIM, 32X42X0.70SHIM, 32X42X0.70
-
92180MK9218-01403 SHIM, 32X42X0.80SHIM, 32X42X0.80
-
92180NK9218-01404 SHIM, 32X42X0.90SHIM, 32X42X0.90
-
92180OK9218-01405 SHIM, 32X42X1.00SHIM, 32X42X1.00
-
92180PK9218-01406 SHIM, 32X42X1.10SHIM, 32X42X1.10
-
92180QK9218-01407 SHIM, 32X42X1.20SHIM, 32X42X1.20
-
92180RK9218-01408 SHIM, 50X61X0.15SHIM, 50X61X0.15
-
92180SK9218-01409 SHIM, 50X61X0.20SHIM, 50X61X0.20
-
92180TK9218-01410 SHIM, 50X61X0.50SHIM, 50X61X0.50
-
92180UK9218-01411 SHIM, 50X61X0.70SHIM, 50X61X0.70
-
92180VK9218-01412 SHIM, 50X61X0.80SHIM, 50X61X0.80
-
92180WK9218-01413 SHIM, 50X61X0.90SHIM, 50X61X0.90
-
92180XK9218-01414 SHIM, 50X61X1.00SHIM, 50X61X1.00
-
92180YK9218-01415 SHIM, 50X61X1.10SHIM, 50X61X1.10
-
92180ZK9218-01416 SHIM, 50X61X1.20SHIM, 50X61X1.20
-
92191K9219-11594 TUBE, 4.7X9.5X800TUBE, 4.7X9.5X800
-
92191AK9219-11638 TUBE, BREATHERTUBE, BREATHER
-
92200K9220-01635 WASHER, 10X24X2.5WASHER, 10X24X2.5
-
92210K9221-01225 NUT, 25MMNUT, 25MM
-
92210AK9221-01351 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
130KK130-G0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
132KK132-J0816 BOLT-FLANGED-SMALL, 8X16BOLT-FLANGED-SMALL, 8X16
-
132AKK132-Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
481KK481-J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
600KK600-A1100 BALL-STEEL, 11/32''BALL-STEEL, 11/32''
-
601KK601-A6305 BEARING-BALL, #6305BEARING-BALL, #6305
-
670KK670-D3022 O RINGO RING
-
671K671D-25145 O RINGO RING
