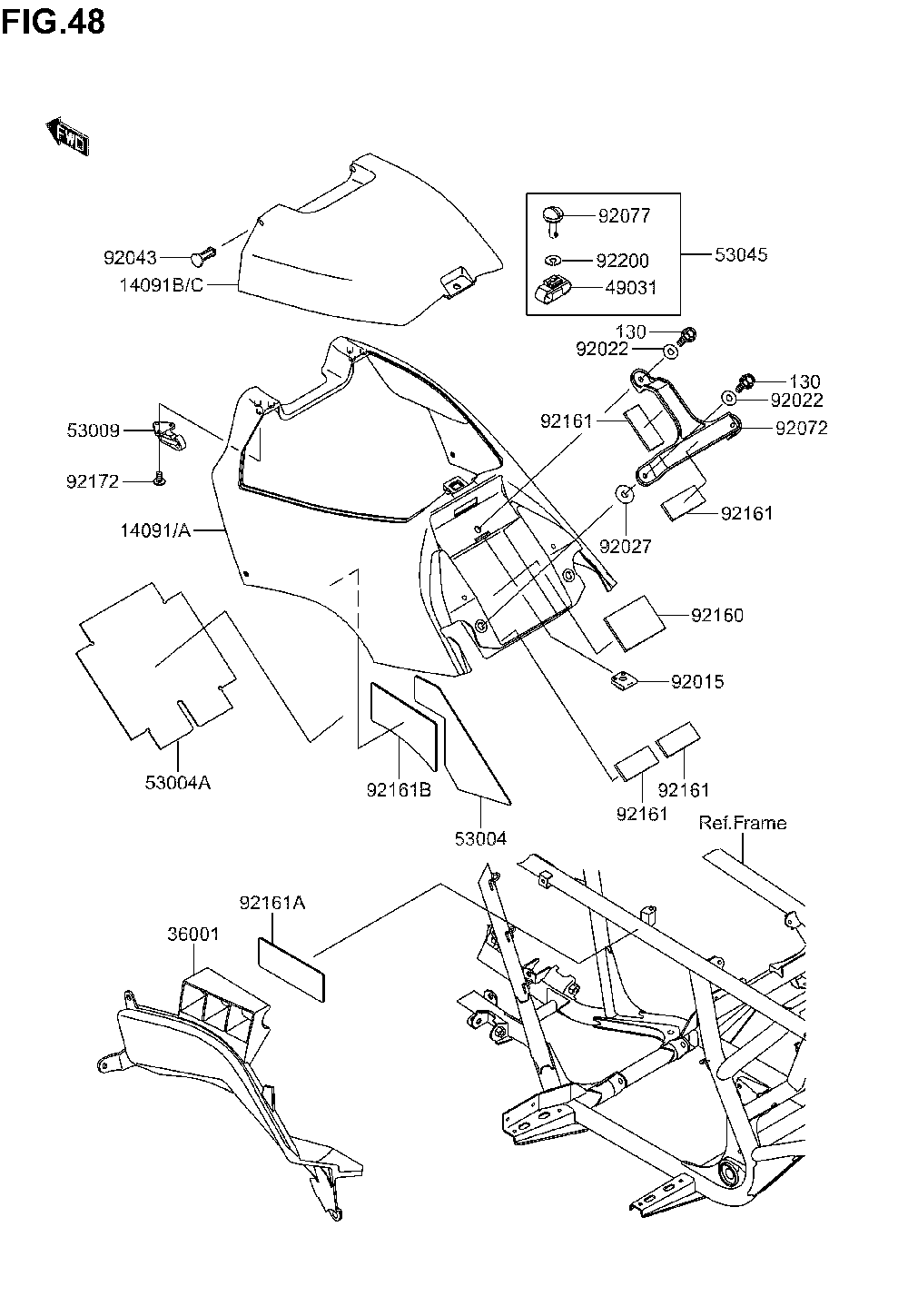

SIDE COVER для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
14091K1409-11423-267 COVER, FUEL TANK (C.YELLOW)COVER, FUEL TANK (C.YELLOW)
-
14091AK1409-11423-278 COVER, FUEL TANK (G.BLUE)COVER, FUEL TANK (G.BLUE)
-
14091BK1409-11424-267 COVER, FUEL TANK, UPPER (C.YELLOW)COVER, FUEL TANK, UPPER (C.YELLOW)
-
14091CK1409-11424-278 COVER, FUEL TANK, UPPER (G.BLUE)COVER, FUEL TANK, UPPER (G.BLUE)
-
36001K3600-11647 COVER-SIDECOVER-SIDE
-
49031K4903-11060 LATCHLATCH
-
53004K5300-41148 MAT, FUEL TANK COVERMAT, FUEL TANK COVER
-
53004AK5300-41172 MAT, BATTERY CASEMAT, BATTERY CASE
-
53009K5300-91110 HINGE, FUEL TANK COVER, FRONTHINGE, FUEL TANK COVER, FRONT
-
53045K5304-51070 HOOK-ASSY, FUEL TANK COVER, REARHOOK-ASSY, FUEL TANK COVER, REAR
-
92015K9201-51678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92022K9202-21093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92027K9202-71964 COLLAR, L=4.7COLLAR, L=4.7
-
92043K9204-31623 PIN, HINGEPIN, HINGE
-
92072K9207-21406 BAND, BATTERYBAND, BATTERY
-
92077K9207-71129 KNOBKNOB
-
92160K9216-01897 DAMPER, BATTERYDAMPER, BATTERY
-
92161K9216-11127 DAMPER, BATTERYDAMPER, BATTERY
-
92161AK9216-11201 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
92161BK9216-11202 DAMPER, FUEL TANK COVERDAMPER, FUEL TANK COVER
-
92172K9217-21061 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92200K9220-01578 WASHERWASHER
-
130KK130-J0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
Все узлы модели:
- AIR CLEANER
- BRAKE - CABLE
- BRAKE - FRONT
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAMSHAFT/TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CARRIER - FRONT / REAR
- CHASSIS ELECTRICAL EQUIPMENT
- CONTROL
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER/PISTON
- DECAL (BLUE)
- DECAL (YELLOW)
- DRIVE CONVERTER
- DRIVE SHAFT-FRONT
- DRIVE SHAFT-PROPELLER
- DRIVE SHAFT-REAR
- DRIVEN CONVERTER
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FRAME FITTING
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD
- HANDLEBAR W/ CABLES
- HEADLIGHT
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- METER
- MUFFLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (DRIVE CONVERTER)
- OPTIONAL PARTS (GUARD)
- OWNER'S TOOL
- RADIATOR
- REAR HUB
- SEAT
- SHOCK ABSORBER
- • SIDE COVER
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SWINGARM
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE
- WHEEL/TIRE
