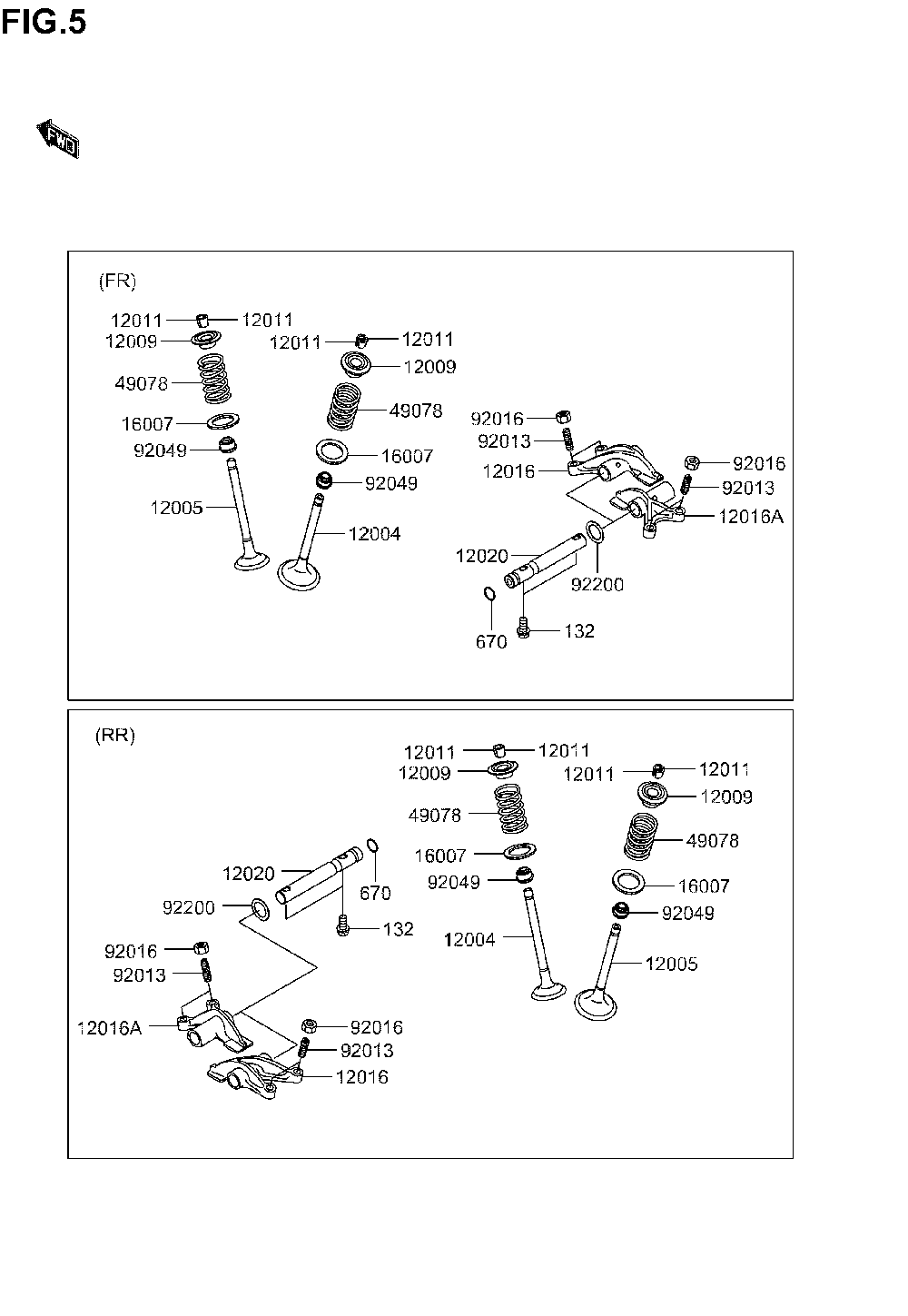

VALVE для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
12004K1200-40007 VALVE-INTAKEVALVE-INTAKE
-
12005K1200-50016 VALVE-EXHAUSTVALVE-EXHAUST
-
12009K1200-91056 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
12011K1201-11051 COLLETCOLLET
-
12016K1201-61128 ARM-ROCKER, EXHAUSTARM-ROCKER, EXHAUST
-
12016AK1201-61129 ARM-ROCKER, INTAKEARM-ROCKER, INTAKE
-
12020K1202-01083 SHAFT-ROCKERSHAFT-ROCKER
-
16007K1600-71178 SEAT-SPRING, 17.5X23.8X0.5SEAT-SPRING, 17.5X23.8X0.5
-
49078K4907-80014 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
92013KK920-13009 SCREW, 6MMSCREW, 6MM
-
92016KK920-16061 NUT, 6MMNUT, 6MM
-
92049K9204-91218 SEAL-OIL, VSB58.558SEAL-OIL, VSB58.558
-
92200K9220-01508 WASHER, ROCKER ARMWASHER, ROCKER ARM
-
132KK132-Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
670KK670-D1509 O RING, 9MMO RING, 9MM
