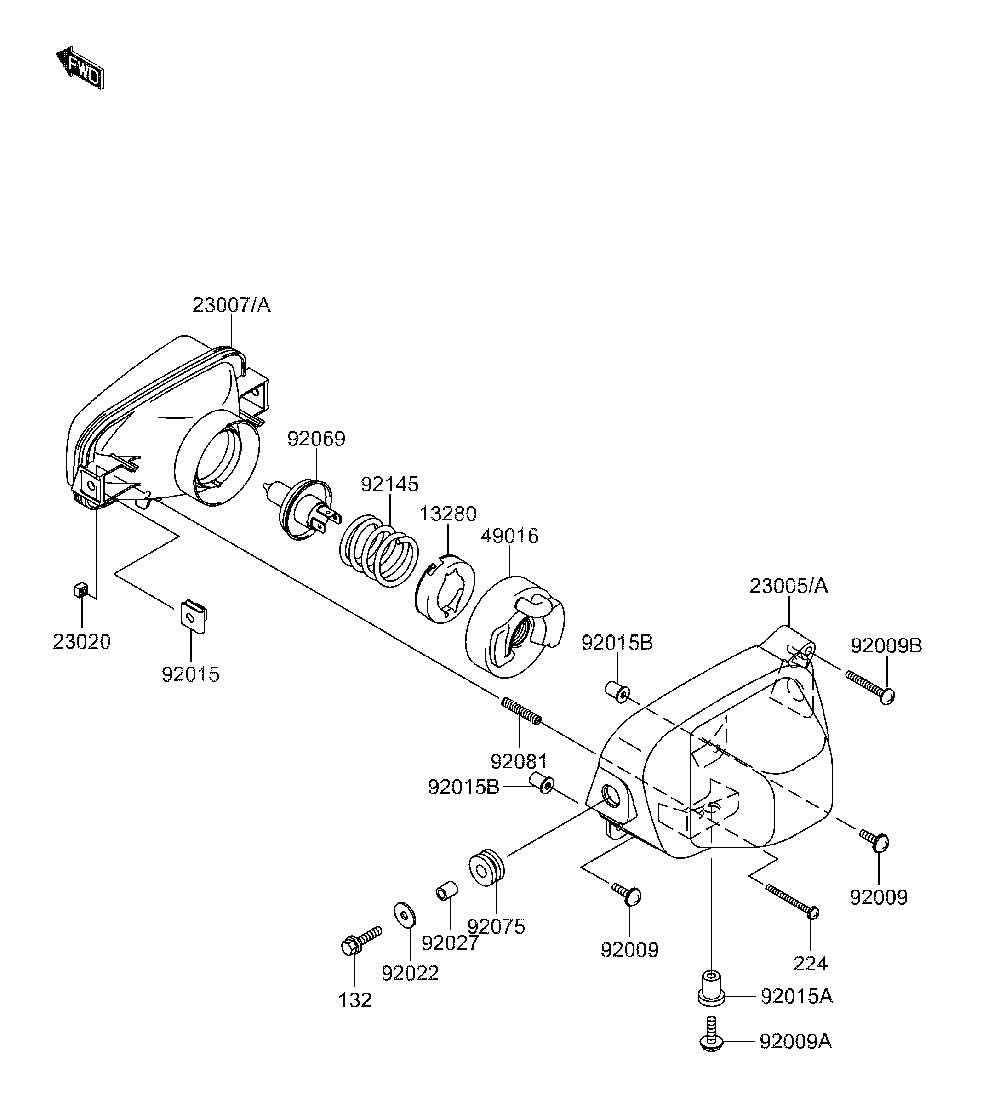

HEADLIGHT для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
13280K1328-01198 HOLDER, BULB SETTINGHOLDER, BULB SETTING
-
23005K2300-51180 BODY-COMP-HEAD LAMP, LEFT HANDBODY-COMP-HEAD LAMP, LEFT HAND
-
23005AK2300-51181 BODY-COMP-HEAD LAMP, RIGHT HANDBODY-COMP-HEAD LAMP, RIGHT HAND
-
23007K2300-71389 LENS-COMP, HEAD LAMP, LEFT HANDLENS-COMP, HEAD LAMP, LEFT HAND
-
23007AK2300-71390 LENS-COMP, HEAD LAMP, RIGHT HANDLENS-COMP, HEAD LAMP, RIGHT HAND
-
23020KK230-20018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
49016K4901-61213 COVER-SEAL, HEAD LAMPCOVER-SEAL, HEAD LAMP
-
92009K9200-91654 SCREW, 5X16, BLACKSCREW, 5X16, BLACK
-
92009AK9200-91664 SCREW, 6X22SCREW, 6X22
-
92009BK9200-91928 SCREW, TAPPING, 5X40SCREW, TAPPING, 5X40
-
92015K9201-51094 NUT, 6MMNUT, 6MM
-
92015AK9201-51692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
92015BK9201-51757 NUT, WELL, 5MMNUT, WELL, 5MM
-
92022KK920-22125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92027KK920-27162 COLLAR, 6.8X10X12COLLAR, 6.8X10X12
-
92069K9206-91114 BULB, 12V 45/45W, T15BULB, 12V 45/45W, T15
-
92075K9207-51690 DAMPERDAMPER
-
92081K9208-11896 SPRING, FOCUS ADJUSTSPRING, FOCUS ADJUST
-
92145K9214-51346 SPRING, BULB SETTINGSPRING, BULB SETTING
-
132KK132-H0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
224KK224-D0445 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
