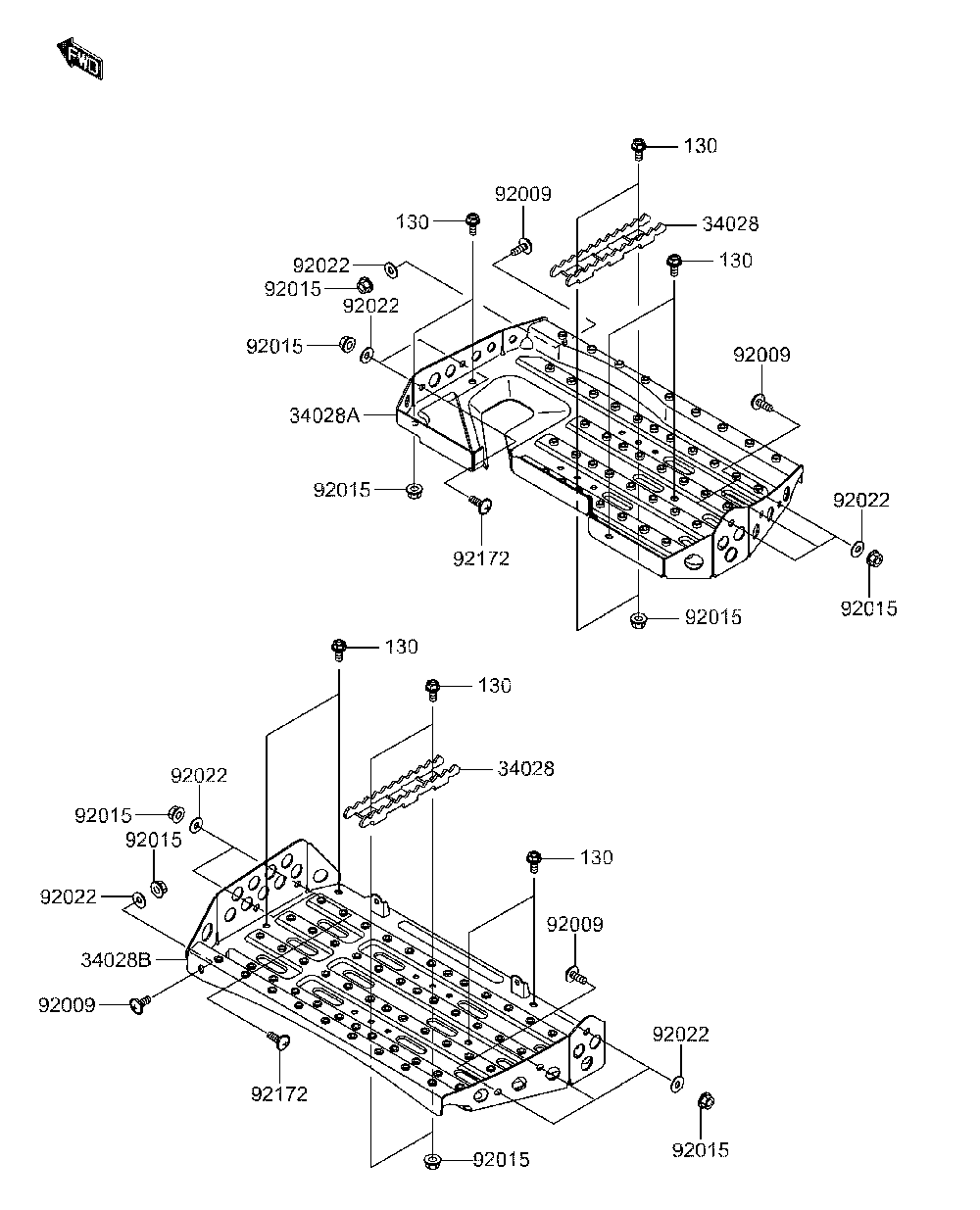

FOOTREST W/ BUMBER для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
34028KK340-28148-710 STEP, FOOT PEG, BLACKSTEP, FOOT PEG, BLACK
-
34028AKK340-28151-310 STEP, RIGHT HAND, BLACKSTEP, RIGHT HAND, BLACK
-
34028BKK340-28152-110 STEP, LEFT HAND, BLACKSTEP, LEFT HAND, BLACK
-
92009K9200-91621 SCREW, 6X16SCREW, 6X16
-
92015K9201-51367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92022K9202-21093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92172K9217-20002 SCREW, 6X18SCREW, 6X18
-
130KK130-J0614 BOLT-FLANGED, 6X14, BLACKBOLT-FLANGED, 6X14, BLACK
