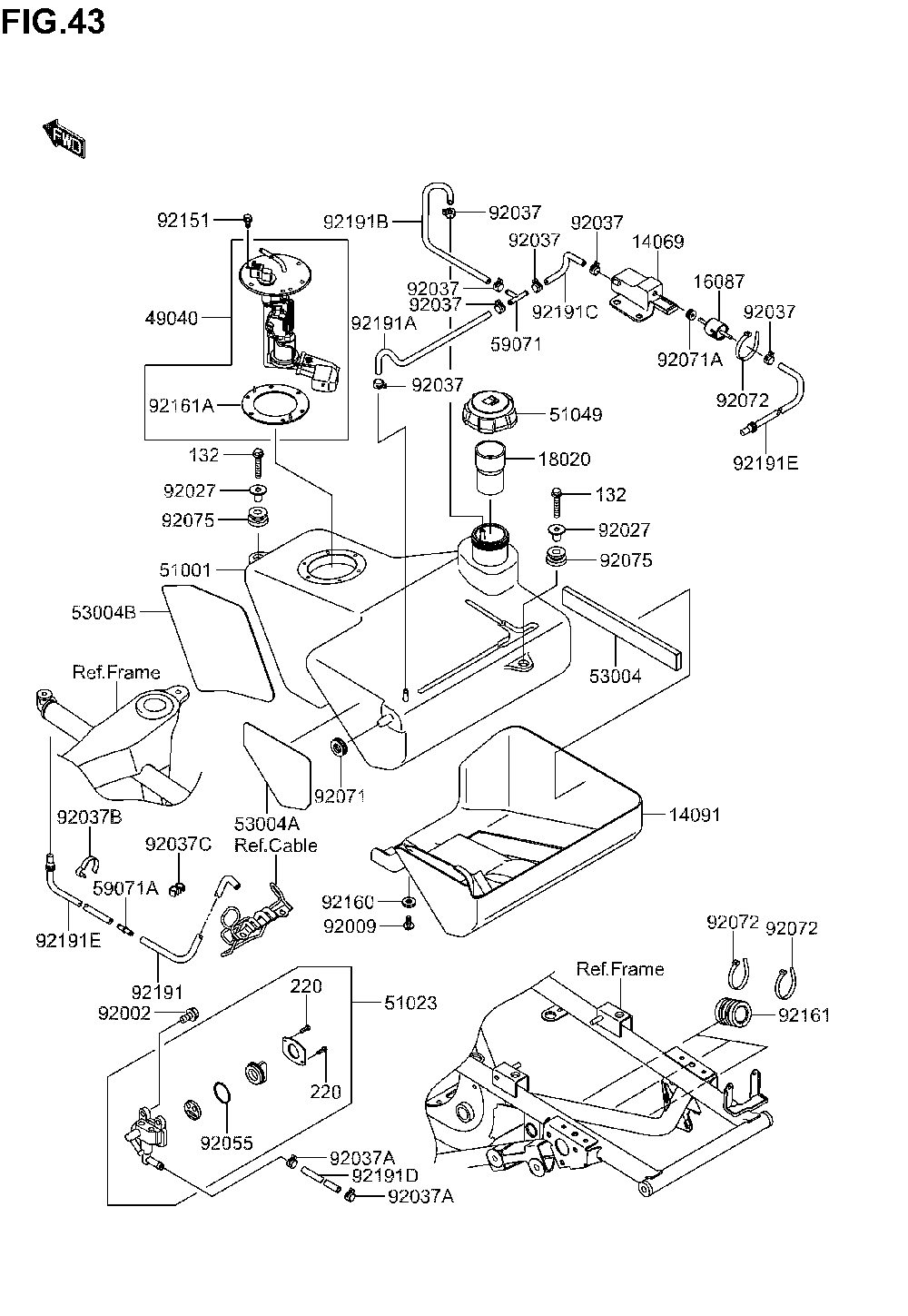

FUEL TANK для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
14069K1406-91069 BREATHER, TANKBREATHER, TANK
-
14091K1409-11404 COVER, FUEL TANKCOVER, FUEL TANK
-
16087K1608-71054 VALVE-CHECKVALVE-CHECK
-
18020K1802-01278 BAFFLE, FUEL TANK CAPBAFFLE, FUEL TANK CAP
-
49040K4904-00006 PUMP-FUELPUMP-FUEL
-
51001K5100-11638 TANK-COMP-FUELTANK-COMP-FUEL
-
51023K5102-30002 TAP-ASSY, FUELTAP-ASSY, FUEL
-
51049K5104-91128 CAP-TANK, FUELCAP-TANK, FUEL
-
53004K5300-41161 MAT, FUEL TANK COVERMAT, FUEL TANK COVER
-
53004AK5300-41164 MAT, FUEL TANKMAT, FUEL TANK
-
53004BK5300-41165 MAT, FUEL TANKMAT, FUEL TANK
-
59071K5907-13705 JOINTJOINT
-
59071AK5907-13717 JOINTJOINT
-
92002K9200-21569 BOLT, 6X12BOLT, 6X12
-
92009K9200-91480 SCREW, 6X12SCREW, 6X12
-
92027K9202-71847 COLLAR, L=16.1COLLAR, L=16.1
-
92037K9203-71461 CLAMP, TUBECLAMP, TUBE
-
92037AK9203-71505 CLAMP, TUBECLAMP, TUBE
-
92037BK9203-71552 CLAMP, HOSECLAMP, HOSE
-
92037CK9203-71603 CLAMP, HOSECLAMP, HOSE
-
92055K9205-50017 RING-ORING-O
-
92071K9207-11249 GROMMETGROMMET
-
92071AK9207-11266 GROMMETGROMMET
-
92072K9207-21239 BAND, L=188BAND, L=188
-
92075K9207-51787 DAMPERDAMPER
-
92151K9215-11754 BOLT, FLANGED, 5X11.5BOLT, FLANGED, 5X11.5
-
92160K9216-01017 DAMPERDAMPER
-
92161K9216-11111 DAMPER, FUEL TANK, RRDAMPER, FUEL TANK, RR
-
92161AK9216-11272 DAMPER, FUEL PUMPDAMPER, FUEL PUMP
-
92191K9219-11384 TUBE, CANISTER-SEPARATOR, BLUETUBE, CANISTER-SEPARATOR, BLUE
-
92191AK9219-11639 TUBE, TANK-FRONTTUBE, TANK-FRONT
-
92191BK9219-11640 TUBE, TANK-REARTUBE, TANK-REAR
-
92191CK9219-11641 TUBE, 5X9X160TUBE, 5X9X160
-
92191DK9219-11665 TUBE, 5.3X10.5X425TUBE, 5.3X10.5X425
-
92191EK9219-11666 TUBE, TANK BREATHERTUBE, TANK BREATHER
-
132KK132-V0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220KK220-B0308 SCREW-PAN-CROSSCREW-PAN-CROS
