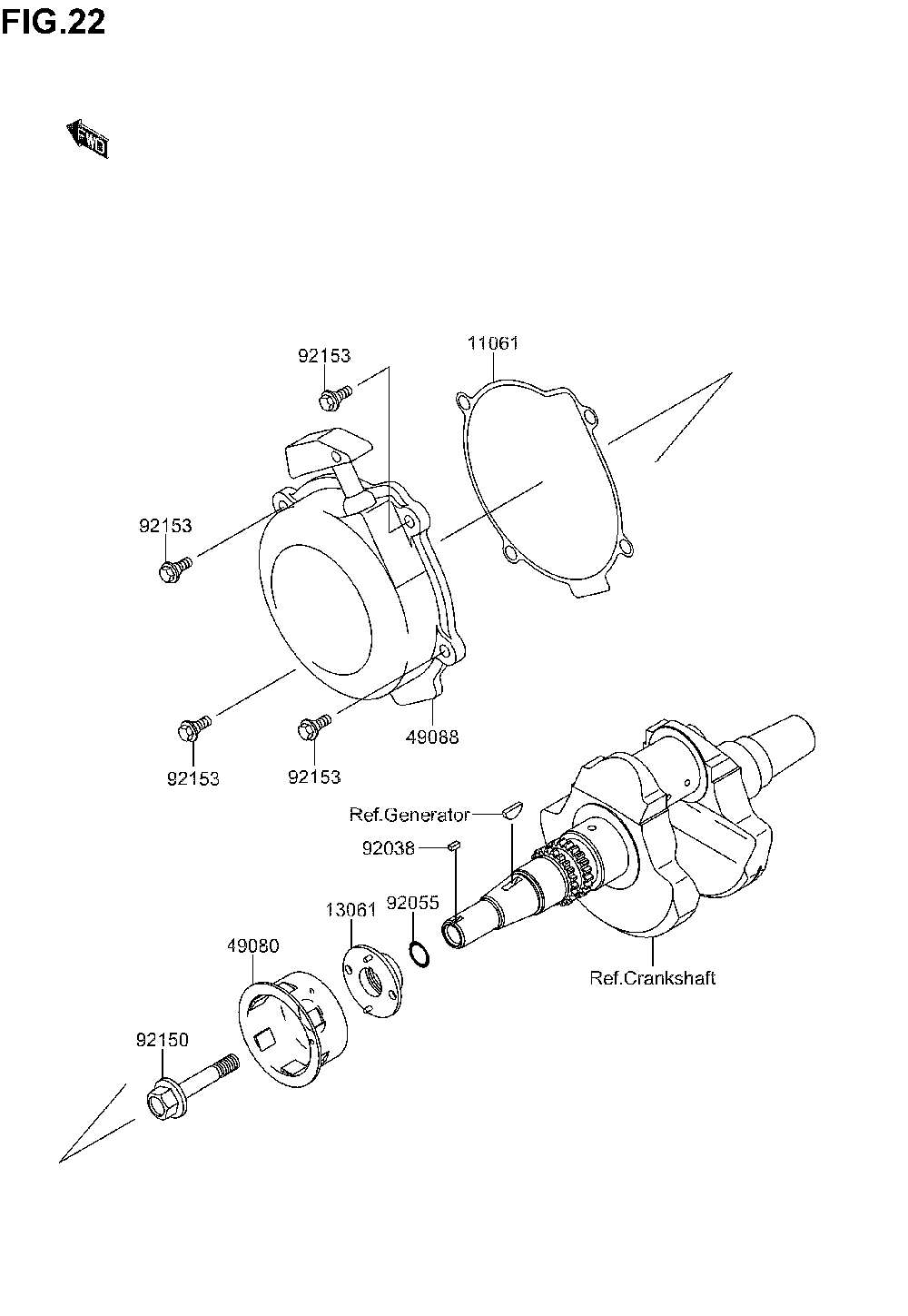

STARTER - RECOIL для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11061K1106-11153 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
13061K1306-11873 BOSSBOSS
-
49080K4908-01061 PULLEY-STARTINGPULLEY-STARTING
-
49088K4908-80001 STARTER-RECOILSTARTER-RECOIL
-
92038K9203-81051 KEY, SUNKKEY, SUNK
-
92055K9205-51215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
92150K9215-01987 BOLT, PULLEYBOLT, PULLEY
-
92153K9215-37007 BOLTBOLT
