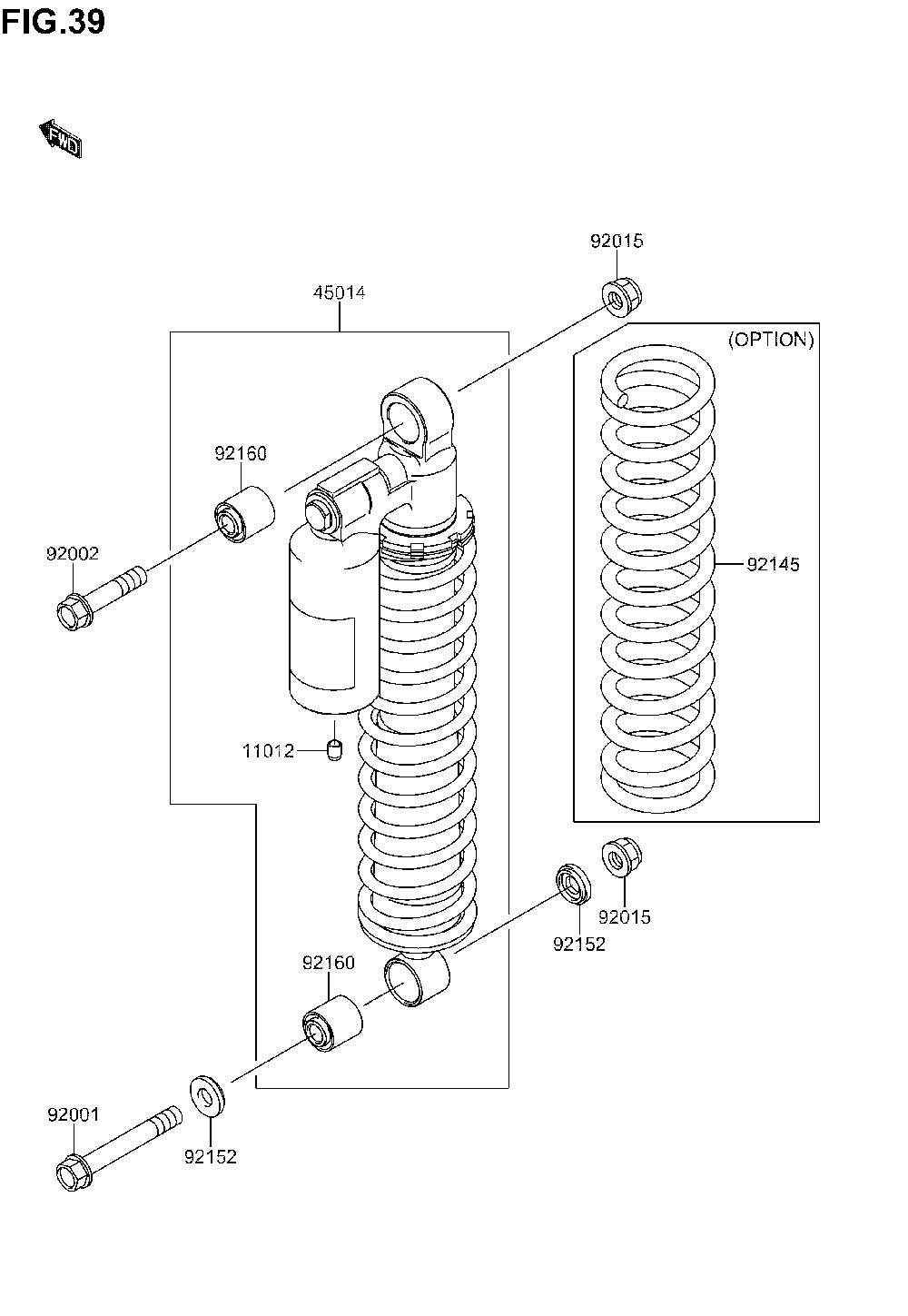

SHOCK ABSORBER для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11012K1101-21283 CAPCAP
-
45014K4501-40047 SHOCKABSORBERSHOCKABSORBER
-
92001K9200-11693 BOLT, FLANGED, 12X88BOLT, FLANGED, 12X88
-
92002K9200-21840 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
92015K9201-51617 NUT, FLANGED, LOCK, 12MMNUT, FLANGED, LOCK, 12MM
-
92145K9214-50231 SPRING, REAR SHOCK, K=24.5N/MMSPRING, REAR SHOCK, K=24.5N/MM
-
92152K9215-21293 COLLARCOLLAR
-
92160K9216-01777 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
