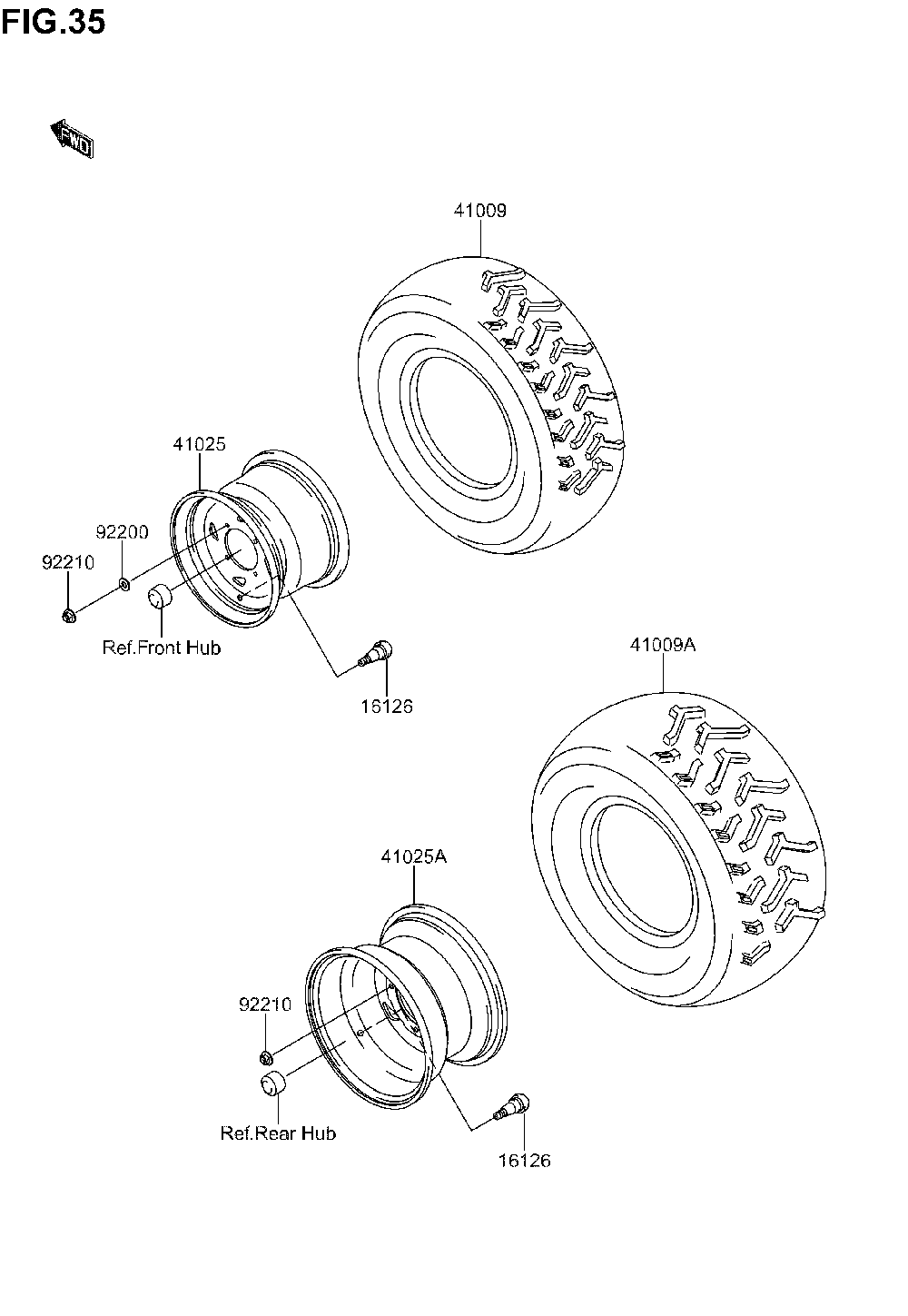

WHEEL/TIRE для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
16126K1612-64001 VALVEVALVE
-
41009K4100-91117 TIRE, FRONT, AT25X8-12, KT121A(D)TIRE, FRONT, AT25X8-12, KT121A(D)
-
41009AK4100-91380 TIRE, REAR, AT25X10-12, KT127ATIRE, REAR, AT25X10-12, KT127A
-
41025KK410-25137-55A RIM, FRONT, 12X6.0, SILVERRIM, FRONT, 12X6.0, SILVER
-
41025AKK410-25142-65A RIM, REAR, 12X7.5AT, SILVERRIM, REAR, 12X7.5AT, SILVER
-
92200K9220-01595 WASHER, 10.5X25X1.6WASHER, 10.5X25X1.6
-
92210K9221-01325 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
