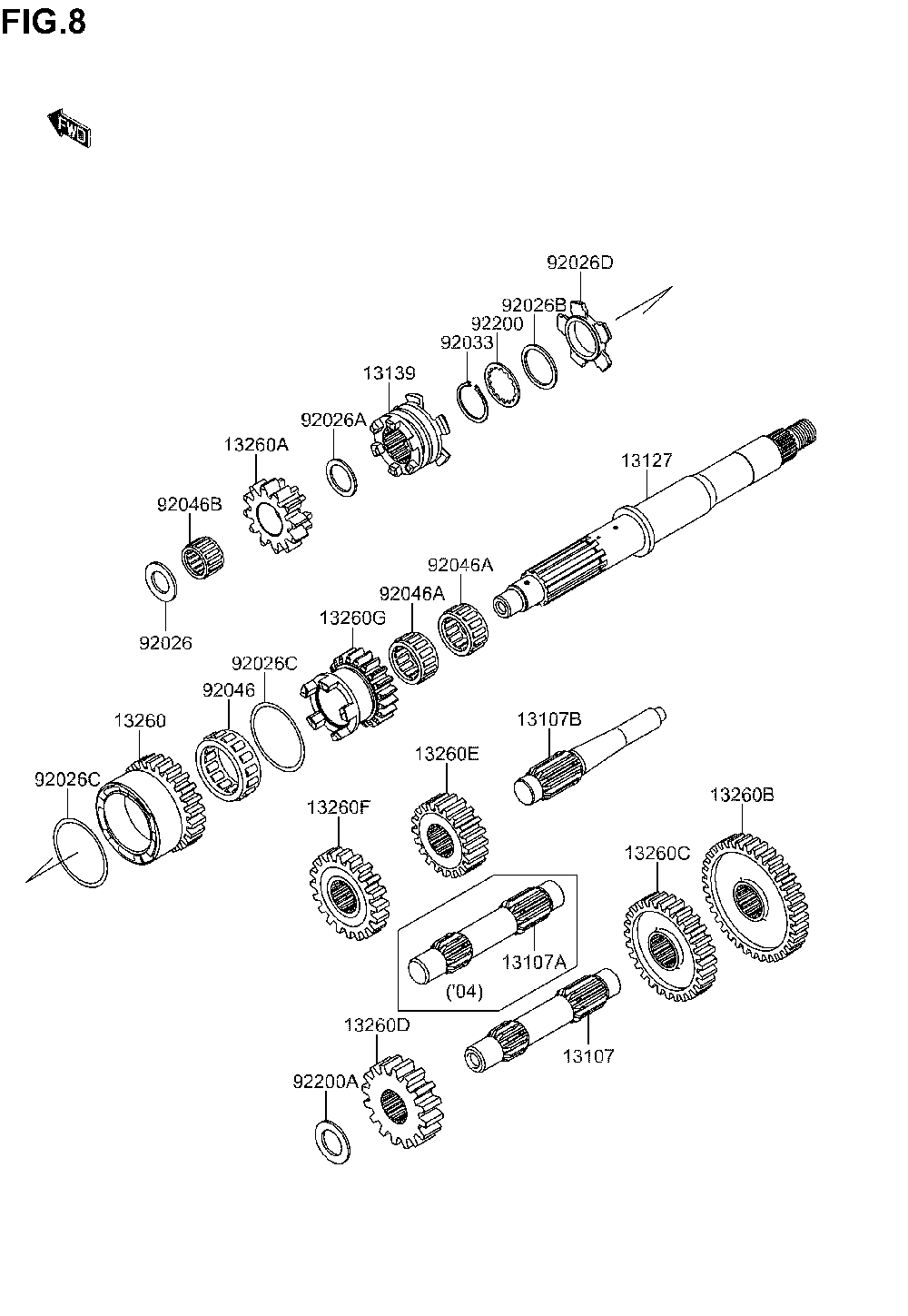

TRANSMISSION для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
13107AK1310-71436 SHAFT, COUNTERSHAFT, COUNTER
-
13107BK1310-71437 SHAFT, REVERSE, IDLESHAFT, REVERSE, IDLE
-
13127K1312-71282 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
13139K1313-90003 SHIFTERSHIFTER
-
13260K1326-01867 GEAR, INPUT HIGH, 26TGEAR, INPUT HIGH, 26T
-
13260AK1326-01868 GEAR, INPUT REVERSE, 12TGEAR, INPUT REVERSE, 12T
-
13260BK1326-01869 GEAR, DRIVEN LOW, 36TGEAR, DRIVEN LOW, 36T
-
13260CK1326-01870 GEAR, DRIVEN HIGH, 30TGEAR, DRIVEN HIGH, 30T
-
13260DK1326-01871 GEAR, OUTPUT DRIVE, 18TGEAR, OUTPUT DRIVE, 18T
-
13260EK1326-01872 GEAR, OUTPUT REVERSE, 16TGEAR, OUTPUT REVERSE, 16T
-
13260FK1326-01873 GEAR, DRIVEN REVERSE, 16TGEAR, DRIVEN REVERSE, 16T
-
13260GK1326-01935 GEAR, INPUT LOW, 20TGEAR, INPUT LOW, 20T
-
92026K9202-61415 SPACER, 17.3X30X2.0SPACER, 17.3X30X2.0
-
92026AK9202-61568 SPACER, 21.2X29X1.6SPACER, 21.2X29X1.6
-
92026BK9202-61587 SPACER, 28.2X34.5X1.6SPACER, 28.2X34.5X1.6
-
92026CK9202-61599 SPACER, 48.2X54.3X1.0SPACER, 48.2X54.3X1.0
-
92026DK9202-61600 SPACER, HIANDLOWSPACER, HIANDLOW
-
92033K9203-31037 RING-SNAP, T=1.2RING-SNAP, T=1.2
-
92046K9204-61276 BEARING-NEEDLE, HIGH GEARBEARING-NEEDLE, HIGH GEAR
-
92046AK9204-61278 BEARING-NEEDLE, LOW GEARBEARING-NEEDLE, LOW GEAR
-
92046BK9204-61279 BEARING-NEEDLE, REVERSE GEARBEARING-NEEDLE, REVERSE GEAR
-
92200K9220-01240 WASHER, T=1.5WASHER, T=1.5
-
92200AK9220-01351 WASHER, 20.3X33X2.0WASHER, 20.3X33X2.0
