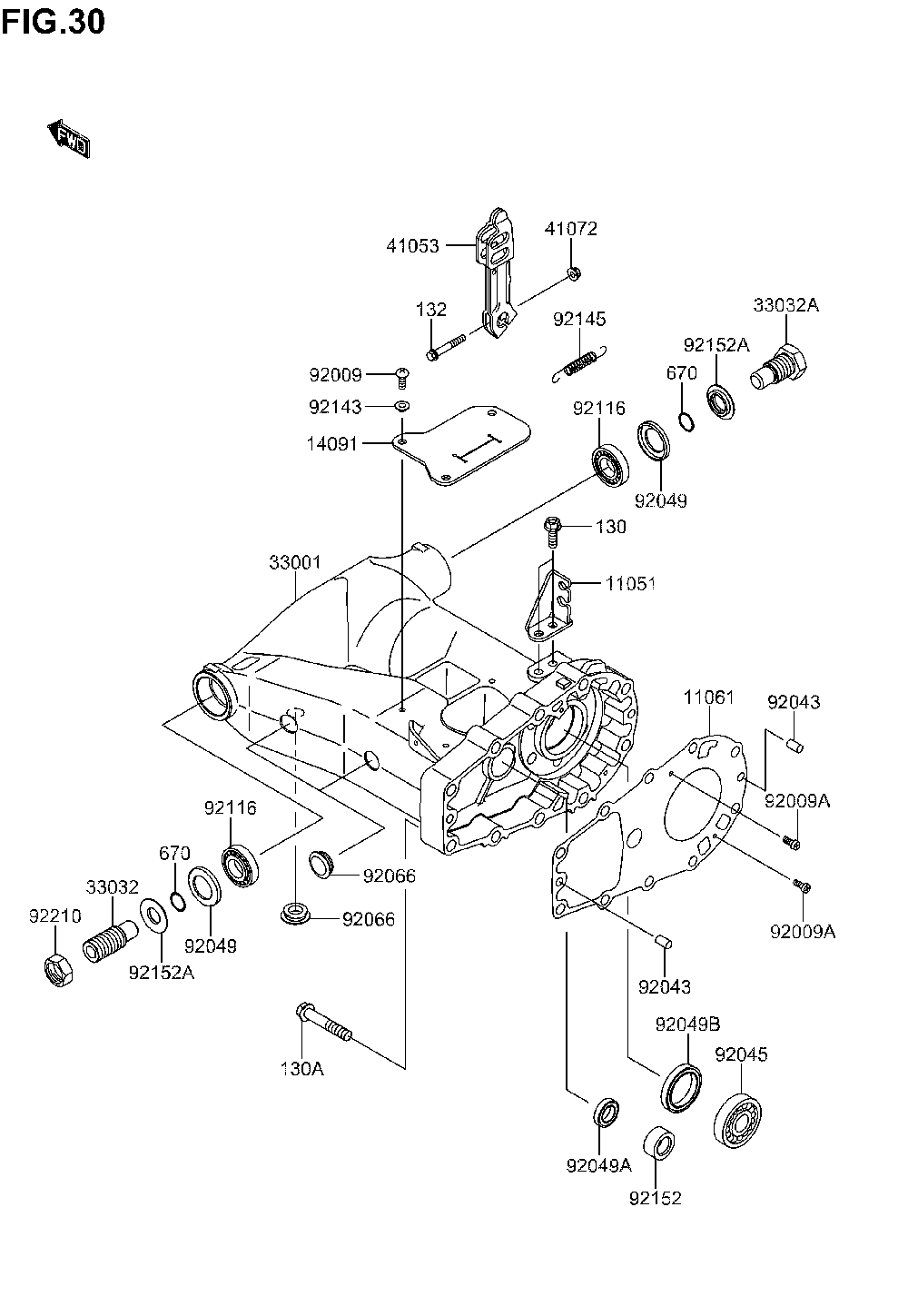

SWINGARM для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11051K1105-11762 BRACKET, CABLEBRACKET, CABLE
-
11061K1106-11065 GASKET, SWING ARMGASKET, SWING ARM
-
14091K1409-17508 COVERCOVER
-
33001K3300-10008 ARM-COMP-SWINGARM-COMP-SWING
-
33032K3303-21197 SHAFT-SWING ARM, LEFT SIDESHAFT-SWING ARM, LEFT SIDE
-
33032AK3303-21200 SHAFT-SWING ARM, RIGHT SIDESHAFT-SWING ARM, RIGHT SIDE
-
41053K4105-31094 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
41072KK410-72007 NUT, 6MMNUT, 6MM
-
92009K9200-91166 SCREWSCREW
-
92009AK9200-91936 SCREW, 4X10SCREW, 4X10
-
92043K9204-31567 PIN, 8X14PIN, 8X14
-
92045K9204-51427 BEARING-BALL, TMBO/28C3BEARING-BALL, TMBO/28C3
-
92049K9204-91030 SEAL-OIL, 26406SEAL-OIL, 26406
-
92049AK9204-91537 SEAL-OIL, TC17X28X6SEAL-OIL, TC17X28X6
-
92049BK9204-91538 SEAL-OIL, HTC35X48X7SEAL-OIL, HTC35X48X7
-
92066K9206-61534 PLUGPLUG
-
92116K9211-61001 BEARING-ROLLER, 4T30203E1BEARING-ROLLER, 4T30203E1
-
92143K9214-31331 COLLARCOLLAR
-
92145K9214-51313 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
92152K9215-21240 COLLARCOLLAR
-
92152AK9215-21356 COLLARCOLLAR
-
92210K9221-00190 NUT, 22MMNUT, 22MM
-
130KK130-J0822 BOLT-FLANGEDBOLT-FLANGED
-
130AKK130-P1055 BOLT-FLANGEDBOLT-FLANGED
-
132KK132-G0640 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
670KK670-B2016 O RING, 16MMO RING, 16MM
