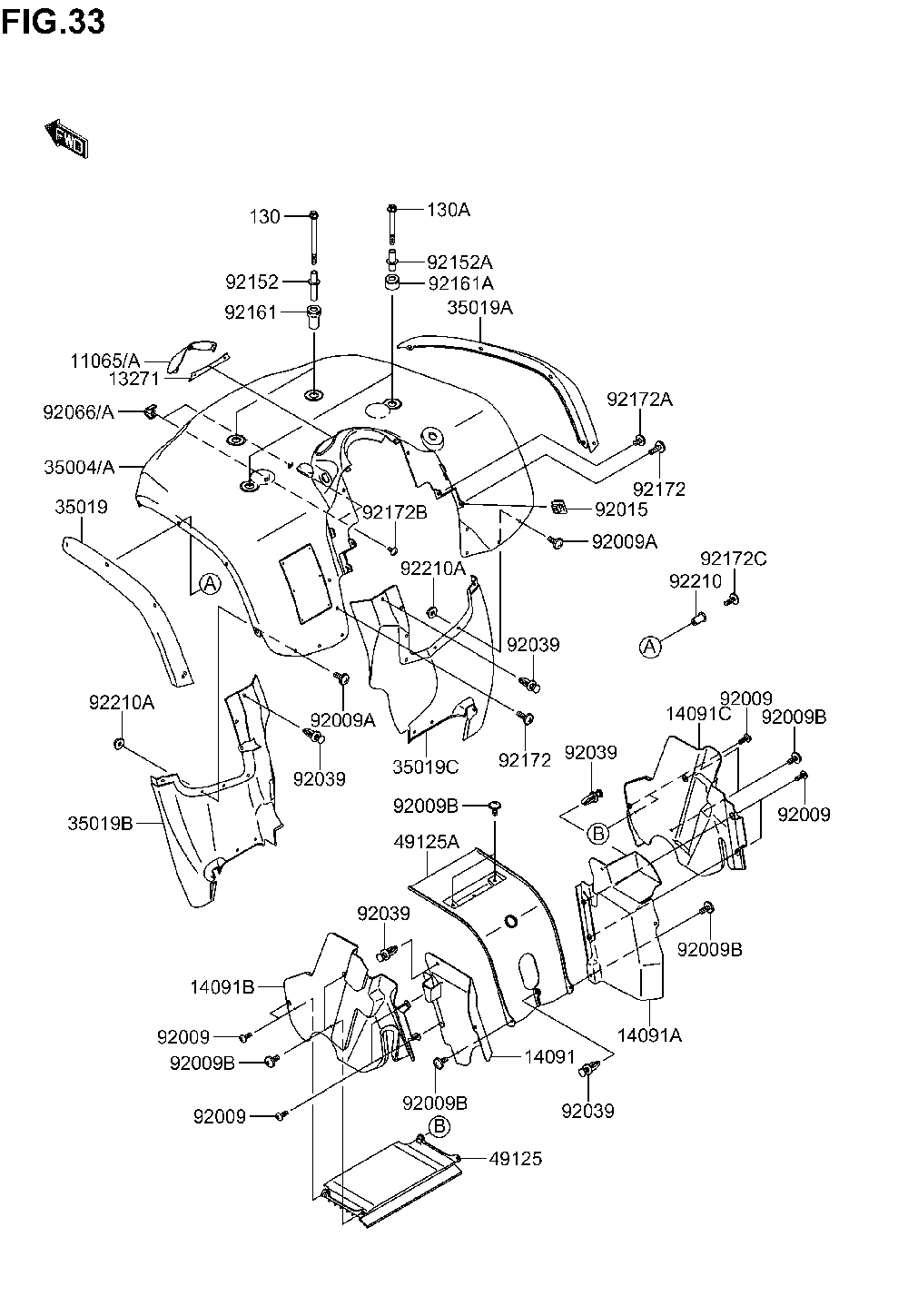

FENDER - FRONT для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11065K1106-51204-267 CAP, FRONT FENDER (C.YELLOW)CAP, FRONT FENDER (C.YELLOW)
-
11065AK1106-51204-278 CAP, FRONT FENDER (G.BLUE)CAP, FRONT FENDER (G.BLUE)
-
13271K1327-11640 PLATE, FRONT FENDER CAPPLATE, FRONT FENDER CAP
-
14091K1409-11282 COVER, SIDE, REAR, LEFT HANDCOVER, SIDE, REAR, LEFT HAND
-
14091AK1409-11283 COVER, SIDE, REAR, RIGHT HANDCOVER, SIDE, REAR, RIGHT HAND
-
14091BK1409-11428 COVER, SIDE, FRONT, LEFT HANDCOVER, SIDE, FRONT, LEFT HAND
-
14091CK1409-11429 COVER, SIDE, FRONT, RIGHT HANDCOVER, SIDE, FRONT, RIGHT HAND
-
35004K3500-41452-267 FENDER-FRONT (C.YELLOW)FENDER-FRONT (C.YELLOW)
-
35004AK3500-41452-278 FENDER-FRONT (G.BLUE)FENDER-FRONT (G.BLUE)
-
35019KK350-19136-56Z FLAP, FRONT, SIDE, LEFT HAND (F.BLACK)FLAP, FRONT, SIDE, LEFT HAND (F.BLACK)
-
35019AKK350-19136-66Z FLAP, FRONT, SIDE, RIGHT HAND (F.BLACK)FLAP, FRONT, SIDE, RIGHT HAND (F.BLACK)
-
35019BKK350-19139-16Z FLAP, FRONT, REAR, LEFT HAND (F.BLACK)FLAP, FRONT, REAR, LEFT HAND (F.BLACK)
-
35019CKK350-19139-26Z FLAP, FRONT, REAR, RIGHT HAND (F.BLACK)FLAP, FRONT, REAR, RIGHT HAND (F.BLACK)
-
49125K4912-50006 SHROUD, FRONT, LOWERSHROUD, FRONT, LOWER
-
49125AK4912-51081 SHROUD, FRONT, UPPERSHROUD, FRONT, UPPER
-
92009K9200-91197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009AK9200-91621 SCREW, 6X16SCREW, 6X16
-
92009BK9200-91662 SCREW, 6X14SCREW, 6X14
-
92015K9201-51678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92039K9203-91229 RIVETRIVET
-
92066K9206-60028-267 PLUG, FRONT FENDER (C.YELLOW)PLUG, FRONT FENDER (C.YELLOW)
-
92066AK9206-60028-278 PLUG, FRONT FENDER (G.BLUE)PLUG, FRONT FENDER (G.BLUE)
-
92152K9215-20025 COLLAR, L=90COLLAR, L=90
-
92152AK9215-20026 COLLAR, L=60.7COLLAR, L=60.7
-
92161K9216-10035 DAMPER, L=58.5DAMPER, L=58.5
-
92161AK9216-11166 DAMPER, L=25.5DAMPER, L=25.5
-
92172K9217-20002 SCREW, 6X18SCREW, 6X18
-
92172AK9217-20005 SCREW, 6X10SCREW, 6X10
-
92172BK9217-20172 SCREW, TAPPING, 4X10SCREW, TAPPING, 4X10
-
92172CK9217-21063 SCREW, 5X18SCREW, 5X18
-
92210K9221-00012 NUT, POP, 5MMNUT, POP, 5MM
-
92210AK9221-01368 NUT, 6MMNUT, 6MM
-
130K130S-08105 BOLT-FLANGEDBOLT-FLANGED
-
130AKK130-S0875 BOLT-FLANGEDBOLT-FLANGED
