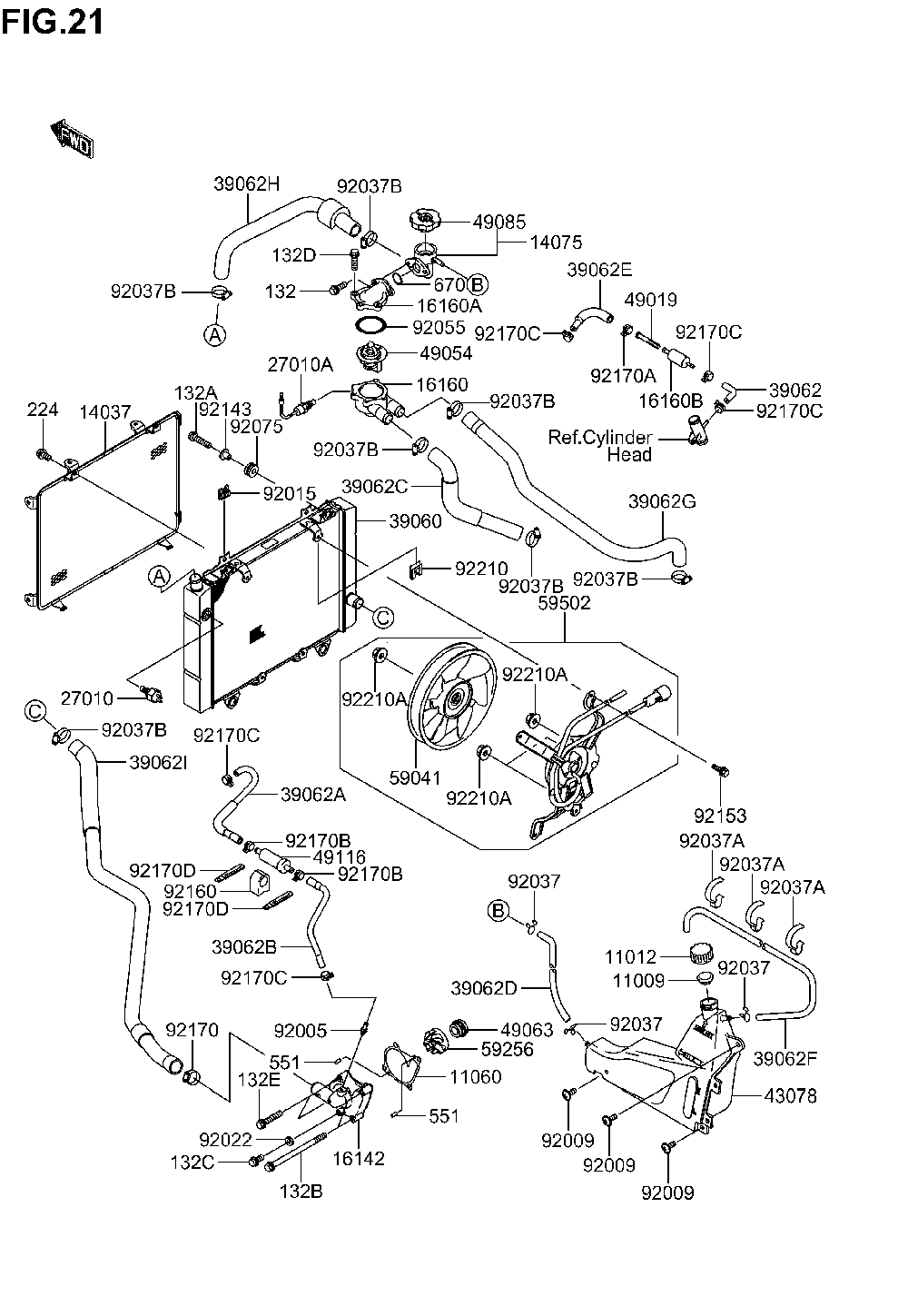

RADIATOR для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11009K1100-91145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11012K1101-21084 CAPCAP
-
11060K1106-01964 GASKET, WATER PUMPGASKET, WATER PUMP
-
14037K1403-71283 SCREEN, RADIATORSCREEN, RADIATOR
-
14075K1407-51105 CAP-ASSY, PRESSURECAP-ASSY, PRESSURE
-
16142K1614-20002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
16160K1616-01112 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
16160AK1616-01113 BODY, THERMOSTAT, UPPERBODY, THERMOSTAT, UPPER
-
16160BK1616-01359 BODYBODY
-
27010K2701-01202 SWITCH, FANSWITCH, FAN
-
27010AK2701-01346 SWITCH, SENSOR WATERSWITCH, SENSOR WATER
-
39060K3906-00011 RADIATORRADIATOR
-
39062K3906-21816 HOSE-COOLING, HEAD-FILTERHOSE-COOLING, HEAD-FILTER
-
39062AK3906-21817 HOSE-COOLING, CARB-VALVEHOSE-COOLING, CARB-VALVE
-
39062BK3906-21818 HOSE-COOLING, VALVE-WATER PUMPHOSE-COOLING, VALVE-WATER PUMP
-
39062CK3906-21820 HOSE-COOLING, HEAD, FRONT-THERMOHOSE-COOLING, HEAD, FRONT-THERMO
-
39062DK3906-21823 HOSE-COOLING, THERMO-RESERVHOSE-COOLING, THERMO-RESERV
-
39062EK3906-21858 HOSE-COOLING, FILTER-CARBHOSE-COOLING, FILTER-CARB
-
39062FK3906-21872 HOSE-COOLING, 5.5X10.5X1030HOSE-COOLING, 5.5X10.5X1030
-
39062GK3906-21874 HOSE-COOLING, HEAD, REAR-THERMOHOSE-COOLING, HEAD, REAR-THERMO
-
39062HK3906-21875 HOSE-COOLING, THERMO-RADIATORHOSE-COOLING, THERMO-RADIATOR
-
39062IK3906-21893 HOSE-COOLING, RADIATOR-PUMPHOSE-COOLING, RADIATOR-PUMP
-
43078K4307-81171 RESERVOIRRESERVOIR
-
49019K4901-91068 FILTER-WATERFILTER-WATER
-
49054K4905-41055 THERMOSTATTHERMOSTAT
-
49063K4906-31055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
49085K4908-51067 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
49116K4911-61190 VALVE-ASSYVALVE-ASSY
-
59041K5904-11062 FANFAN
-
59256K5925-61069 IMPELLERIMPELLER
-
59502K5950-20012 FAN-ASSYFAN-ASSY
-
92005K9200-51337 FITTINGFITTING
-
92009K9200-91621 SCREW, 6X16SCREW, 6X16
-
92015K9201-51487 NUTNUT
-
92022KK920-22304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
92037KK920-37147 CLAMP, TUBECLAMP, TUBE
-
92037AK9203-71552 CLAMP, HOSECLAMP, HOSE
-
92037BK9203-71589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92055K9205-51279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
92075KK920-75209 DAMPERDAMPER
-
92143K9214-31353 COLLARCOLLAR
-
92153K9215-30531 BOLTBOLT
-
92160K9216-01451 DAMPER, VALVEDAMPER, VALVE
-
92170K9217-01286 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170AK9217-01491 CLAMPCLAMP
-
92170BK9217-01492 CLAMPCLAMP
-
92170CK9217-01493 CLAMPCLAMP
-
92170DK9217-01514 CLAMPCLAMP
-
92210K9221-01323 NUTNUT
-
92210AK9221-01396 NUTNUT
-
132KK132-H0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132AKK132-H0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132BKK132-J0690 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132CKK132-Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132DKK132-Y0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132EKK132-Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
224KK224-C0612 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
551KK551-A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
670KK670-B2020 O RING, 20MMO RING, 20MM
