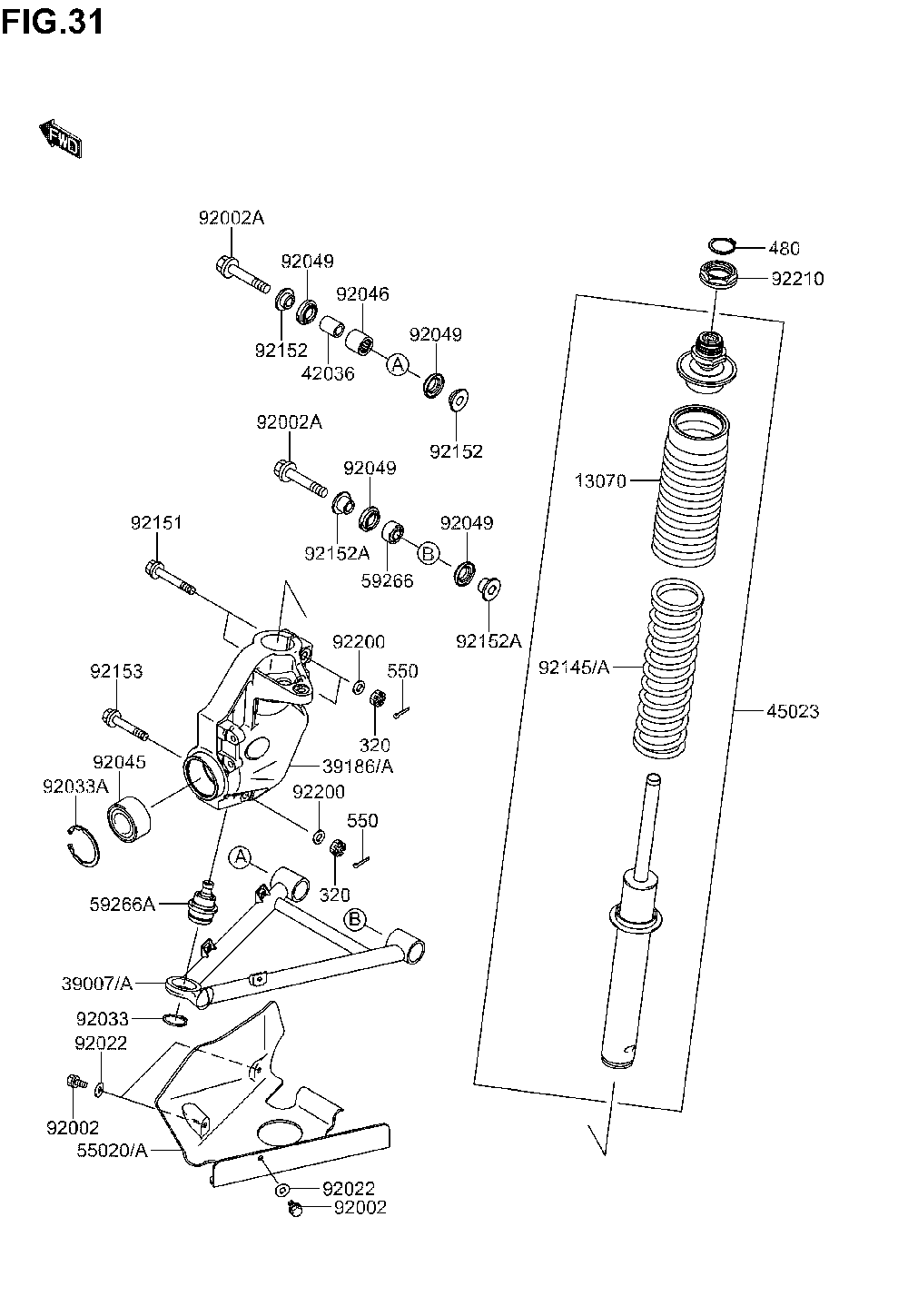

SUSPENSION для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
13070K1307-01383 GUIDE, STRUTGUIDE, STRUT
-
39007K3900-71304 ARM-SUSP, LEFT HANDARM-SUSP, LEFT HAND
-
39007AK3900-71305 ARM-SUSP, RIGHT HANDARM-SUSP, RIGHT HAND
-
39186K3918-60001 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
39186AK3918-60002 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
42036K4203-61365 SLEEVE, 12X20X26.7SLEEVE, 12X20X26.7
-
45023K4502-31014 STRUTSTRUT
-
55020K5502-00073 GUARD, FRONT AXLE, LEFT HANDGUARD, FRONT AXLE, LEFT HAND
-
55020AK5502-00074 GUARD, FRONT AXLE, RIGHT HANDGUARD, FRONT AXLE, RIGHT HAND
-
59266K5926-61118 JOINT-BALLJOINT-BALL
-
59266AK5926-61127 JOINT-BALLJOINT-BALL
-
92002K9200-21569 BOLT, 6X12BOLT, 6X12
-
92002AK9200-21861 BOLT, FLANGED, 12X67BOLT, FLANGED, 12X67
-
92022K9202-21344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
92033K9203-31218 RING-SNAP, 30MMRING-SNAP, 30MM
-
92033AK9203-31274 RING-SNAP, 55MMRING-SNAP, 55MM
-
92045K9204-51448 BEARING-BALL, 30BWD08ABEARING-BALL, 30BWD08A
-
92046K9204-61290 BEARING-NEEDLE, TA202725ZEBEARING-NEEDLE, TA202725ZE
-
92049K9204-91539 SEAL-OIL, MF020N3SEAL-OIL, MF020N3
-
92145K9214-50009 SPRING, STRUT, K=1.1SPRING, STRUT, K=1.1
-
92145AK9214-51445 SPRING, STRUT, K=1.0SPRING, STRUT, K=1.0
-
92151K9215-11709 BOLT, FLANGED, 10X65BOLT, FLANGED, 10X65
-
92152K9215-21295 COLLARCOLLAR
-
92152AK9215-21296 COLLARCOLLAR
-
92153K9215-37501 BOLT, FLANGED, 10X58BOLT, FLANGED, 10X58
-
92200K9220-01042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
92210K9221-01226 NUT, FLANGED, 35MMNUT, FLANGED, 35MM
-
320KK320-H1000 NUT-CASTLENUT-CASTLE
-
480KK480-J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
550KK550-D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
