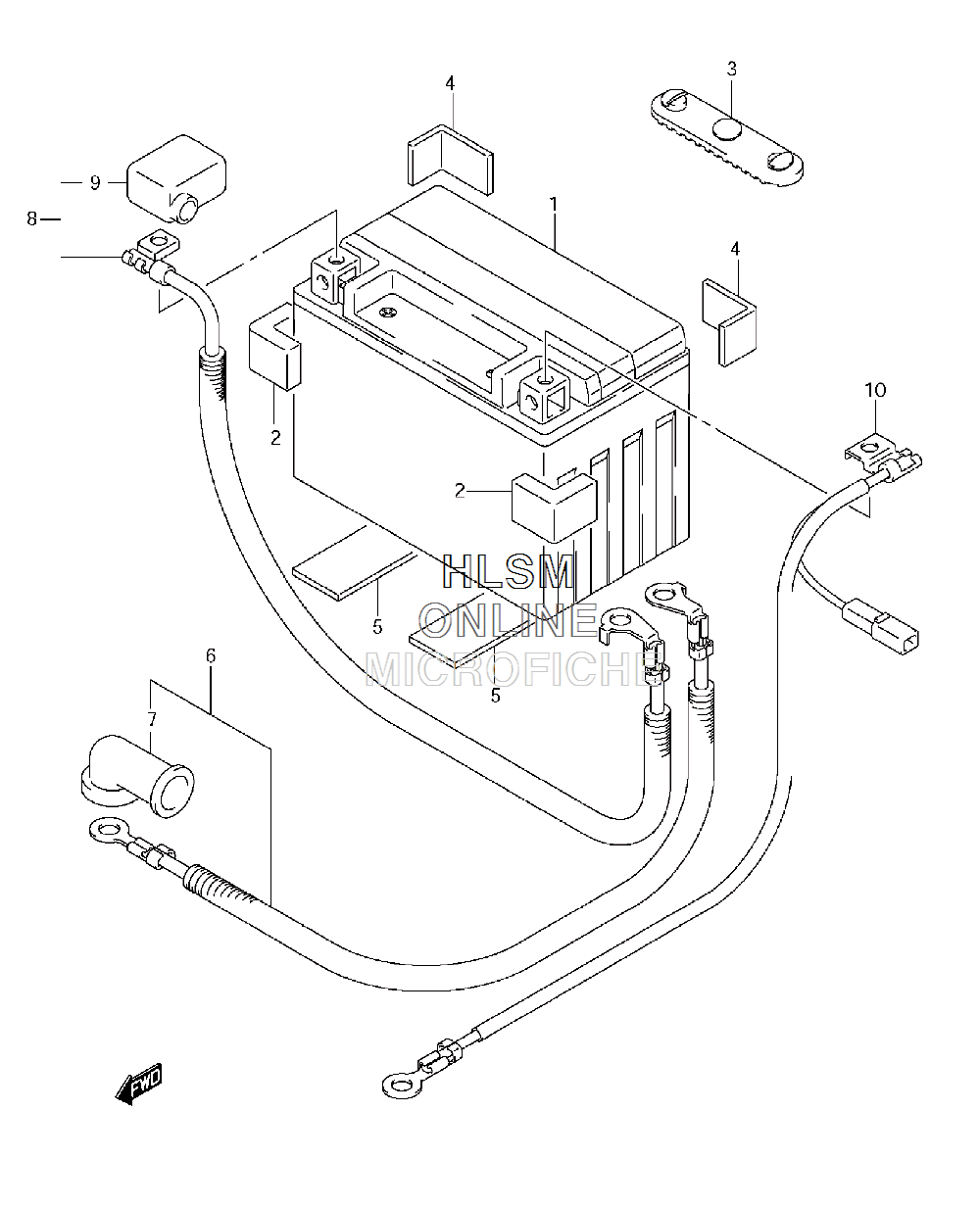

BATTERY для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
133610-32C10 BATTERY ASSY (YTX-9-BS)BATTERY ASSY (YTX-9-BS)
-
233652-35400 PROTECTOR (20X50X8)PROTECTOR (20X50X8)
-
333652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433652-01A10 PROTECTOR (40X20X3)PROTECTOR (40X20X3)
-
533652-41B00 PROTECTOR (27X80X3)PROTECTOR (27X80X3)
-
633810-21G00 WIRE, STARTER MOTOR (INC 7)WIRE, STARTER MOTOR (INC 7)
-
731861-48B10 CAP, STARTER MOTORCAP, STARTER MOTOR
-
833820-21G00 WIRE, BATTERY PLUS (INC 9)WIRE, BATTERY PLUS (INC 9)
-
933624-10D00 CAP, BATTERY PLUSCAP, BATTERY PLUS
-
1033860-21G00 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
