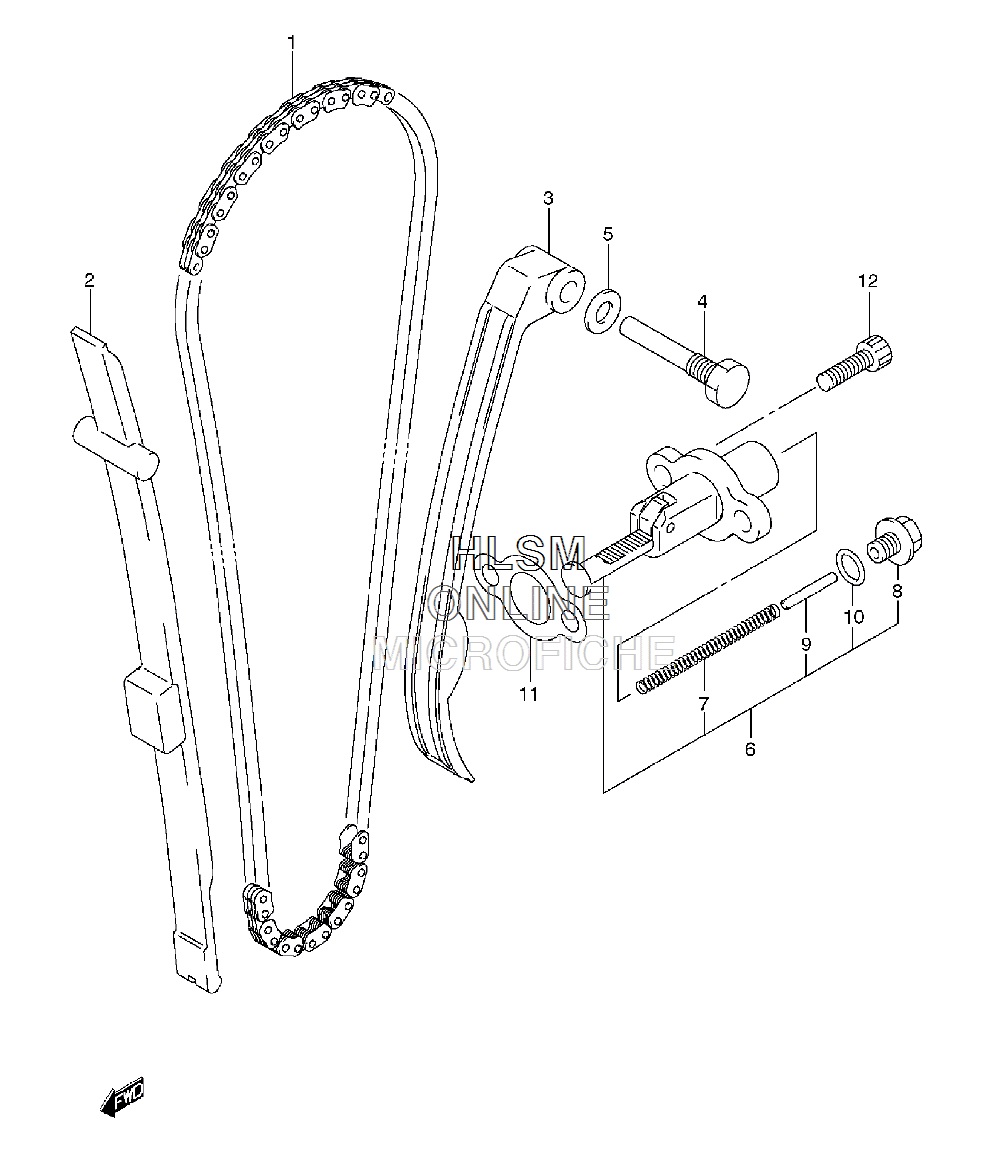

CAM CHAIN для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
112760-21G00 CHAIN, CAM (104LE)CHAIN, CAM (104LE)
-
212771-21G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-21G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLTBOLT
-
509168-08016 WASHERWASHER
-
612830-19B02 ADJUSTER ASSY, TENSIONER (INC 7-10)ADJUSTER ASSY, TENSIONER (INC 7-10)
-
712833-19B00 SPRINGSPRING
-
812834-19B00 PLUGPLUG
-
912835-19B00 BARBAR
-
1012832-02A00 O RINGO RING
-
1112837-19B10 GASKET, ADJUSTERGASKET, ADJUSTER
-
1207130-0620B BOLTBOLT
