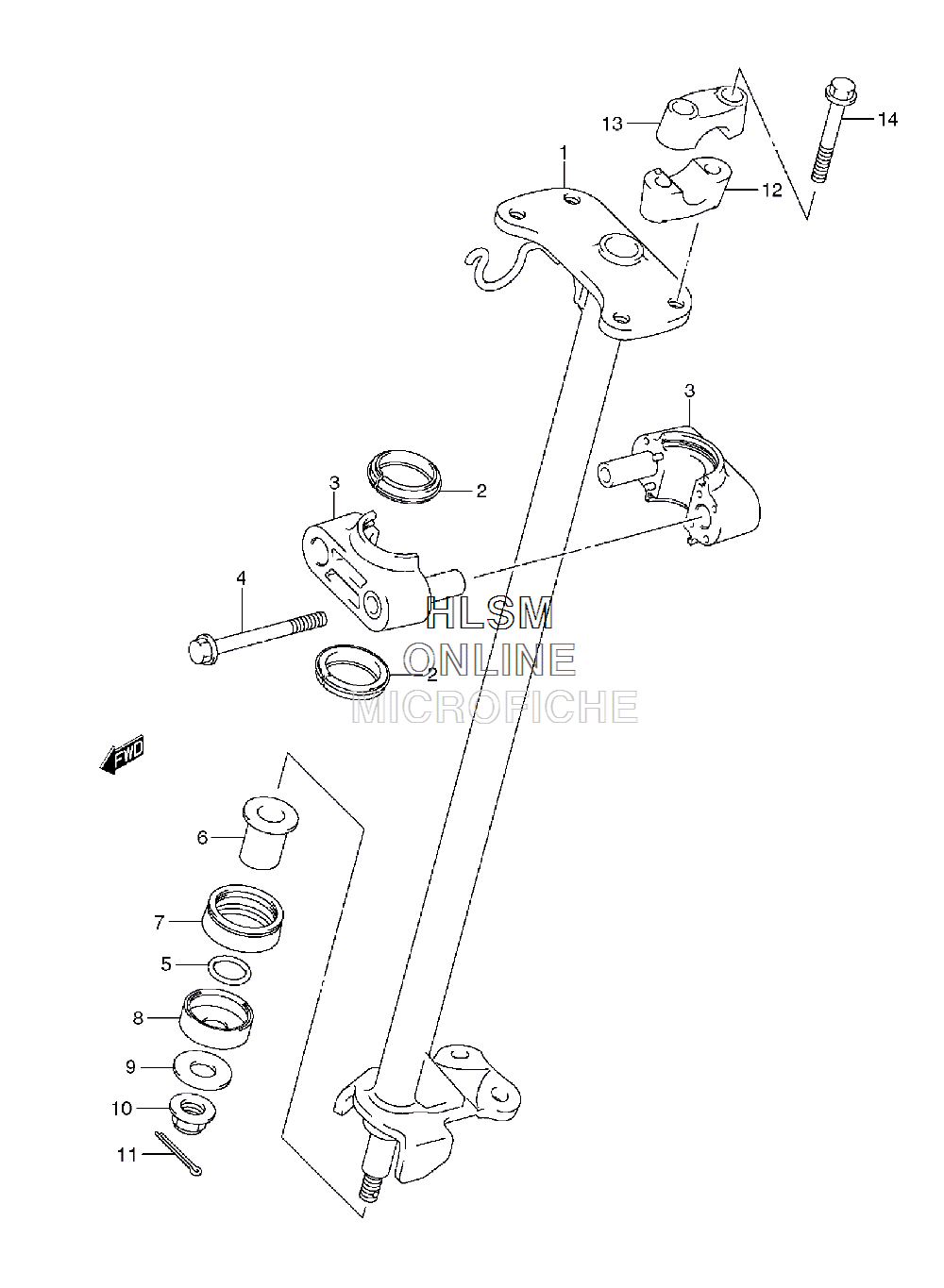

STEERING SHAFT для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
151650-21G00 SHAFT, STEERINGSHAFT, STEERING
-
251678-24500 DUST SEAL, STEERING HOLDER (27X38X8.5)DUST SEAL, STEERING HOLDER (27X38X8.5)
-
351670-24500 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
401550-0875A BOLTBOLT
-
509280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
651661-09F00 BUSH, STEERING SHAFT LOWER (17X26X36.9)BUSH, STEERING SHAFT LOWER (17X26X36.9)
-
751662-05G00 DUST SEAL, STEERING SHAFT (30X40X16)DUST SEAL, STEERING SHAFT (30X40X16)
-
851663-05G00 DUST SEAL, STEERING LOWER (12.2X38X12)DUST SEAL, STEERING LOWER (12.2X38X12)
-
909160-12073 WASHER (12.5X32X2.3)WASHER (12.5X32X2.3)
-
1008319-3112A NUTNUT
-
1104111-2020A COTTER PINCOTTER PIN
-
1256211-21G00-291 CLAMP, HANDLEBAR LOWER (BLACK)CLAMP, HANDLEBAR LOWER (BLACK)
-
1356211-27200-291 HOLDER, HANDLEBARHOLDER, HANDLEBAR
-
1401550-0855A BOLTBOLT
