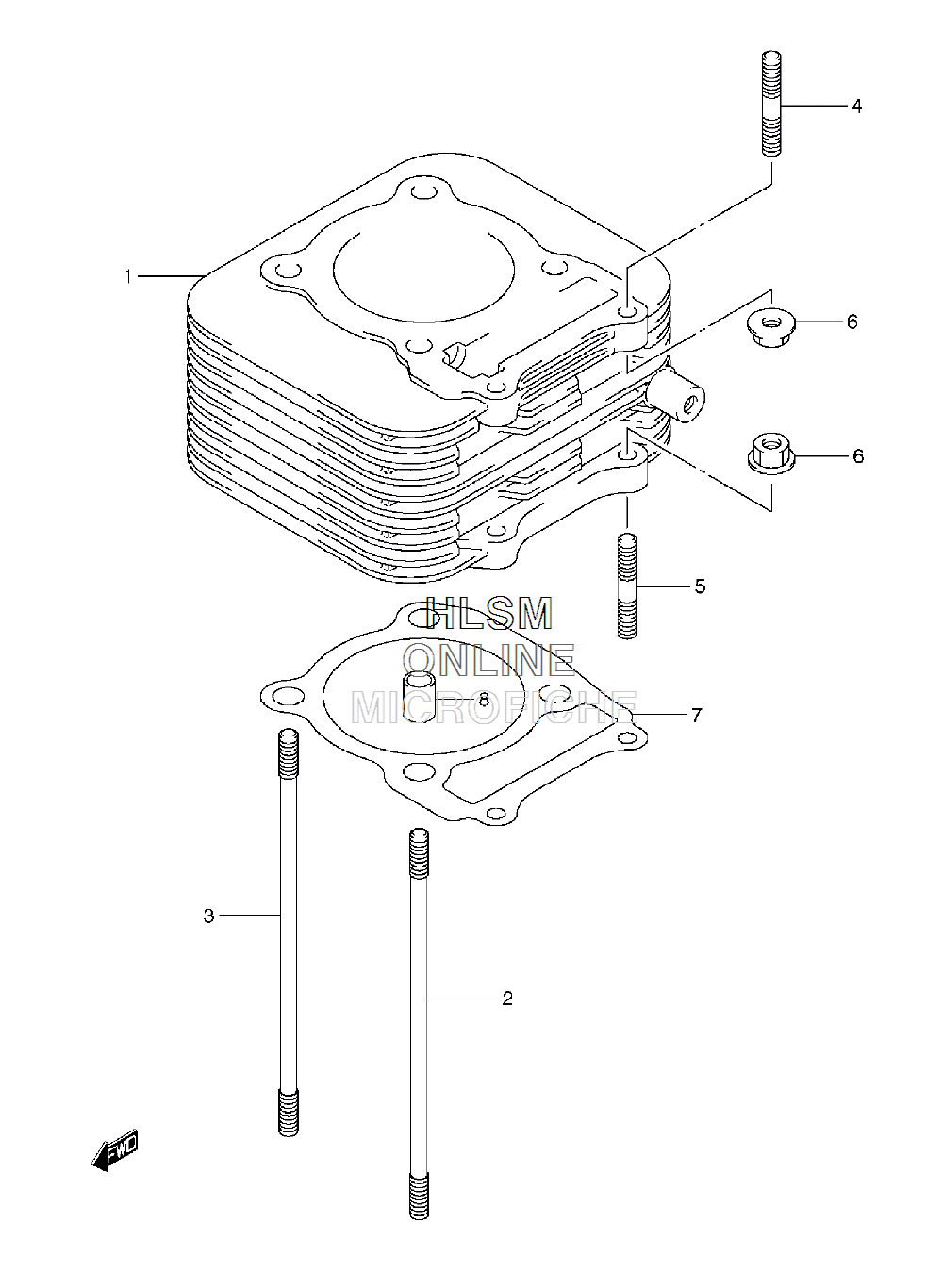

CYLINDER для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
111210-05G00-0F0 CYLINDERCYLINDER
-
209108-08195 STUD BOLT (L:160)STUD BOLT (L:160)
-
309108-08184 STUD BOLT (L:167)STUD BOLT (L:167)
-
401421-0625B STUD BOLTSTUD BOLT
-
501421-0625B STUD BOLTSTUD BOLT
-
608316-1006B NUTNUT
-
711241-18A20 GASKET, CYLINDERGASKET, CYLINDER
-
804211-11149 PINPIN
