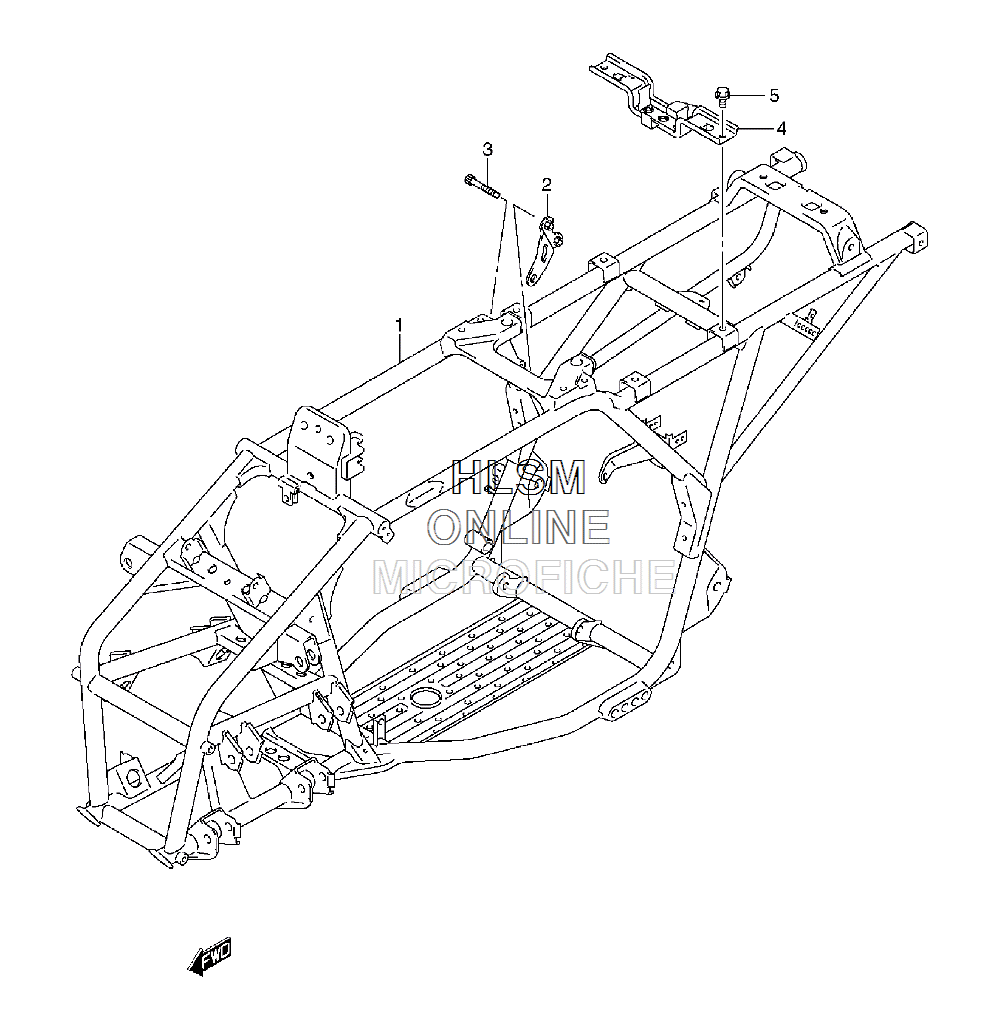

FRAME для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
141100-21G20-YBA FRAME (BLUE)FRAME (BLUE)
-
241980-05G00 PLATE, ENGINE MOUNT REAR RIGHT HANDPLATE, ENGINE MOUNT REAR RIGHT HAND
-
307130-0850A BOLTBOLT
-
441560-21G00 PLATE, BATTERYPLATE, BATTERY
-
501550-0816A BOLTBOLT
