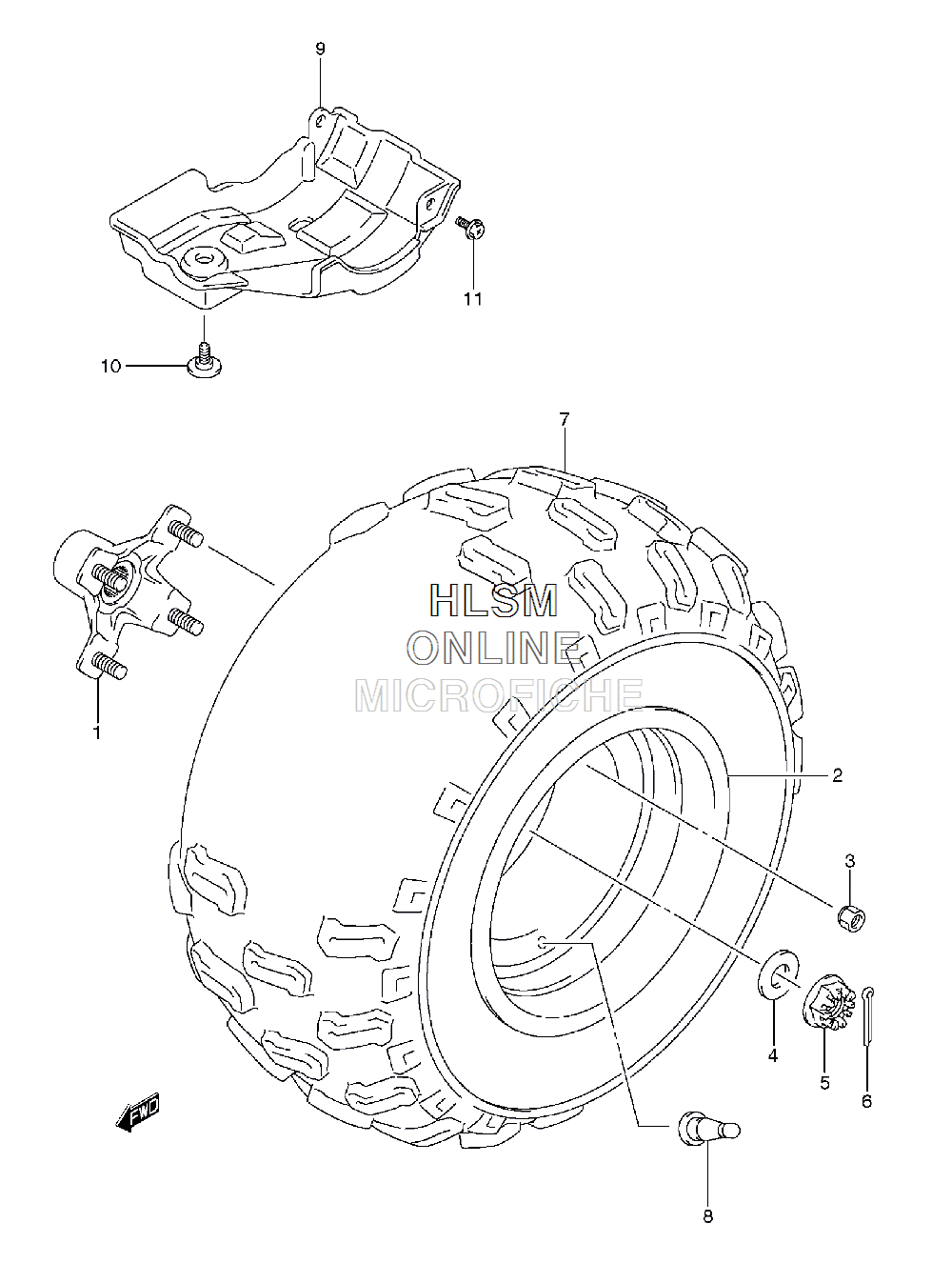

WHEEL - LEFT REAR для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
164110-21G20-019 HUB, REAR WHEEL LEFT HANDHUB, REAR WHEEL LEFT HAND
-
265310-07G10 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
309159-10114 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18010 NUT, HUBNUT, HUB
-
604111-4040A COTTER PINCOTTER PIN
-
765110-21G10 TIRE, REARTIRE, REAR
-
843130-24A00 VALVE ASSY, WHEEL RIM, TR412VALVE ASSY, WHEEL RIM, TR412
-
961391-05G01 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1061393-09F00 BOLT, FRONTBOLT, FRONT
-
1109111-06095 BOLT, REARBOLT, REAR
