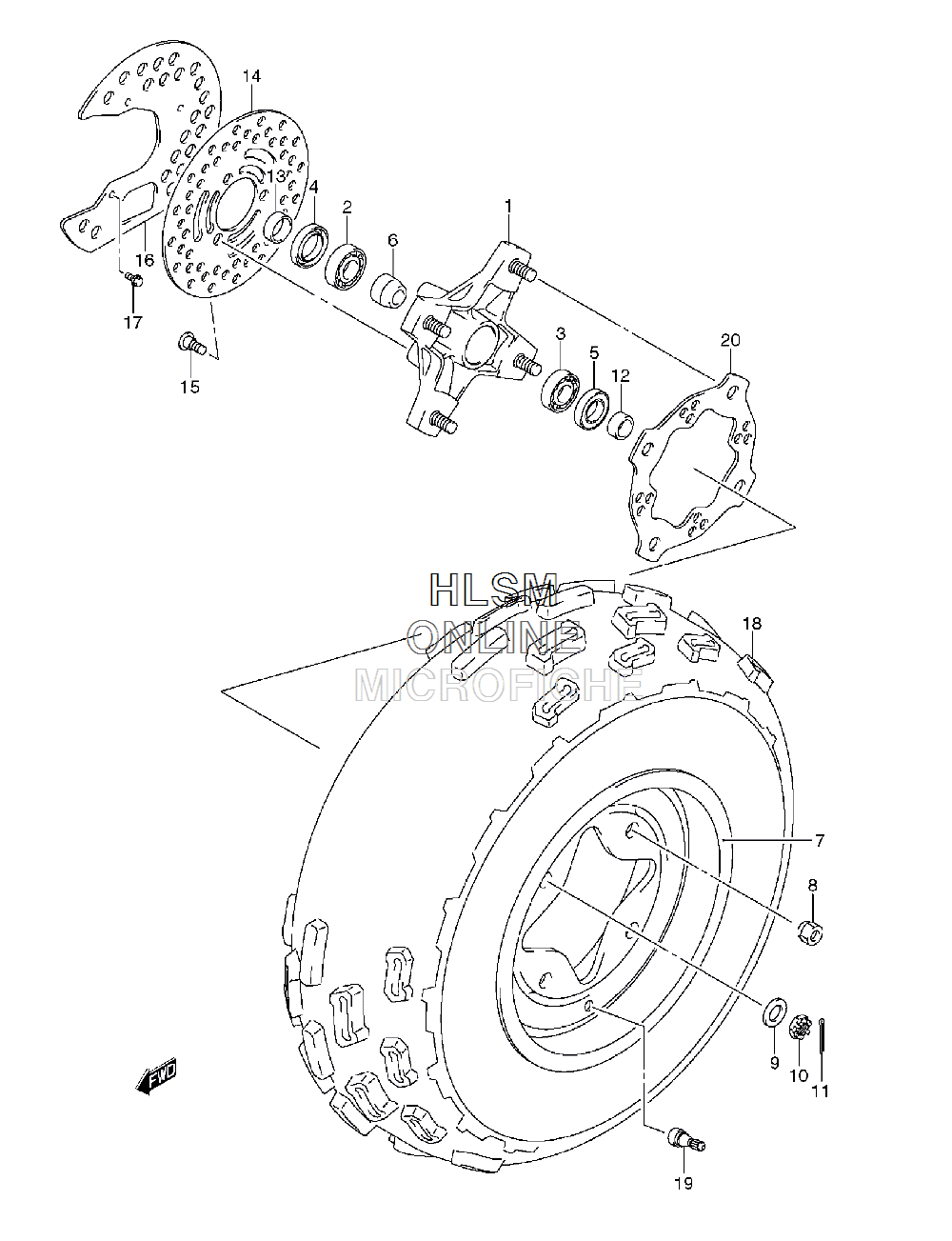

WHEEL - FRONT для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
154110-07G00-019 HUB, FRONT WHEELHUB, FRONT WHEEL
-
208120-60047 BEARING, FRONT HUB INNERBEARING, FRONT HUB INNER
-
309262-15024 BEARING, FRONT HUB OUTERBEARING, FRONT HUB OUTER
-
409284-26002 DUST SEAL INNERDUST SEAL INNER
-
509284-21001 DUST SEAL OUTERDUST SEAL OUTER
-
654731-07G01 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
755310-07G10 RIM, FRONT WHEEL (10X5.5AT)RIM, FRONT WHEEL (10X5.5AT)
-
809159-10114 NUTNUT
-
909160-15052 WASHERWASHER
-
1008314-4014A NUT, HUBNUT, HUB
-
1104111-3025A PIN, COTTERPIN, COTTER
-
1209180-15068 SPACER, FRONT AXLESPACER, FRONT AXLE
-
1309180-20119 SPACER, FR AXLE NO.2SPACER, FR AXLE NO.2
-
1459211-07G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1509106-08160 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
1659231-07G20 COVER, FRONT DISCCOVER, FRONT DISC
-
1709103-06285 BOLTBOLT
-
1855110-21G10 TIRE, FRONTTIRE, FRONT
-
1943130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2054138-07G10 PLATE, FRONT HUBPLATE, FRONT HUB
