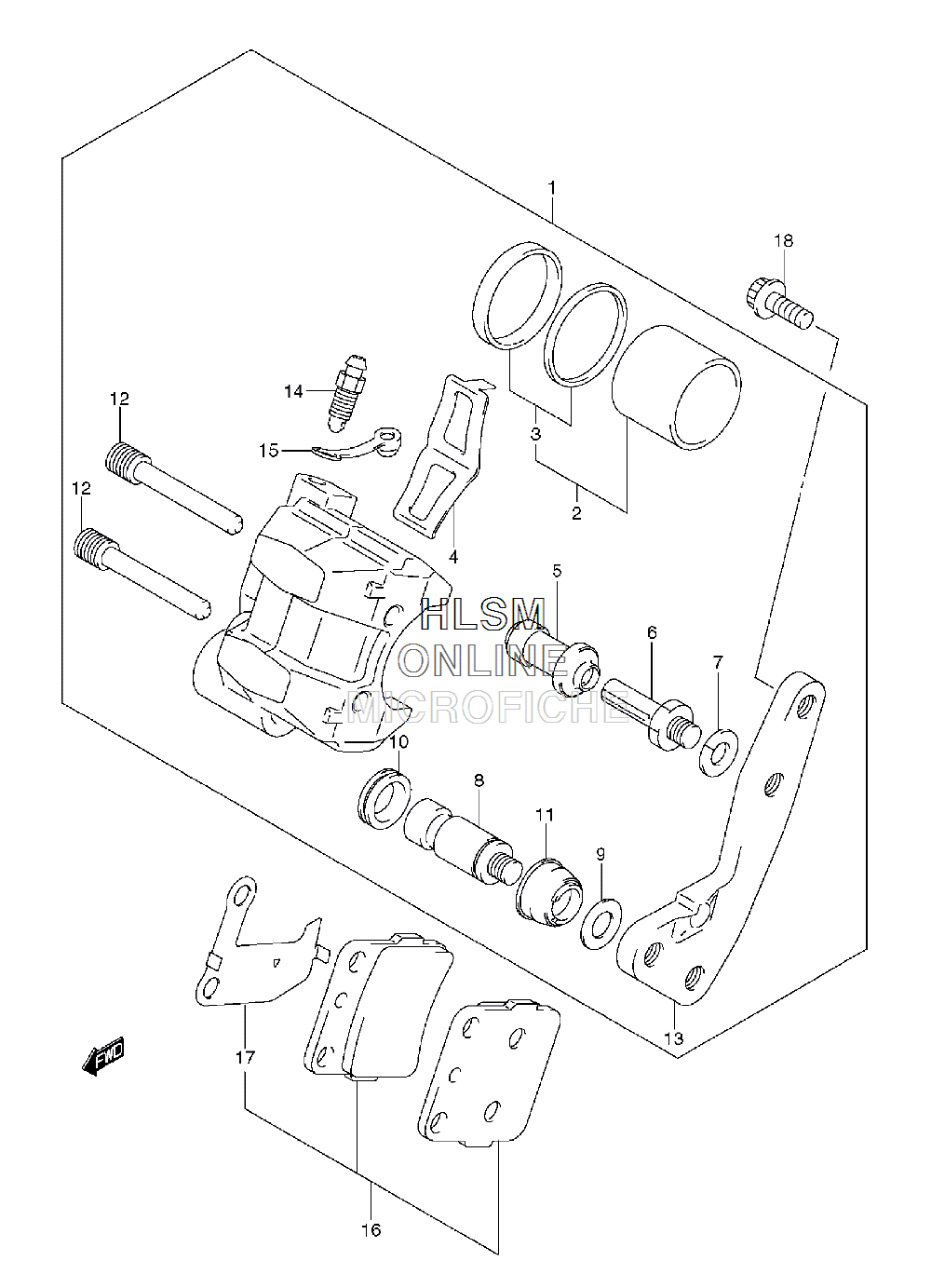

BRAKE - FRONT CALIPER для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
159100-38F30-999 CALIPER ASSY, FRONT RIGHT HAND (INC 2-15)CALIPER ASSY, FRONT RIGHT HAND (INC 2-15)
-
159300-38F30-999 CALIPER ASSY, FRONT LEFT HAND (INC 2-15)CALIPER ASSY, FRONT LEFT HAND (INC 2-15)
-
259100-38850 PISTON SETPISTON SET
-
359100-38860 SEAL SET, PISTONSEAL SET, PISTON
-
459315-13A00 SPRING, PADSPRING, PAD
-
559386-13A00 BOOTBOOT
-
659382-13A00 PINPIN
-
759314-13A00 WASHERWASHER
-
859105-38F00 PIN, SLIDEPIN, SLIDE
-
959306-13A00 SPRINGSPRING
-
1059384-13A00 PLUG, DUSTPLUG, DUST
-
1159303-13A00 BOOTBOOT
-
1259345-00B20 PINPIN
-
1359151-38F00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1359351-38F00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
1459121-01A00 BLEEDERBLEEDER
-
1559122-01A00 CAPCAP
-
1659300-42860 PAD AND SHIM SET, R (INC 17)PAD AND SHIM SET, R (INC 17)
-
1659300-42870 PAD AND SHIM SET, L (INC 17)PAD AND SHIM SET, L (INC 17)
-
1759371-13A00 SHIM, RIGHT HANDSHIM, RIGHT HAND
-
1769372-00B20 SHIM, LEFT HANDSHIM, LEFT HAND
-
1809106-08174 BOLTBOLT
