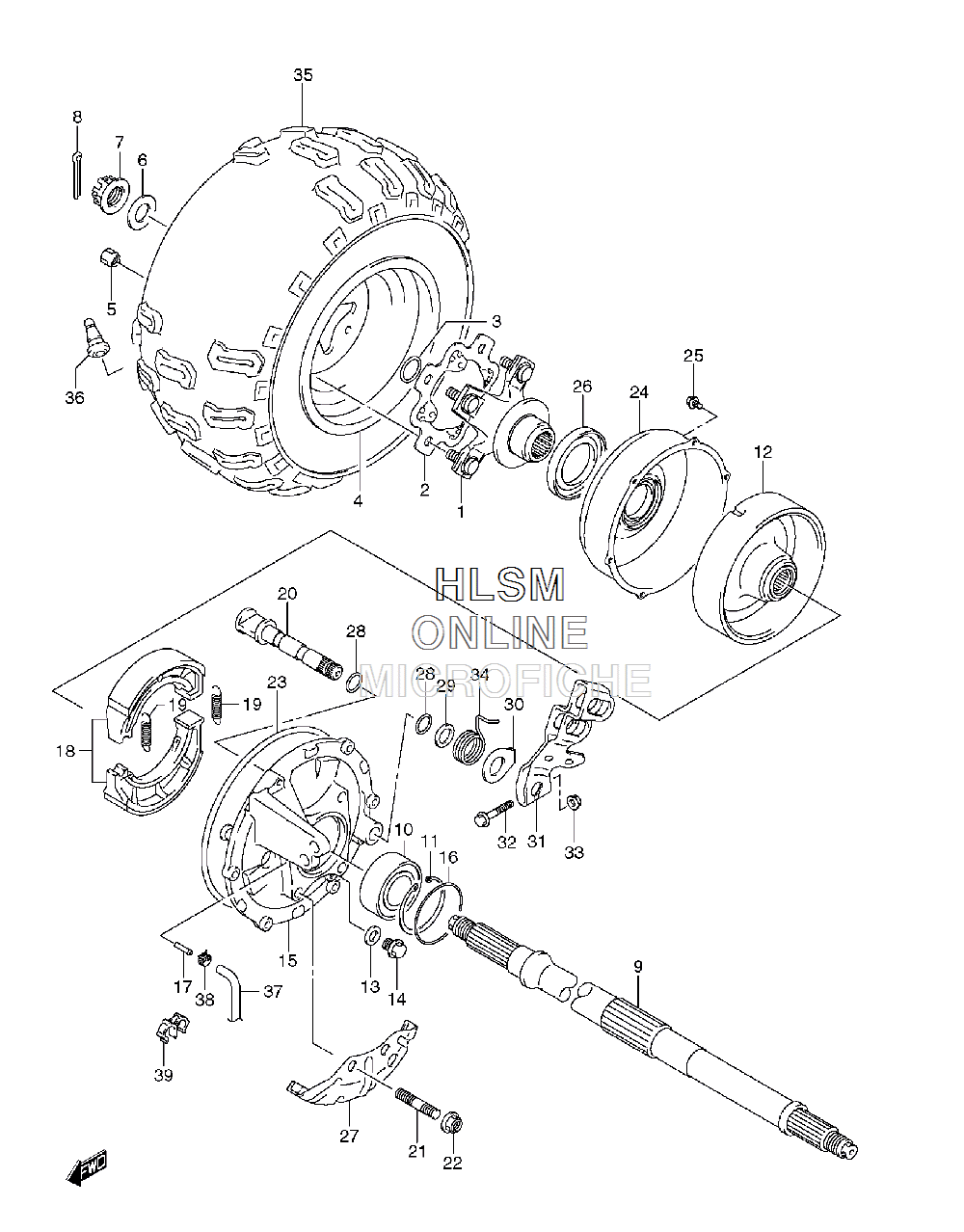

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
164110-21G30-019 HUB, REAR WHEEL RIGHT HANDHUB, REAR WHEEL RIGHT HAND
-
264138-21G00 PLATE, REAR HUB, RPLATE, REAR HUB, R
-
309280-24001 O RING, REAR HUB DUSTO RING, REAR HUB DUST
-
465310-07G10 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
509159-10114 NUTNUT
-
609164-18004 WASHERWASHER
-
709141-18010 NUT, HUBNUT, HUB
-
804111-4035A COTTER PINCOTTER PIN
-
964711-21G00 AXLE, REARAXLE, REAR
-
1009267-30013 BEARING, REAR AXLE RIGHT HANDBEARING, REAR AXLE RIGHT HAND
-
1108331-4162A CIRCLIPCIRCLIP
-
1264120-05G10 DRUM, BRAKEDRUM, BRAKE
-
1309161-10007 WASHER, DRAIN PLUGWASHER, DRAIN PLUG
-
1409247-10008 PLUG, DRAINPLUG, DRAIN
-
1564210-05G01 PANEL, BRAKE ANCHORPANEL, BRAKE ANCHOR
-
1609280-68008 O RING, PANELO RING, PANEL
-
1709364-04004 UNION, PANELUNION, PANEL
-
1864400-05820 SHOE SET, BRAKESHOE SET, BRAKE
-
1955421-20E00 SPRING, SHOESPRING, SHOE
-
2064440-05G01 CAM, REAR BRAKECAM, REAR BRAKE
-
2109108-10089 BOLT, PANELBOLT, PANEL
-
2209159-10115 NUT, PANELNUT, PANEL
-
2309280-00039 O RING, PANELO RING, PANEL
-
2464123-05G00 COVER, REAR BRAKECOVER, REAR BRAKE
-
2501547-0612A BOLTBOLT
-
2664124-05G00 DUST SEAL, DRUM COVERDUST SEAL, DRUM COVER
-
2764280-21G00 GUARD, RR BRAKE DRUMGUARD, RR BRAKE DRUM
-
2809280-14004 O RING, CAMO RING, CAM
-
2909160-14055 WASHERWASHER
-
3064492-21G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
3164451-05G00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
3201550-0635A BOLTBOLT
-
3308316-1006A NUTNUT
-
3464484-05G00 SPRING, CAM LEVERSPRING, CAM LEVER
-
3565110-21G10 TIRE, REARTIRE, REAR
-
3643130-24A00 VALVE ASSY, WHEEL RIM, TR412VALVE ASSY, WHEEL RIM, TR412
-
3709352-40703-00B HOSE, BREATHERHOSE, BREATHER
-
3809401-06405 CLIP, HOSECLIP, HOSE
-
3909408-00200 CLIP, HOSE AND CABLECLIP, HOSE AND CABLE
