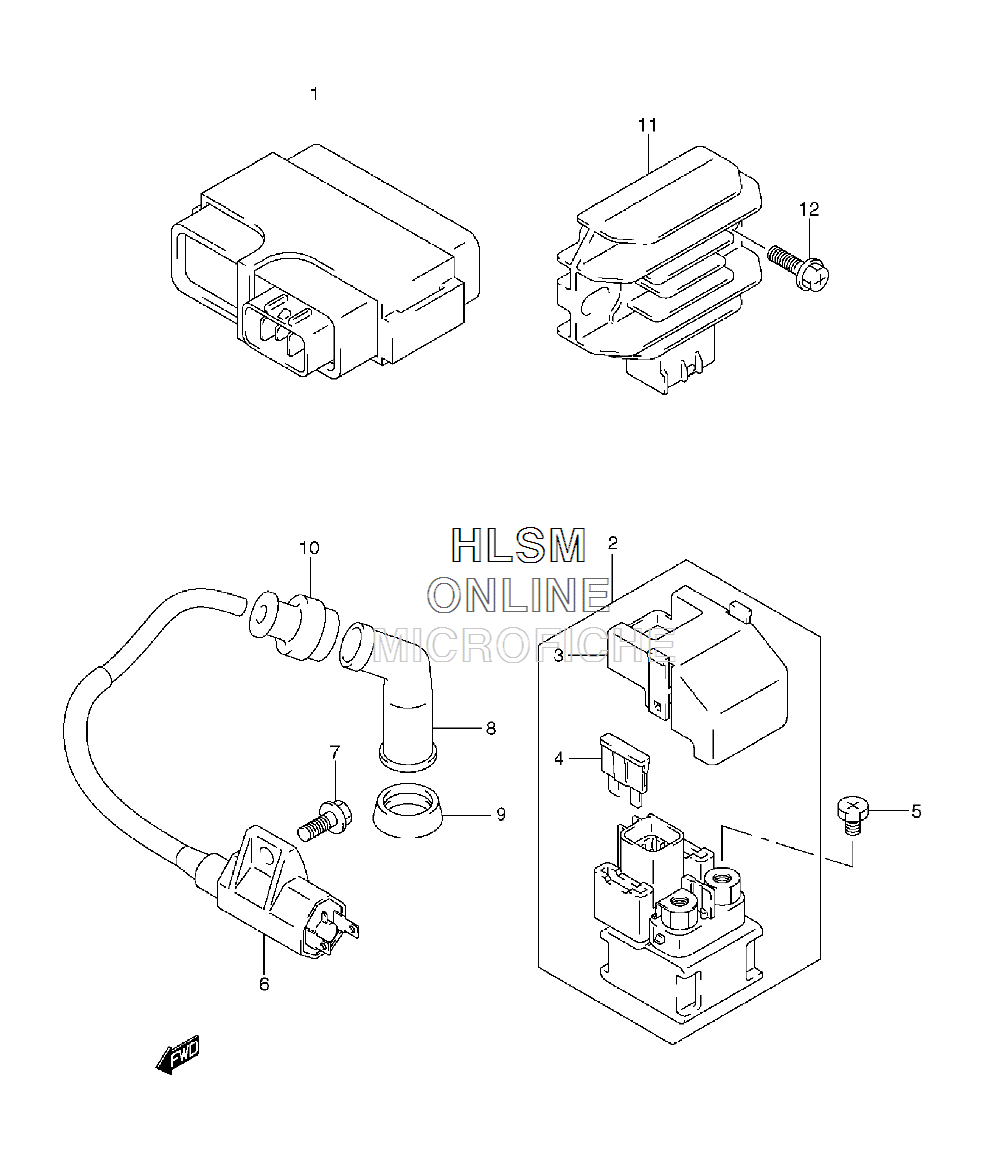

ELECTRICAL для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
132900-05G40 C.D.I UNITC.D.I UNIT
-
231800-47E00 RELAY, STARTING MOTOR (INC 3-4)RELAY, STARTING MOTOR (INC 3-4)
-
331861-47E00 COVERCOVER
-
409481-20102 FUSE (20A)FUSE (20A)
-
509128-06013 SCREW (6X8)SCREW (6X8)
-
633410-05G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
701550-0616B BOLTBOLT
-
833510-43010 CAP, SPARK PLUGCAP, SPARK PLUG
-
933541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1033542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1132800-05F20 RECTIFIER ASSYRECTIFIER ASSY
-
1202162-0625B BOLTBOLT
