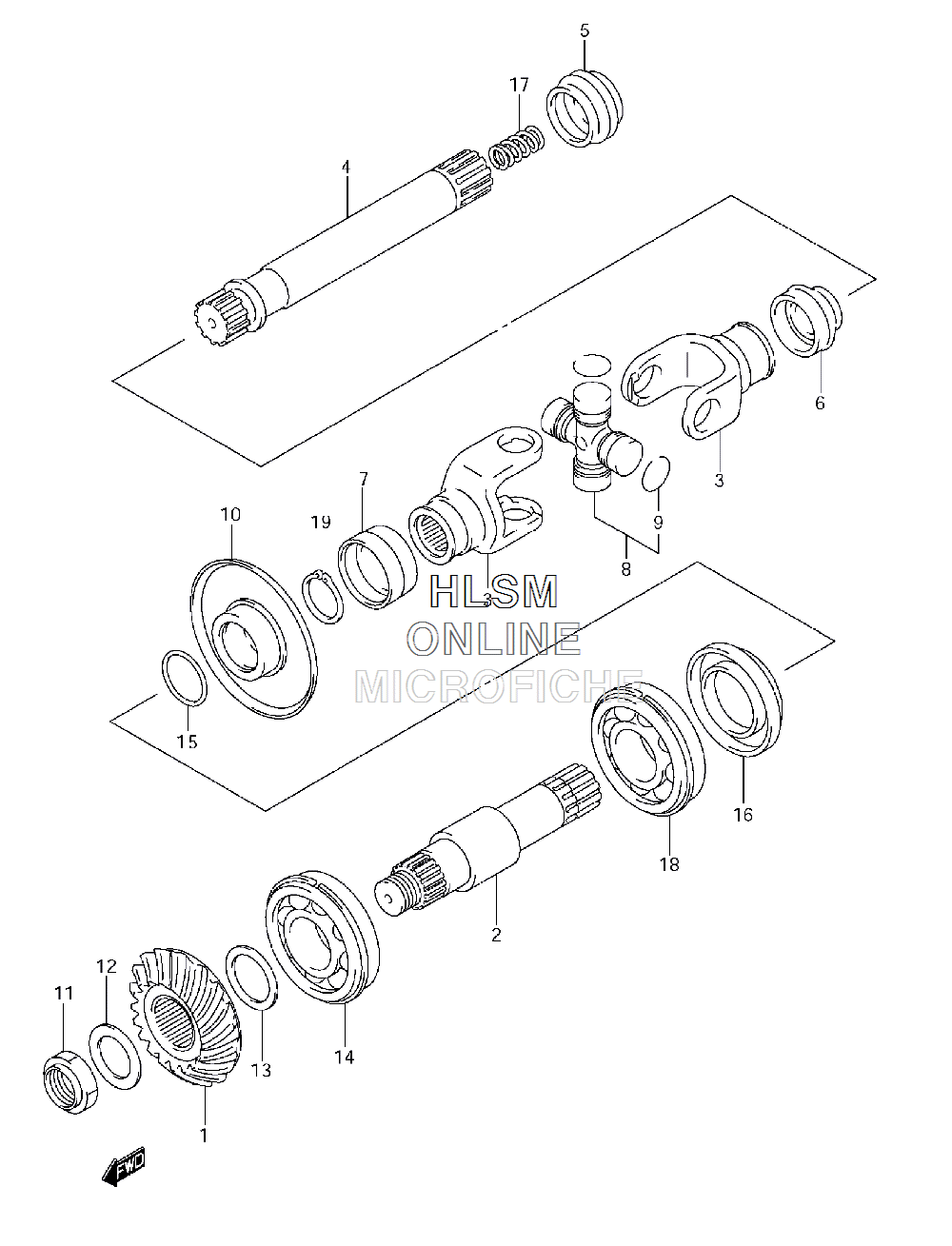

DRIVESHAFT - REAR для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска

№

Артикул

Название
1

24921-21G00 GEAR, SEC DRIVEN BEVEL (NT:17)

GEAR, SEC DRIVEN BEVEL (NT:17)

0 ₽
2

24971-05G00 SHAFT, SEC DRIVEN OUTPUT RR

SHAFT, SEC DRIVEN OUTPUT RR

33 940 ₽
3

27140-03G00 YOKE, REAR DRIVE OUTPUT

YOKE, REAR DRIVE OUTPUT

21 360 ₽
4

27151-05G10 SHAFT, PROPELLER

SHAFT, PROPELLER

21 130 ₽
5

27153-03G00 BOOT, PROPELLER SHAFT

BOOT, PROPELLER SHAFT

1 900 ₽
6

27153-05G00 BOOT, PROPELLER SHAFT

BOOT, PROPELLER SHAFT

730 ₽
7

27153-05G10 BOOT, REAR OUTPUT JOINT

BOOT, REAR OUTPUT JOINT

730 ₽
8

27200-19810 JOINT SET, UNIVERSAL RR (INC 9)

JOINT SET, UNIVERSAL RR (INC 9)

14 850 ₽
9

09380-20016 CIRCLIP

CIRCLIP

400 ₽
10

27590-05G00 COLLAR, OUTPUT OIL SEAL

COLLAR, OUTPUT OIL SEAL

9 250 ₽
11

09140-20012 NUT, SEC DRIVEN

NUT, SEC DRIVEN

610 ₽
12

09181-20223 WASHER, SEC DRIVEN

WASHER, SEC DRIVEN

480 ₽
13

24945-03811 SHIM, SET, SEC DRIVEN GEAR

SHIM, SET, SEC DRIVEN GEAR

15 950 ₽
14

09262-25135 BEARING, SECONDARY RR

BEARING, SECONDARY RR

6 720 ₽
15

09280-25005 O RING (D:1.9,ID:24.5)

O RING (D:1.9,ID:24.5)

370 ₽
16

09283-35008 SEAL, OIL (35X62X10)

SEAL, OIL (35X62X10)

2 420 ₽
17

09440-12038 SPRING, PROPELLER SHAFT

SPRING, PROPELLER SHAFT

730 ₽
18

08173-63050 BEARING, SECONDARY RR

BEARING, SECONDARY RR

5 400 ₽
19

08331-3124A CIRCLIP, OUTPUT SHAFT

CIRCLIP, OUTPUT SHAFT

350 ₽
