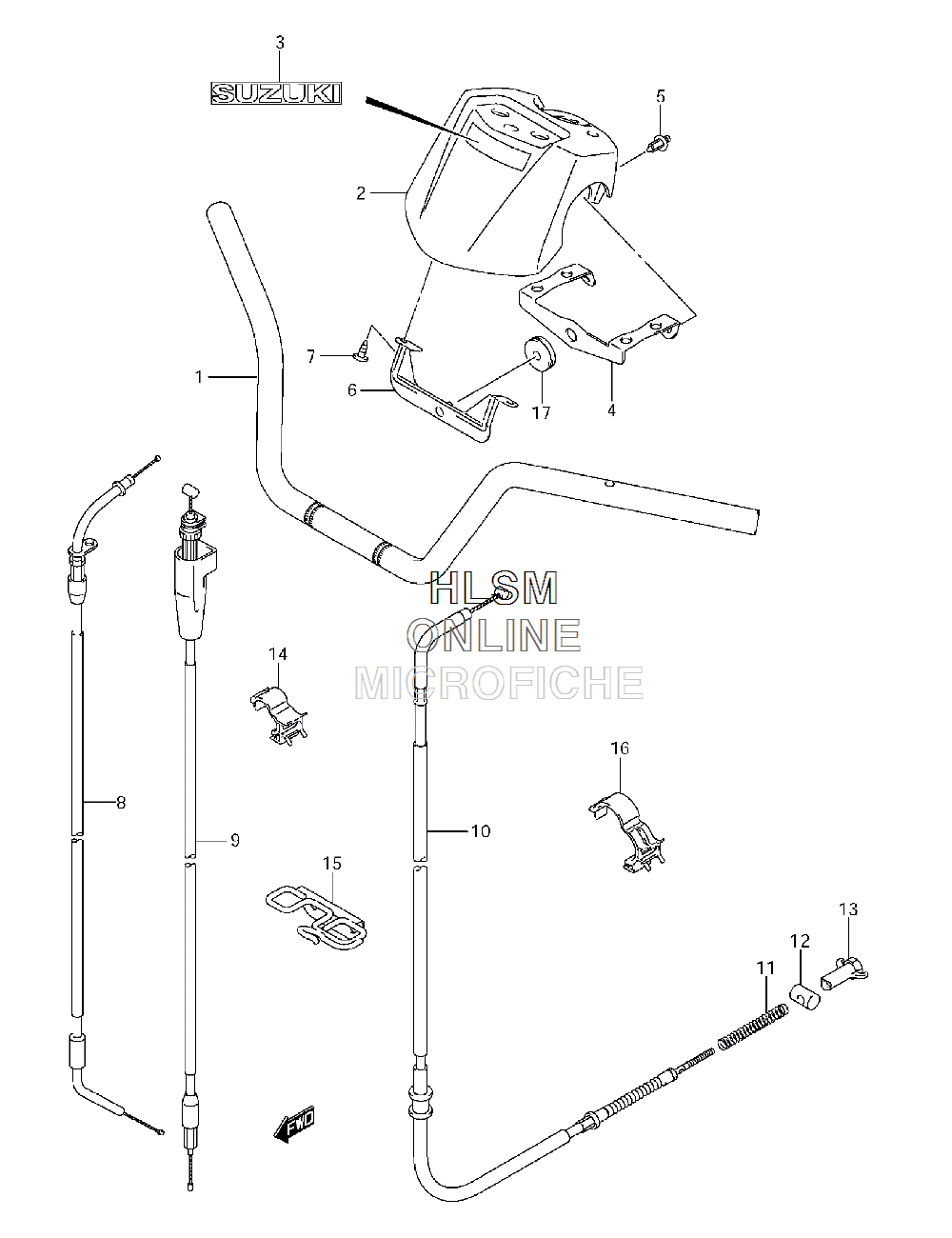

HANDLEBAR W/ CABLES для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
156111-21G00 HANDLE BARHANDLE BAR
-
256170-05G01-8YM COVER, HEAD (WHITE) (INC 3)COVER, HEAD (WHITE) (INC 3)
-
256170-05G01-GY8 COVER, HEAD (YELLOW) (INC 3)COVER, HEAD (YELLOW) (INC 3)
-
368721-05D00-BJB EMBLEM (FOR YELLOW)EMBLEM (FOR YELLOW)
-
368721-05D00-GY8 EMBLEM (FOR WHITE)EMBLEM (FOR WHITE)
-
456411-21G00 BRACKET, COVER RIGHT HANDBRACKET, COVER RIGHT HAND
-
509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
656180-05G00 BRACKET, HEAD COVERBRACKET, HEAD COVER
-
703541-0512B SCREWSCREW
-
858300-21G20 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
958410-21G00 CABLE, STARTERCABLE, STARTER
-
1058810-21G01 CABLE, PARKING BRAKECABLE, PARKING BRAKE
-
1109440-08042 SPRINGSPRING
-
1209209-13006 PINPIN
-
1309150-06015 NUTNUT
-
1409403-10405 CLAMPCLAMP
-
1558620-21G00 GUIDE, CABLEGUIDE, CABLE
-
1609403-20403 CLAMPCLAMP
-
1709320-08018 CUSHION, BRACKETCUSHION, BRACKET
