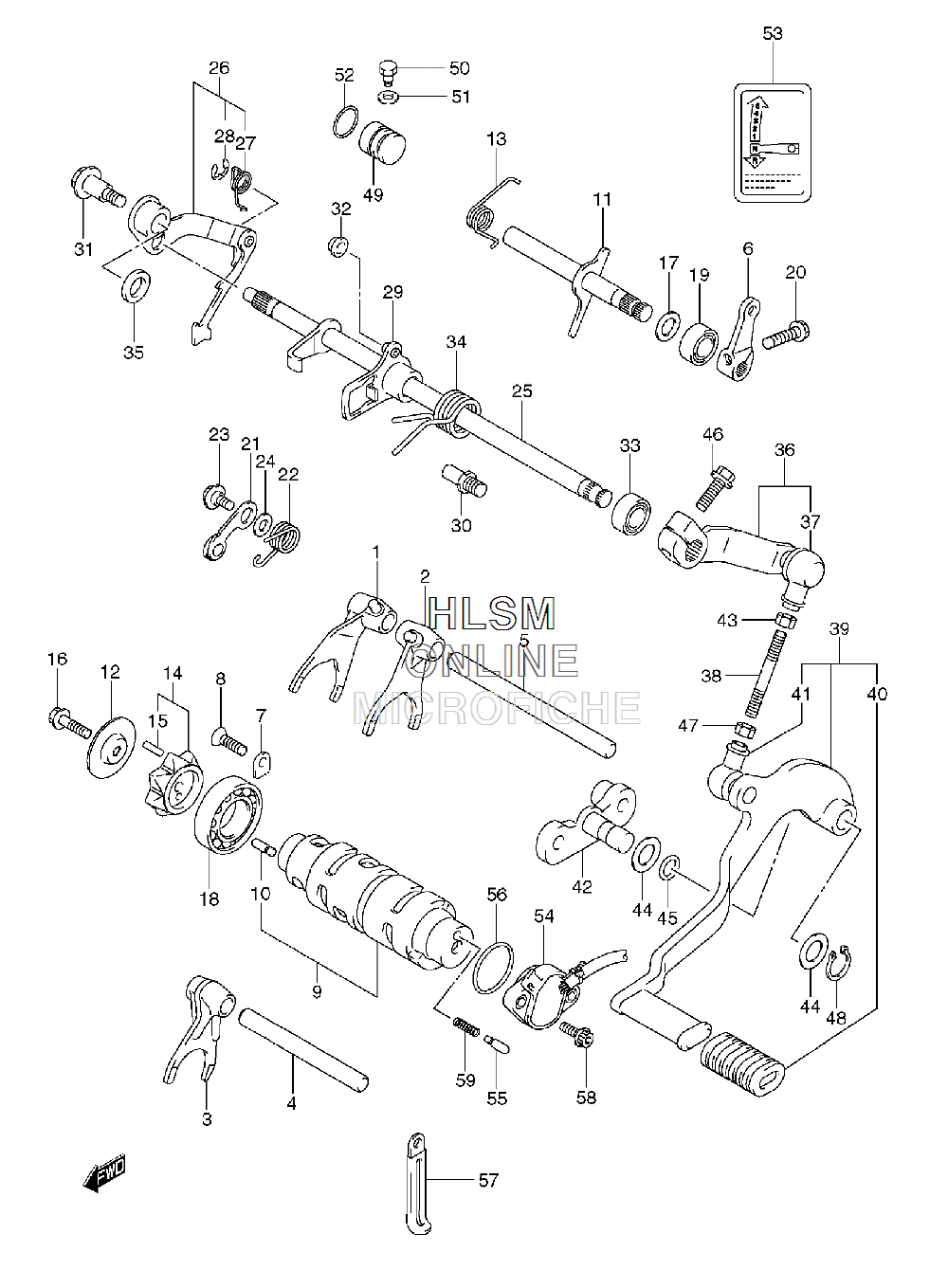

GEAR SHIFTING для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
125211-05G00 FORK, GEAR SHIFTING, NO.1FORK, GEAR SHIFTING, NO.1
-
225221-05G00 FORK, GEAR SHIFTING, NO.2FORK, GEAR SHIFTING, NO.2
-
325231-19B00 FORK, GEAR SHIFTING, NO.3FORK, GEAR SHIFTING, NO.3
-
425411-14331 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
525411-24501 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
623271-49100 ARM, SHIFT CAM LOCKARM, SHIFT CAM LOCK
-
724741-20A00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
809126-06011 SCREW, CAM BEARING (6X12)SCREW, CAM BEARING (6X12)
-
925310-05G01 CAM, GEAR SHIFT (INC 10)CAM, GEAR SHIFT (INC 10)
-
1004221-04089 PINPIN
-
1125320-05G02 SHAFT, SHIFT CAM LOCKSHAFT, SHIFT CAM LOCK
-
1225322-05G00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
1325328-05G00 SPRING, SHIFT CAM LOCKSPRING, SHIFT CAM LOCK
-
1425380-05G00 PLATE, GEAR SHIFT CAM (INC 15)PLATE, GEAR SHIFT CAM (INC 15)
-
1509261-04002 PIN, STOPPERPIN, STOPPER
-
1609103-06084 BOLT, SHIFT CAM (6X25)BOLT, SHIFT CAM (6X25)
-
1709181-12167 WASHER, SHIFT CAM (12X20X1.0)WASHER, SHIFT CAM (12X20X1.0)
-
1809262-25006 BEARING, GEAR SHIFT (25X47X8)BEARING, GEAR SHIFT (25X47X8)
-
1909285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2001550-0620B BOLT, SHIFT CAMBOLT, SHIFT CAM
-
2125350-24B00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2225355-05G00 SPRING, GEAR SHIFT CAMSPRING, GEAR SHIFT CAM
-
2309111-06041 BOLT, GEAR SHIFT (6X14.3)BOLT, GEAR SHIFT (6X14.3)
-
2408211-06141 WASHERWASHER
-
2525510-05G20 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2625520-05G00 ARM, GEAR SHIFT NO.2 (INC 27-28)ARM, GEAR SHIFT NO.2 (INC 27-28)
-
2725527-05G00 SPRINGSPRING
-
2808332-1107A E RINGE RING
-
2925540-05G20 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
3025671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
3109103-08193 BOLT, GEAR SHIFTBOLT, GEAR SHIFT
-
3209180-07014 ROLLER, GEAR SHIFTROLLER, GEAR SHIFT
-
3309283-14006 OIL SEAL (14X22X6)OIL SEAL (14X22X6)
-
3409444-26025 SPRINGSPRING
-
3508211-08201 WASHERWASHER
-
3625520-21G00 ARM, GEAR SHIFT LINK (INC 37)ARM, GEAR SHIFT LINK (INC 37)
-
3725526-47000 COVER DUSTCOVER DUST
-
3825525-12C10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3925600-21G10 LEVER ASSY, GEAR SHIFT (INC 40-41)LEVER ASSY, GEAR SHIFT (INC 40-41)
-
4025652-49300 RUBBERRUBBER
-
4125526-47000 COVER DUSTCOVER DUST
-
4225670-05G30 PLATE, SHIFT SUPPORTPLATE, SHIFT SUPPORT
-
4309140-06025 NUTNUT
-
4409160-13010 WASHER (13X20X1.0)WASHER (13X20X1.0)
-
4509280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
4601550-0620B BOLTBOLT
-
4708310-00067 NUTNUT
-
4808331-3113A CIRCLIP, GEAR SHIFT LEVERCIRCLIP, GEAR SHIFT LEVER
-
4926442-21G00 PLUG, SPDOM HOLEPLUG, SPDOM HOLE
-
5009135-06013 BOLT, SPDOM (6X10)BOLT, SPDOM (6X10)
-
5109168-06004 WASHER, SPDOM (6.2X11X1.2)WASHER, SPDOM (6.2X11X1.2)
-
5209280-17004 O RING (D:1.9,ID:16.6)O RING (D:1.9,ID:16.6)
-
5368392-05G00 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
-
5368392-05G10 LABEL, GEAR SHIFT PATTERN (CANADA ONLY)LABEL, GEAR SHIFT PATTERN (CANADA ONLY)
-
5437720-21G00 BASE ASSY, GEAR SHIFTBASE ASSY, GEAR SHIFT
-
5509209-05011 CONTACTCONTACT
-
5609280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
5709404-06433 CLAMP (L:80)CLAMP (L:80)
-
5807120-0516A BOLTBOLT
-
5909440-04010 SPRING, GEAR SHIFTSPRING, GEAR SHIFT
