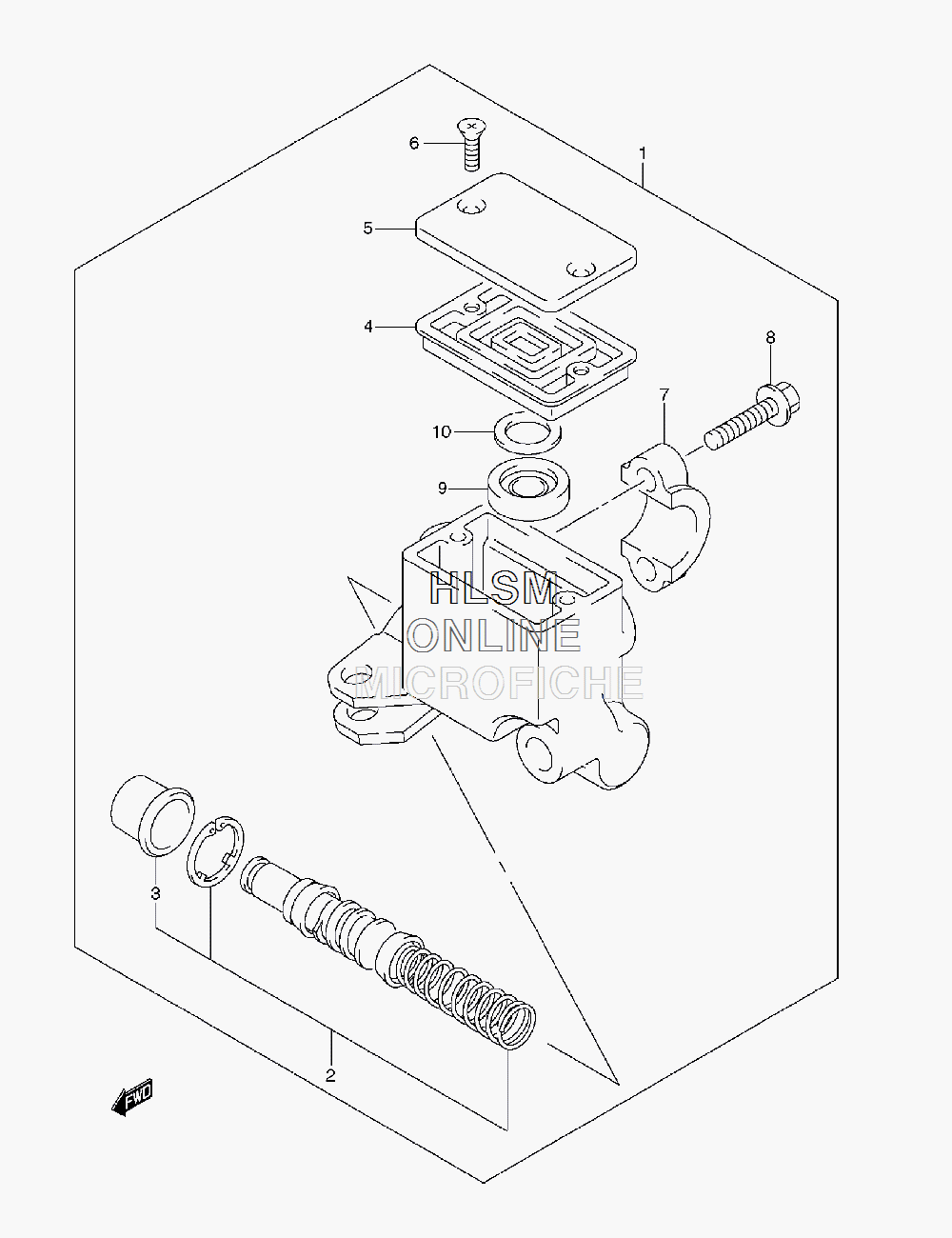

BRAKE - FRONT MASTER CYLINDER для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска
-
№АртикулНазвание
-
159600-31D40 CYLINDER ASSY, FRONT MASTER (INC 2-10)CYLINDER ASSY, FRONT MASTER (INC 2-10)
-
259600-04810 PISTON/CUP SETPISTON/CUP SET
-
359666-44300 BOOTBOOT
-
459667-44B00 DIAPHRAGMDIAPHRAGM
-
559669-05D00 CAPCAP
-
602122-0412A SCREW, CAPSCREW, CAP
-
759671-27C00 HOLDERHOLDER
-
859675-06F00 BOLTBOLT
-
959748-15400 SEPARATORSEPARATOR
-
1059749-15400 PLATEPLATE
